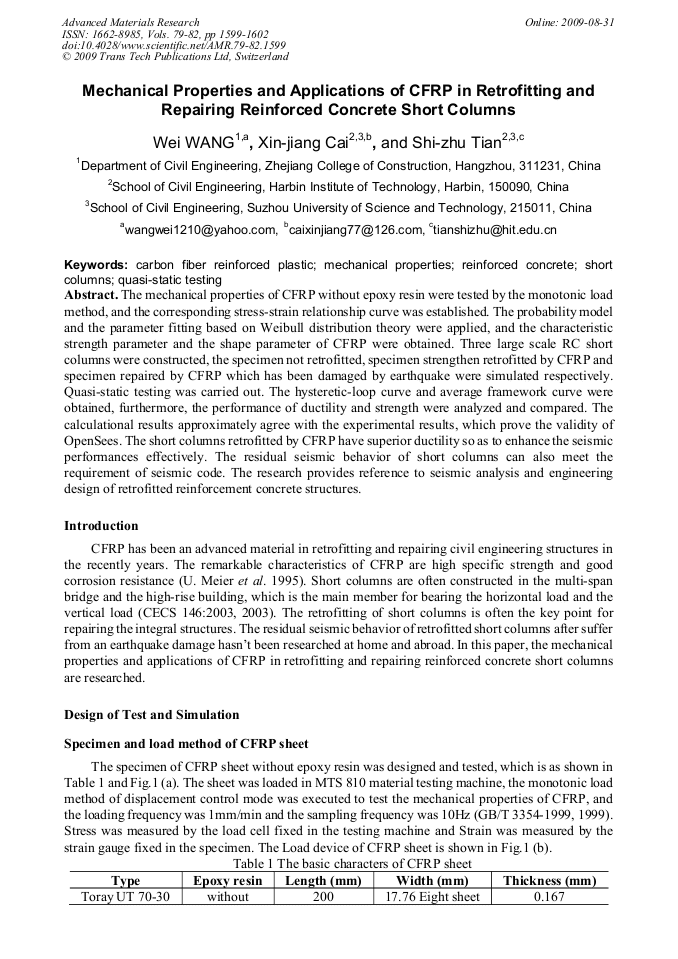

Mechanical Properties and Applications of CFRP in Retrofitting and Repairing Reinforced Concrete Short Columns

Abstract:

The mechanical properties of CFRP without epoxy resin were tested by the monotonic load method, and the corresponding stress-strain relationship curve was established. The probability model and the parameter fitting based on Weibull distribution theory were applied, and the characteristic strength parameter and the shape parameter of CFRP were obtained. Three large scale RC short columns were constructed, the specimen not retrofitted, specimen strengthen retrofitted by CFRP and specimen repaired by CFRP which has been damaged by earthquake were simulated respectively. Quasi-static testing was carried out. The hysteretic-loop curve and average framework curve were obtained, furthermore, the performance of ductility and strength were analyzed and compared. The calculational results approximately agree with the experimental results, which prove the validity of OpenSees. The short columns retrofitted by CFRP have superior ductility so as to enhance the seismic performances effectively. The residual seismic behavior of short columns can also meet the requirement of seismic code. The research provides reference to seismic analysis and engineering design of retrofitted reinforcement concrete structures.

• Periodical: Advanced Materials Research (Volumes 79-82)
• Pages: 1599-1602
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.79-82.1599
• Online since: August 2009
• Authors: Wei Wang, Xin Jiang Cai, Shi Zhu Tian
• Keywords: Carbon Fiber Reinforced Polymer/Plastic (CFRP), Mechanical Property, Quasi-Static Testing, Reinforced Concrete (RC), Short Column

References

[1] U. Meier and A. Winistorfer Retrofitting of Structures through External Bonding of CFRP sheet, Non-metallic (FRP) Reinforcement for Concrete Structures, Proceedings of the Second International RILEM Symposium, edited by L. Taerwe, Ghent, Belgium, 1995, pp.509-516.

DOI: 10.1201/9781482271621-67

[2] CECS 146: 2003. Technical Specification for Strengthening Concrete Structures with Carbon Fiber Reinforced Polymer Laminate [S], 2003. (In Chinese).

[3] W.A. Curtin. Fiber Fragmentation in a Single-Filament Composite, American Institute of Physics, 1991, pp.1155-1157.

[4] S.Y. Du and B. Wang. Micromechanics of Composite, Science Press, 1998. (In Chinese).

[5] GB/T 3354-1999, Test method for Tensile Properties of Oriented Fiber Reinforced Plastics [S], 1999. (In Chinese).

[6] JGJ 101-96. Specificating of Testing Methods for Earthquake Resistant Building [S], 1997. (In Chinese).

[7] W. Wang. Experimental Investigation on Seismic Performance of CFRP Retrofitted RC Short Columns with Circular Section [D], Harbin Institute of Technology, 2005. (In Chinese).

[8] W. Wang, K. Song and D.P. Wang. Experimental Investigation on Seismic Performance of CFRP Retrofitted RC Short Columns with Circular Section [J], World Earthquake Engineering, 2008, 24(4): 96-100. (In Chinese).
