Induction Heating Deposition of Calcium Phosphate Coating on Carbon/Carbon Composites for Biomedical Applications

Xin Bo Xiong; Xie Rong Zeng; Chun Li Zhou

doi:10.4028/www.scientific.net/AMR.79-82.903

Paper Titles

Synthesis of CdS Nanoparticle/Amphiphilic Block Copolymer Composite Films and its Characteristics of Microstructures and Optoelectronic Properties
p.887

Characterization and Annealing Effects of Titanium Dioxide Films Prepared by a Sol-Gel Process
p.891

Atomic Structure of Hydrous Ruthenium Oxide Coating on Ti and CNT Substrate by Cathodic Deposition Method
p.895

Characterization and Photocatalytic Activity of Composite La-TiO₂/ITO Thin-Film Electrodes
p.899

Induction Heating Deposition of Calcium Phosphate Coating on Carbon/Carbon Composites for Biomedical Applications
p.903

EBSD Study of Crystallographic Identification on Fe-Al-Si Intermetallic Phases in Aluminide Coatings on Mild Steels
p.907

Effect of Annealing on Magnetic Properties and Domain Structures of FePt Thin Films by Rapid Thermal Annealing Technique
p.911

Influence of Substrate Temperature on the Characteristics of LaB₆ Films
p.915

Effects of Annealing on the Optical and Electronic Properties of Poly (vinylidene fluoride-trifluoroethylene) Copolymer Thin Films
p.919

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 79-82Induction Heating Deposition of Calcium Phosphate...

Induction Heating Deposition of Calcium Phosphate Coating on Carbon/Carbon Composites for Biomedical Applications

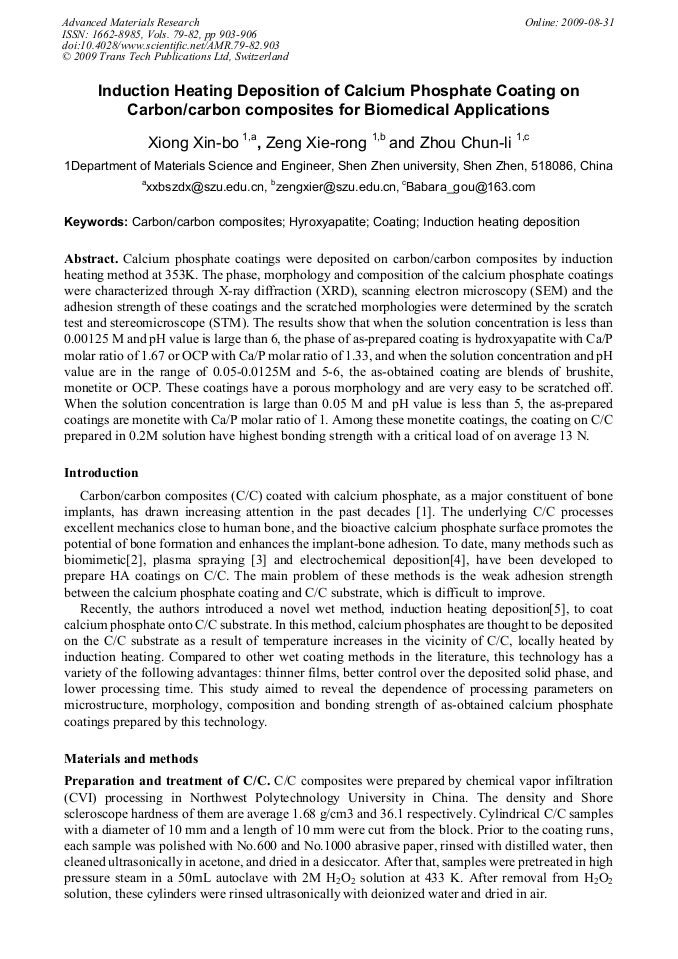

Abstract:

Calcium phosphate coatings were deposited on carbon/carbon composites by induction heating method at 353K. The phase, morphology and composition of the calcium phosphate coatings were characterized through X-ray diffraction (XRD), scanning electron microscopy (SEM) and the adhesion strength of these coatings and the scratched morphologies were determined by the scratch test and stereomicroscope (STM). The results show that when the solution concentration is less than 0.00125 M and pH value is large than 6, the phase of as-prepared coating is hydroxyapatite with Ca/P molar ratio of 1.67 or OCP with Ca/P molar ratio of 1.33, and when the solution concentration and pH value are in the range of 0.05-0.0125M and 5-6, the as-obtained coating are blends of brushite, monetite or OCP. These coatings have a porous morphology and are very easy to be scratched off. When the solution concentration is large than 0.05 M and pH value is less than 5, the as-prepared coatings are monetite with Ca/P molar ratio of 1. Among these monetite coatings, the coating on C/C prepared in 0.2M solution have highest bonding strength with a critical load of on average 13 N.
