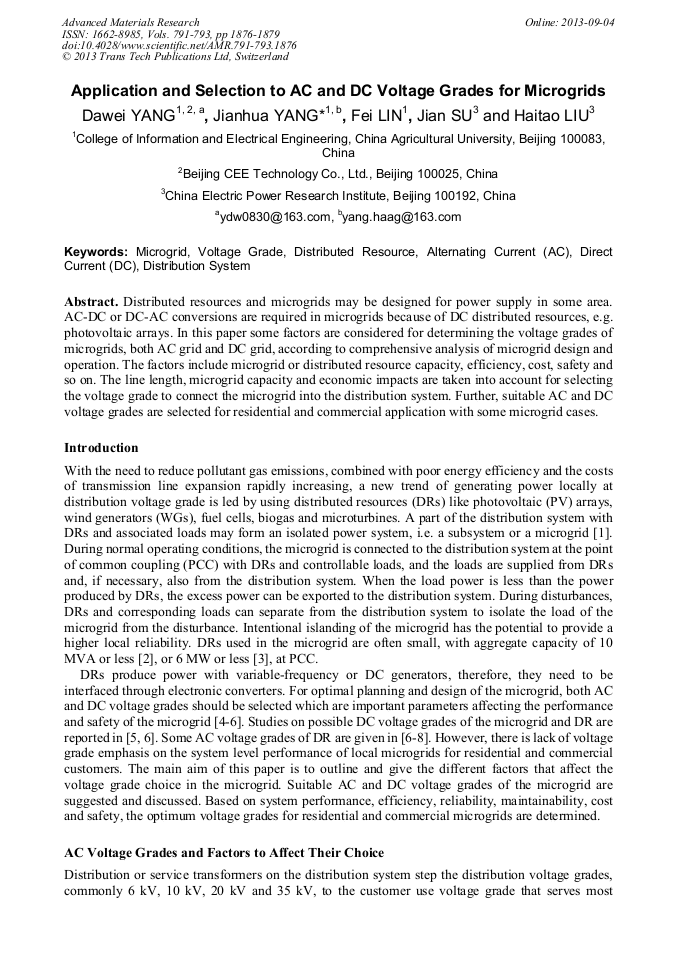

Application and Selection to AC and DC Voltage Grades for Microgrids

Abstract:

Distributed resources and microgrids may be designed for power supply in some area. AC-DC or DC-AC conversions are required in microgrids because of DC distributed resources, e.g. photovoltaic arrays. In this paper some factors are considered for determining the voltage grades of microgrids, both AC grid and DC grid, according to comprehensive analysis of microgrid design and operation. The factors include microgrid or distributed resource capacity, efficiency, cost, safety and so on. The line length, microgrid capacity and economic impacts are taken into account for selecting the voltage grade to connect the microgrid into the distribution system. Further, suitable AC and DC voltage grades are selected for residential and commercial application with some microgrid cases.

• Periodical: Advanced Materials Research (Volumes 791-793)
• Pages: 1876-1879
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.791-793.1876
• Online since: September 2013
• Authors: Da Wei Yang, Jian Hua Yang, Fei Lin, Jian Su, Hai Tao Liu
• Keywords: Alternating Current (AC), Direct Current (DC), Distributed Resource, Distribution System, Microgrids (MGs), Voltage Grade

References

[1] T. S. Ustun, C. Ozansoy and A. Zayegh: Renew. & Sus. Energy Reviews Vol. 15(2011), p.4030.

[2] IEEE Standards Coordinating Committee 21: IEEE Std 1547. 4-(2011).

[3] State Grid Corporation of China: Guide for Interconnecting DRs with Distr. Systems, (2013).

[4] T. C. Y. Ho and L. Ran: 3rd IEEE Int. Sym. on Power Elec. for DG Systems, 2012, p.442.

[5] S. Anand and B. G. Fernandes: 36th Annual Conf. on IEEE Indus. Elec. Society, 2010, p.3034.

[6] G. M. Masters: Renewable and Efficient Electric Power Systems (John Wiley & Sons, Inc., Hoboken 2006).

[7] State Grid Corporation of China: Q/GDW 564-(2010).

[8] State Grid Corporation of China: Q/GDW 156-(2006).

[9] J-H. Yang: Steady State Analysis and Economic Operation of Power System (China Power Press, Beijing 2013).
