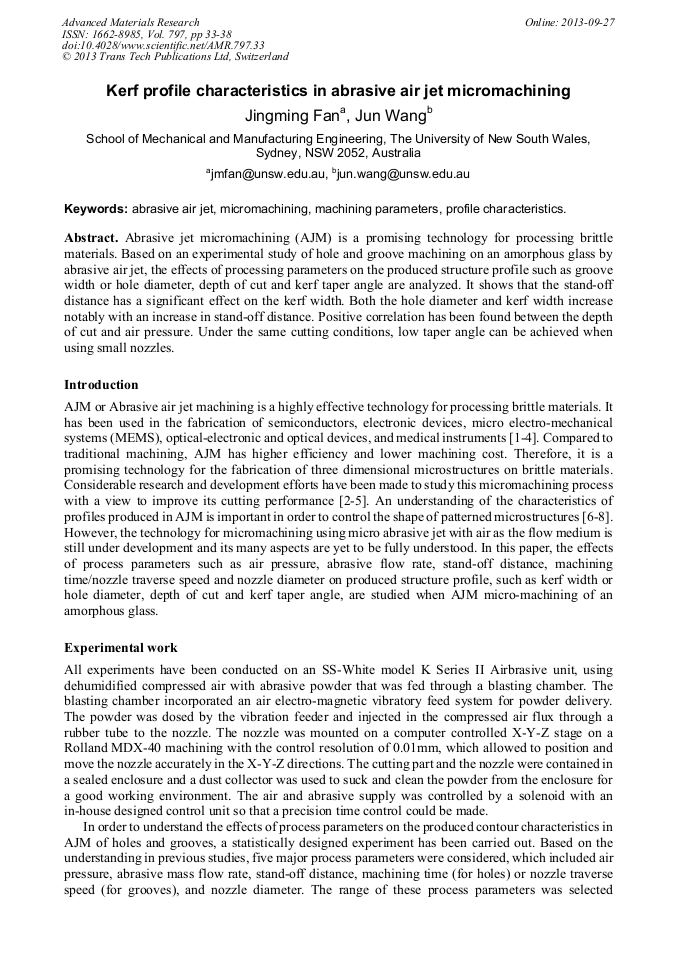

Kerf Profile Characteristics in Abrasive Air Jet Micromachining

Abstract:

Abrasive jet micromachining (AJM) is a promising technology for processing brittle materials. Based on an experimental study of hole and groove machining on an amorphous glass by abrasive air jet, the effects of processing parameters on the produced structure profile such as groove width or hole diameter, depth of cut and kerf taper angle are analyzed. It shows that the stand-off distance has a significant effect on the kerf width. Both the hole diameter and kerf width increase notably with an increase in stand-off distance. Positive correlation has been found between the depth of cut and air pressure. Under the same cutting conditions, low taper angle can be achieved when using small nozzles.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 33-38
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.33
• Online since: September 2013
• Authors: Jing Ming Fan, Jun Wang
• Keywords: Abrasive Air Jet, Machining Parameters, Micro Machining, Profile Characteristics

References

[1] A. Ghobeity, T. Krajac, T. Burzynski, M. Papini and J. K. Spelt: Surface evolution models in abrasive jet micromachining. Wear Vol. 264(3-4) (2008), pp.185-198.

DOI: 10.1016/j.wear.2007.02.020

[2] S. Schlautmann, H. Wensink, R. Schasfoort, M. Elwenspoek and A. van den Berg: Powder-blasting technology as an alternative tool for microfabrication of capillary electrophoresis chips with integrated conductivity sensors. Journal of Micromechanics and Microengineering Vol. 11 (2011).

DOI: 10.1088/0960-1317/11/4/318

[3] E. Belloy, A.G. Pawlowski, A. Sayah and M.A.M. Gijs: Microfabrication of high-aspect ratio and complex monolithic structures in glass. Journal of Microelectromechanical Systems Vol. 11 (2002), pp.521-527.

DOI: 10.1109/jmems.2002.803418

[4] E. Belloy, A. Sayah and M.A.M. Gijs: Micromachining of glass inertial sensors. Journal of Microelectromechanical Systems Vol. 11 (2002), pp.85-90.

DOI: 10.1109/84.982867

[5] J.M. Fan, C.Y. Wang and J. Wang: Modelling the erosion rate in micro abrasive air jet machining of glasses. Wear Vol. 266 (2009), pp.968-974.

DOI: 10.1016/j.wear.2008.12.019

[6] J.M. Fan, C.Y. Wang, Wang, J. and G.S. Luo: Effect of nozzle type and abrasive on machinablity in micro abrasive air jet machining of glass. Key Engineering Materials Vol. 359-360 (2008), pp.404-408.

DOI: 10.4028/www.scientific.net/kem.359-360.404

[7] Q.L. Li, C.Z. Huang, J. Wang and H.T. Zhu: A study on the cross-sectional shape of kerf cut with micro abrasive air jet. Advanced Materials Research Vol. 500 (2012), pp.236-241.

DOI: 10.4028/www.scientific.net/amr.500.236

[8] J. Wang, A. Moridi and P. Mathew: Micro-grooving on quartz crystals by an abrasive air jet. Proc. IMechE Part C: Journal of Mechanical Engineering Science Vol. 225 (2011), pp.2161-2173.

DOI: 10.1177/0954406211410260
