Effect of Ultrasonic EDM on Machinability of Coarse PCD

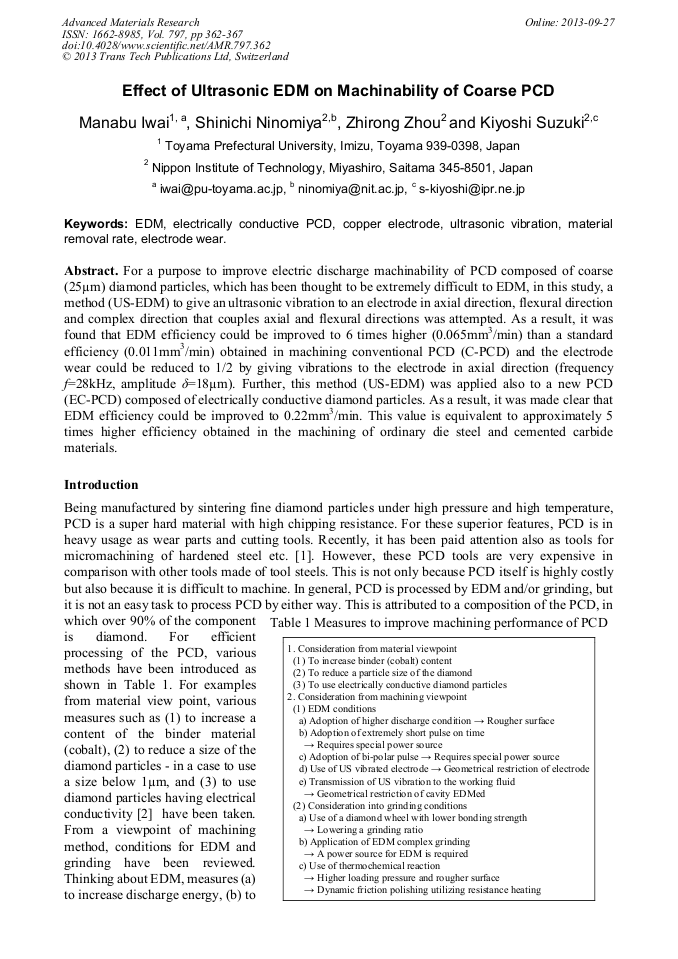

Abstract:

For a purpose to improve electric discharge machinability of PCD composed of coarse (25μm) diamond particles, which has been thought to be extremely difficult to EDM, in this study, a method (US-EDM) to give an ultrasonic vibration to an electrode in axial direction, flexural direction and complex direction that couples axial and flexural directions was attempted. As a result, it was found that EDM efficiency could be improved to 6 times higher (0.065mm³/min) than a standard efficiency (0.011mm³/min) obtained in machining conventional PCD (C-PCD) and the electrode wear could be reduced to 1/2 by giving vibrations to the electrode in axial direction (frequency f=28kHz, amplitude δ=18μm). Further, this method (US-EDM) was applied also to a new PCD (EC-PCD) composed of electrically conductive diamond particles. As a result, it was made clear that EDM efficiency could be improved to 0.22mm³/min. This value is equivalent to approximately 5 times higher efficiency obtained in the machining of ordinary die steel and cemented carbide materials.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 362-367
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.362
• Online since: September 2013
• Authors: Manabu Iwai, Shinichi Ninomiya, Zhi Rong Zhou, Kiyoshi Suzuki
• Keywords: Copper Electrode, EDM, Electrically Conductive PCD, Electrode Wear, Material Removal Rate (MRR), Ultrasonic Vibration

References

[1] K. Suzuki, Y. Seki, T. Uematsu, et al.: High concentration grinding wheel made of PCD, Proc. of World Congress of Manu. Tech. (1997) pp.248-253.

[2] K. Suzuki, M. Iwai, S. Ninomiya, et al.: Development of New PCD Made Up of Boron Doped Diamond Particles and its Machinability by EDM, Advanced Materials Research Vols. 76-78 (Trans Tech Publications Ltd., 2009) pp.684-689.

DOI: 10.4028/www.scientific.net/amr.76-78.684

[3] H. Minami, K. Watanabe, K. Masui: Electrical Discharge Machining for Sintered Polycrystalline Diamond using Bi-polar Pulse Generator, Proceedings of JSPE autumn conference (2010) pp.243-244. (in Japanese).

DOI: 10.2526/ijem.26.60

[4] K. Suzuki, S. Mishiro, T. Uematsu, K. Shoda, et al.: Effects of Giving Ultrasonic Vibrations to an Electrode on the EDM Performance, Proceeding of JSPE autumn conference (1991) pp.443-444. (in Japanese).

[5] S. Ninomiya, M. Iwai, K. Suzuki, et al.: EDM properties of EC-PCD using a copper electrode, Advanced Materials Research Vols. 126-128 (Trans Tech Publications, 2010) pp.521-526.

DOI: 10.4028/www.scientific.net/amr.126-128.521

[6] H. Minami, K. Watanabe, K. Masui, N. Nabekura: Electrical Discharge Truing for Sintered Polycrystalline Diamond Tool, Journal of JSEME, Vol. 44, No. 105 (2010) pp.17-24. (in Japanese).

DOI: 10.2526/ijem.17.7
