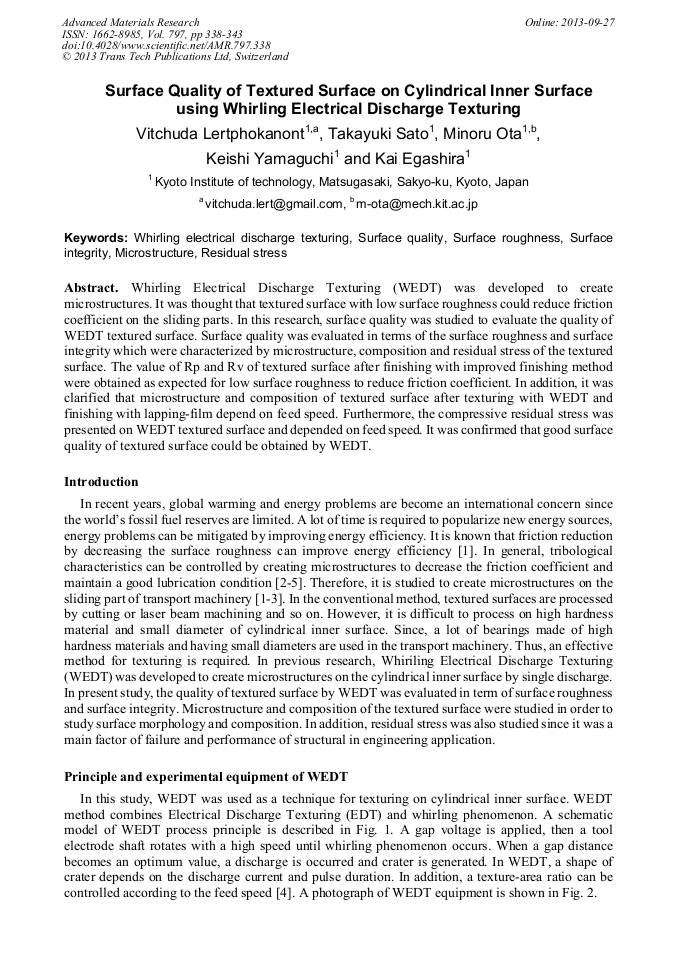

Surface Quality of Textured Surface on Cylindrical Inner Surface Using Whirling Electrical Discharge Texturing

Abstract:

Whirling Electrical Discharge Texturing (WEDT) was developed to create microstructures. It was thought that textured surface with low surface roughness could reduce friction coefficient on the sliding parts. In this research, surface quality was studied to evaluate the quality of WEDT textured surface. Surface quality was evaluated in terms of the surface roughness and surface integrity which were characterized by microstructure, composition and residual stress of the textured surface. The value of Rp and Rv of textured surface after finishing with improved finishing method were obtained as expected for low surface roughness to reduce friction coefficient. In addition, it was clarified that microstructure and composition of textured surface after texturing with WEDT and finishing with lapping-film depend on feed speed. Furthermore, the compressive residual stress was presented on WEDT textured surface and depended on feed speed. It was confirmed that good surface quality of textured surface could be obtained by WEDT.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 338-343
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.338
• Online since: September 2013
• Authors: Vitchuda Lertphokanont, Takayuki Sato, Minoru Ota, Keishi Yamaguchi, Kai Egashira
• Keywords: Microstructure, Residual Stress, Surface Integrity, Surface Quality, Surface Roughness (SR), Whirling Electrical Discharge Texturing

References

[1] M. Ota, T. Nakayama and K. Takasima: Novel Microsurface Machining Techniques for Powertrain Components, JSAE Annual Congress Proceedings, Vol. 30, 6 (2006), pp.11-14.

[2] Y. Uehara, M. Wakuda, Y. Yamauchi, S. Kanzaki and S. Sakaguchi: Tribological properties of dimple silicon nitride under oil lubrication, Journal of the European ceramics Society, Vol. 24 (2004), pp.369-373.

DOI: 10.1016/s0955-2219(03)00220-6

[3] M. Ota, T. Nakayama, K. Takashima and Y. Uehara: Micro-texturing technology for friction-control-surface, The Japan Society of Mechanical Engineers, Vol. 06-34, pp.269-270.

[4] H. Yasui, V. Lertphokanont, M. Ota, T. Hamaoka and T. Yabunaka: Development of Whirling Electrical Discharge Texturing Method, Proceeding of the 6th International Conference on Micro Manufacturing, ICOMM, (2011), pp.83-89.

DOI: 10.1299/jamdsm.7.763

[5] M. Ota: Surface Finishing and Surface Function for Automotive Components, Journal of Society of Automotive Engineers of Japan, vol. 62 (2008), pp.16-20 (In Japanese).

[6] H.T. Lee and T.Y. Tai: Relationship between EDM parameters and surface crack formation, Journal of Materials Processing Technology, Vol. 142 (2003), pp.676-683.

DOI: 10.1016/s0924-0136(03)00688-5

[7] V. Lertphokanont, T. Sato, M. Ota, K. Yamaguchi, K. Egashira: Micro-structuring on Cylindrical Inner Surface using Whirling Electrical Discharge Texturing, Advanced Materials Research, Vol. 565 (2012), pp.430-435.

DOI: 10.4028/www.scientific.net/amr.565.430

[8] F. Ghanem, C. Braham, M.E. Fitzpatrick and H. Sidhom: Effect of Near-Surface Residual Stress and Microstructure Modification from Machining on the Fatigue Endurance of Tool Steel, Journal of Materials Engineering and Performance, Vol. 11-6 (2002).

DOI: 10.1361/105994902770343629
