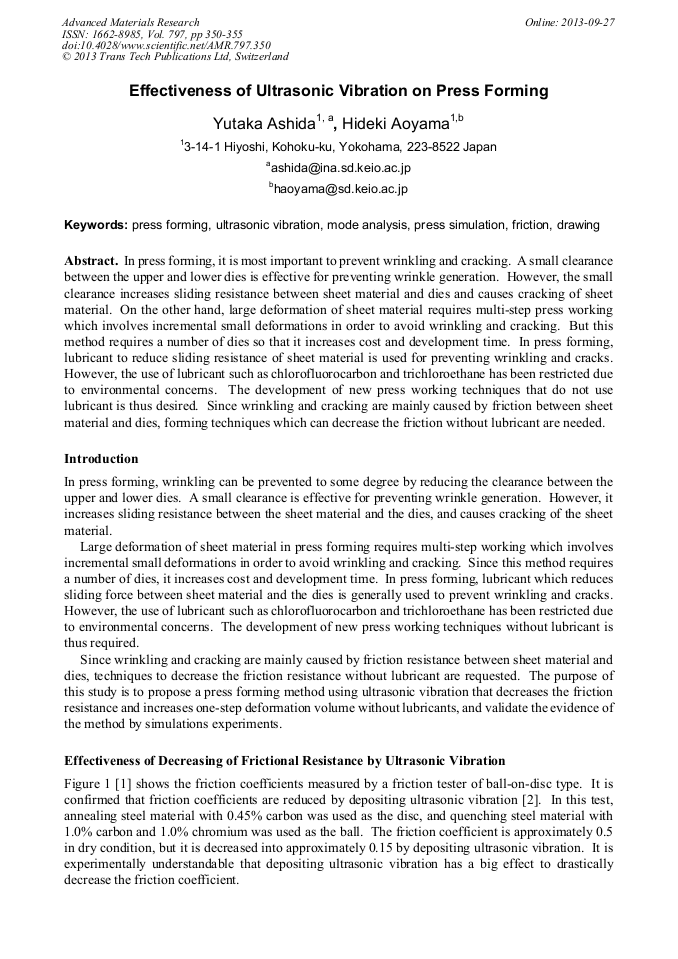

Effectiveness of Ultrasonic Vibration on Press Forming

Abstract:

In press forming, it is most important to prevent wrinkling and cracking. A small clearance between the upper and lower dies is effective for preventing wrinkle generation. However, the small clearance increases sliding resistance between sheet material and dies and causes cracking of sheet material. On the other hand, large deformation of sheet material requires multi-step press working which involves incremental small deformations in order to avoid wrinkling and cracking. But this method requires a number of dies so that it increases cost and development time. In press forming, lubricant to reduce sliding resistance of sheet material is used for preventing wrinkling and cracks. However, the use of lubricant such as chlorofluorocarbon and trichloroethane has been restricted due to environmental concerns. The development of new press working techniques that do not use lubricant is thus desired. Since wrinkling and cracking are mainly caused by friction between sheet material and dies, forming techniques which can decrease the friction without lubricant are needed.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 350-355
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.350
• Online since: September 2013
• Authors: Yutaka Ashida, Hideki Aoyama
• Keywords: Drawing, Friction, Mode Analysis, Press Forming, Press Simulation, Ultrasonic Vibration

References

[1] Ultrasonic application for processing, Edit. The Japan Society for Technology of Plasticity, Morikita Publishing Co., Ltd., (2004), p.42.

[2] D. Godfrey：Vibration Reduces Metal to Metal Contact and Causes An Apparent Reduction in Friction, ASLE Transactions, Vol. 10, No. 2 (1967), pp.183-192.

DOI: 10.1080/05698196708972178

[3] Takashi Jimma, Yukio Kasuga, Nobuyoshi Iwaki, Osamu Miyazawa, Eiji Mori, Katsuhiko Ito, Hajime Hatano: An application of ultrasonic vibration to the deep drawing process, Journal of Materials Processing Technology, Vol. 80, No. 81 (1998).

DOI: 10.1016/s0924-0136(98)00195-2

[4] Jiromaru Tsujino, Hajime Satoh, Kazuhiro Takiguchi: Studies on Ultrasonic Vibration Bending of Thin Metal Plates, Japanese Journal of Applied Physics, Vol. 30, Suppl. 30-1 (1991), pp.203-205.

DOI: 10.7567/jjaps.30s1.203

[5] Jiromaru Tsujino, Tetsugi Ueoka, Kazuhiro Takiguchi, Hajime Satoh, Kazumitsu Takahashi: Characteristics of Bending Parts of Metal Plates Using Ultrasonic Bending Systems with a Vibration Punch and a Vibration Die, Japanese Journal of Applied Physics, Vol. 32, No. 5 B (1993).

DOI: 10.1143/jjap.32.2447

[6] Masao Murakawa, Masahiko Jin: The utility of radially and ultrasonically vibrated dies in the wire drawing process, Journal of Materials Processing Technology, Vol. 113 (2001), pp.81-86.

DOI: 10.1016/s0924-0136(01)00635-5
