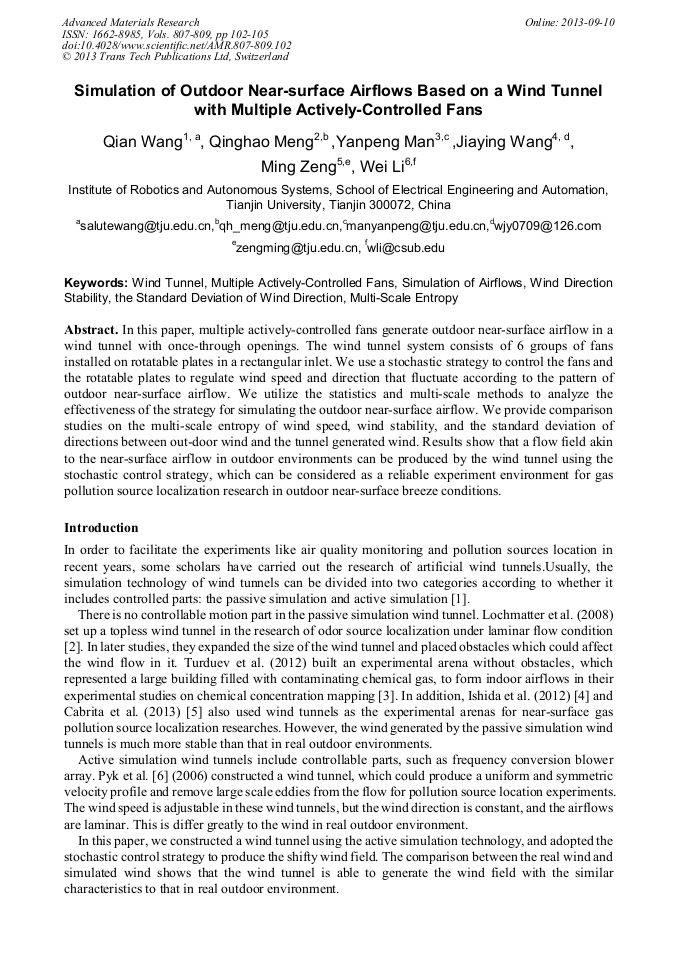

Simulation of Outdoor Near-Surface Airflows Based on a Wind Tunnel with Multiple Actively-Controlled Fans

Abstract:

In this paper, multiple actively-controlled fans generate outdoor near-surface airflow in a wind tunnel with once-through openings. The wind tunnel system consists of 6 groups of fans installed on rotatable plates in a rectangular inlet. We use a stochastic strategy to control the fans and the rotatable plates to regulate wind speed and direction that fluctuate according to the pattern of outdoor near-surface airflow. We utilize the statistics and multi-scale methods to analyze the effectiveness of the strategy for simulating the outdoor near-surface airflow. We provide comparison studies on the multi-scale entropy of wind speed, wind stability, and the standard deviation of directions between out-door wind and the tunnel generated wind. Results show that a flow field akin to the near-surface airflow in outdoor environments can be produced by the wind tunnel using the stochastic control strategy, which can be considered as a reliable experiment environment for gas pollution source localization research in outdoor near-surface breeze conditions.

• Periodical: Advanced Materials Research (Volumes 807-809)
• Pages: 102-105
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.807-809.102
• Online since: September 2013
• Authors: Qian Wang, Qing Hao Meng, Yan Peng Man, Jia Ying Wang, Ming Zeng, Wei Li
• Keywords: Multiple Actively-Controlled Fans, Multi-Scale Entropy, Simulation of Airflows, Standard Deviation of Wind Direction, Wind Direction Stability, Wind Tunnel

References

[1] J. Pang, & Z. Lin: The StatusQuo and Development of Atmospheric Boundary Layer Wind Tunnel Simulation Technology (In Chinese) (NCSWE, 2004).

[2] T. Lochmatter, X. Raemy, L. Matthey, et al: A Comparison of Casting and Spiraling Algorithms for Odor Source Localization in Laminar Flow (ICRA 2008).

DOI: 10.1109/robot.2008.4543357

[3] M. Turduev, G. Cabrita, M. Kirtay, et al: J. Autonomous Agents and Multi-Agent Systems. (2012), P1.

[4] H. Ishida, Y. Wada, H. Matsukura: IEEE Sensors Journals. Vol. 12(11) (2012), P3163.

[5] G. Cabrita, L. Marques: Divergence-based Odor Source Declaration (ASCC 2013).

DOI: 10.1109/ascc.2013.6606390

[6] P. Pyk, S.B. i Badia, U. Bernardet, et al: J. Autonomous Robots. Vol. 20(3) (2006), P197.

[7] H. Li: The Analysis of the Surface Flow Field Characteristic Outside and the Simulation of Smoke Plume (In Chinese) (Master's Thesis, Tianjin 2012).
