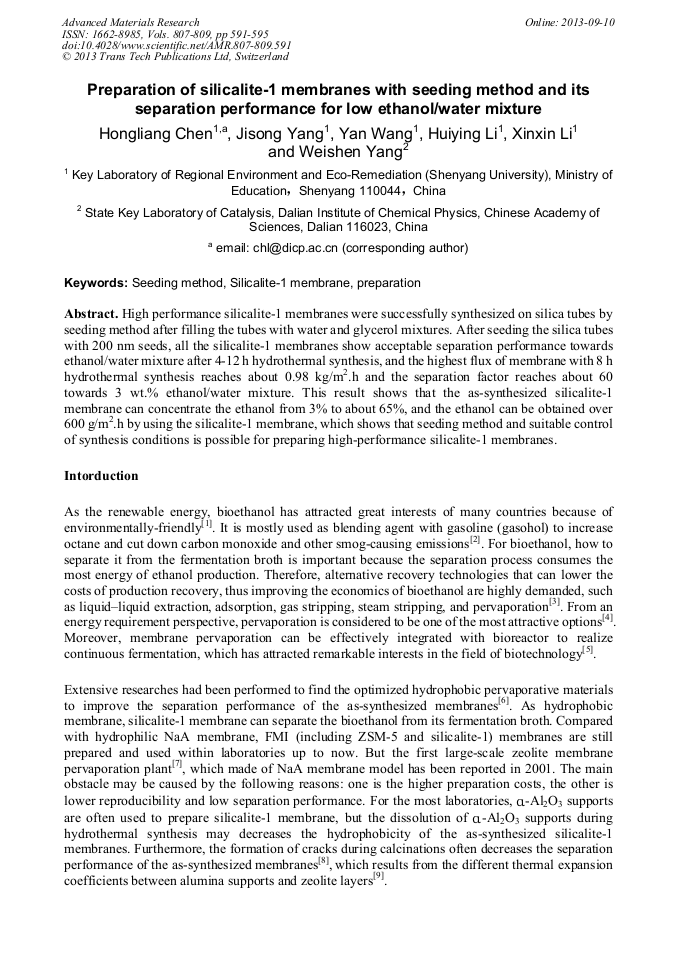

Preparation of Silicalite-1 Membranes with Seeding Method and its Separation Performance for Low Ethanol/Water Mixture

Abstract:

High performance silicalite-1 membranes were successfully synthesized on silica tubes by seeding method after filling the tubes with water and glycerol mixtures. After seeding the silica tubes with 200 nm seeds, all the silicalite-1 membranes show acceptable separation performance towards ethanol/water mixture after 4-12 h hydrothermal synthesis, and the highest flux of membrane with 8 h hydrothermal synthesis reaches about 0.98 kg/m².h and the separation factor reaches about 60 towards 3 wt.% ethanol/water mixture. This result shows that the as-synthesized silicalite-1 membrane can concentrate the ethanol from 3% to about 65%, and the ethanol can be obtained over 600 g/m².h by using the silicalite-1 membrane, which shows that seeding method and suitable control of synthesis conditions is possible for preparing high-performance silicalite-1 membranes.

• Periodical: Advanced Materials Research (Volumes 807-809)
• Pages: 591-595
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.807-809.591
• Online since: September 2013
• Authors: Hong Liang Chen, Ji Song Yang, Yan Wang, Hui Ying Li, Xin Xin Li, Wei Shen Yang
• Keywords: Preparation, Seeding Method, Silicalite-1 Membrane

References

[1] F. W. Bai, W. A. Anderson, M. Moo-Young，Ethanol fermentation technologies from sugar and starch feedstocks，Biotechnology Advances, 2008, 26: 89.

DOI: 10.1016/j.biotechadv.2007.09.002

[2] A. Walter, F. Rosillo-Calle, P. Dolzan, E. Piacente, K.B. da Cunha, Perspectives on fuel ethanol consumption and trade, Biomass Bioenergy, 2008, 32: 730.

DOI: 10.1016/j.biombioe.2008.01.026

[3] L.M. Vane, Separation technologies for the recovery and dehydration of alcohols from fermentation broths, Biofuels Bioproducts and Biorefining. 2008, 2: 553.

DOI: 10.1002/bbb.108

[4] A. Oudshoorn, L.A.M. van der Wielen, A.J.J. Straathof, Assessment of options for selective 1-butanol recovery from aqueous solution, Industrial and Engineering Chemistry Research, 2009, 48: 7325.

DOI: 10.1021/ie900537w

[5] F. Lipnizki, S. Hausmanns, G. Laufenberg, R. Field, B. Kunz, Use of pervaporation bioreactor hybrid processes in biotechnology, Chemical Engineering and Technology, 2000, 23: 569.

DOI: 10.1002/1521-4125(200007)23:7<569::aid-ceat569>3.0.co;2-1

[6] L.M. Vane, A review of pervaporation for product recovery from biomass fermentation processes, Journal of Chemical Technology and Biotechnology, 2005, 80: 603.

DOI: 10.1002/jctb.1265

[7] J. Caro, M. Noack， Zeolite membranes – Recent developments and progress，Microporous Mesoporous and Materials, 2008, 115: 215.

DOI: 10.1016/j.micromeso.2008.03.008

[8] M. Gualtieri, C. Andersson, F. Jareman, J. Hedlund, A. F. Gualtieri, M. Leoni, C. Meneghini, Crack formation in α-alumina supported MFI zeolite membranes studied by in situ high temperature synchrotron powder diffraction，Journal of Membrane Science, 2007, 290: 95.

DOI: 10.1016/j.memsci.2006.12.018

[9] S. Aguado, E. E. McLeary, A. Nijmeijer, M. Luiten, J. C. Jansen, F. Kapteijn, b-Oriented MFI membranes prepared from porous silica coatings, Microporous Mesoporous and Materials, 2009, 120: 165.

DOI: 10.1016/j.micromeso.2008.08.059

[10] X. Lin, H. Kita, K. Okamoto, Silicalite membrane preparation, characterization, and separation performance, Industrial and Engineering Chemistry Research, 2001, 40: 4069.

DOI: 10.1021/ie0101947

[11] J. Hedlund, J. Sterte, M. Anthonis, A.J. Bons, B. Carstensen, N. Corcoran, D. Cox, H. Deckman, W.D. Gijnst, P.P. de Moor, F. Lai, J. McHenry,W. Mortier, J. Reinoso, J. Peters, High-flux MFI membranes, Microporous Mesoporous and Materials, 2002, 52: 179.

DOI: 10.1016/s1387-1811(02)00316-5

[12] Y. Liu, Y. Li, W. Yang, Fabrication of highly b-oriented MFI film with molecular sieving properties by controlled in-plane secondary growth, J. Am. Chem. Soc., 2010, 132: 1768.

DOI: 10.1021/ja909888v

[13] M. Pan, Y.S. Lin. Template-free secondary growth synthesis of MFI type zeolite membranes. Microporous Mesoporous and Materials, 2001, 43: 319.

DOI: 10.1016/s1387-1811(01)00212-8

[14] M. Wesslein, A. Heintz, R.N. Lichtenthaler, Pervaporation of liquid mixtures through polyvinylalcohol membranes. I. Study of water-containing binary systems with complete and partial miscibility, Journal of Membrane Science, 1990, 51: 169.

DOI: 10.1016/s0376-7388(00)80900-x

[15] H. Chen, Y. Li, W. Yang, Preparation of silicalite-1 membrane by solution-filling method and its alcohol extraction properties, Journal of Membrane Science, 2007, 296: 122.

DOI: 10.1016/j.memsci.2007.03.021
