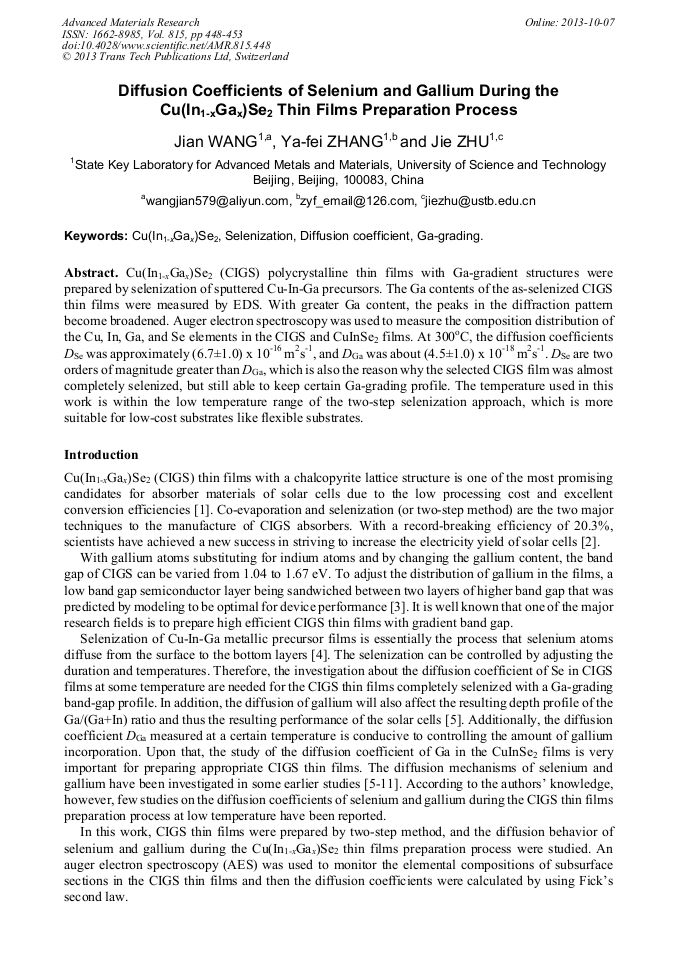

Diffusion Coefficients of Selenium and Gallium during the Cu(In_1-xGa_x)Se₂ Thin Films Preparation Process

Abstract:

Cu (In_1-xGa_x)Se₂ (CIGS) polycrystalline thin films with Ga-gradient structures were prepared by selenization of sputtered Cu-In-Ga precursors. The Ga contents of the as-selenized CIGS thin films were measured by EDS. With greater Ga content, the peaks in the diffraction pattern become broadened. Auger electron spectroscopy was used to measure the composition distribution of the Cu, In, Ga, and Se elements in the CIGS and CuInSe₂ films. At 300°C, the diffusion coefficients D_Se was approximately (6.7±1.0) x 10^-16 m²s^-1, and D_Ga was about (4.5±1.0) x 10^-18 m²s^-1. D_Se are two orders of magnitude greater than D_Ga, which is also the reason why the selected CIGS film was almost completely selenized, but still able to keep certain Ga-grading profile. The temperature used in this work is within the low temperature range of the two-step selenization approach, which is more suitable for low-cost substrates like flexible substrates.

• Periodical: Advanced Materials Research (Volume 815)
• Pages: 448-453
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.815.448
• Online since: October 2013
• Authors: Jian Wang, Ya Fei Zhang, Jie Zhu
• Keywords: Cu(In_1-xGa_x)Se₂, Diffusion Coefficient, Ga-Grading, Selenization

References

[1] S. Ishizuka, K. Sakurai, A. Yamada, K. Matsubara, P. Fons, K. Iwata, S. Nakamura, Y. Kimura, T. Baba, H. Nakanishi, T. Kojima, S. Niki, Fabrication of wide-gap Cu(In1-xGax)Se2 thin film solar cells: a study on the correlation of cell performance with highly resistive i-ZnO layer thickness, Sol. Energy Mater. Sol. Cells 87 (2005).

DOI: 10.1016/j.solmat.2004.08.017

[2] M.A. Green, K. Emery, Y. Hishikawa, W. Warta, Solar cell efficiency tables (version 36), Prog. Photovolt.: Res. Appl. 18 (2010) 346-352.

DOI: 10.1002/pip.1021

[3] A. Dhingra, A. Rothwarf, Computer simulation and modeling of the graded bandgap CuInSe2/CdS solar cell, in: Conference Record of the 23rd IEEE Photovoltaic Specialists Conference, Louisville, KY, 1993: 475-480.

DOI: 10.1109/pvsc.1993.347135

[4] V.F. Gremenok, E.P. Zaretskaya, V.B. Zalesski, K. Bente, W. Schmitz, R.W. Martin, H. Moller, Preparation of Cu(In, Ga)Se2 thin film solar cells by two-stage selenization process using N2 gas, Sol. Energy Mater. Sol. Cells 89 (2005) 129-137.

DOI: 10.1016/j.solmat.2004.11.014

[5] O. Lundberg, J. Lu, A. Rockett, M. Edoff, L. Stolt, Diffusion of indium and gallium in Cu(In, Ga)Se2 thin film solar cells, J. Phys. Chem. Solids, 64 (2003) 1499-1504.

DOI: 10.1016/s0022-3697(03)00127-6

[6] D.J. Schroeder, G.D. Berry, A. Rockett, Gallium diffusion and diffusivity in CuInSe2 epitaxial layers, Appl. Phys. Lett. 69 (1996) 4068-4070.

DOI: 10.1063/1.117820

[7] A.P. Kumar, K.V. Reddy, Lateral self-diffusion of selenium in CuInSe2 thin films, Thin Solid Films 304 (1997) 365-370.

DOI: 10.1016/s0040-6090(97)00039-4

[8] H.J. von Bardeleben, Selenium self-diffusion study in the 1-3-62 semiconductor: CuInSe2, J. Appl. Phys. 56 (1984) 321-326.

[9] M. Marudachalam, H. Hichri, R.W. Birkmire, J.M. Schultz, A.B. Swartzlander, M.M. Al-Jassim, Diffusion of In and Ga in selenized Cu-In and Cu-Ga precursors, IEEE 25th Photovoltaic Specialists Conference, Washington D.C., 1996: 805-807.

DOI: 10.1109/pvsc.1996.564250

[10] M. Marudachalam, R.W. Birkmire, H. Hichri, Phases, morphology, and diffusion in CuInxGa1-xSe2 thin films, J. Appl. Phys. 82 (1997) 2869-2905.

DOI: 10.1063/1.366122

[11] T. Walter, H.W. Schock, Crystal growth and diffusion in Cu(In, Ga)Se2 chalcopyrite thin films, Thin Solid Films 224 (1993) 74-81.

DOI: 10.1016/0040-6090(93)90461-w

[12] J. Wang, Y.F. Zhang, F. Dong, J. Zhu, Ga-grading profiles formed by incorporation of gallium into Cu(In1-xGax)Se2 absorber thin films, Appl. Surf. Sci. 258 (2012) 8636-8640.

DOI: 10.1016/j.apsusc.2012.05.065

[13] F. Kang, J.P. Ao, G.Z. Sun, Q. He, Y. Sun, Properties of CuInxGa1-xSe2 thin films grown from electrodeposited precursors with different levels of selenium content, Curr. Appl. Phys. 10 (2010) 886-888.

DOI: 10.1016/j.cap.2009.10.015

[14] F.B. Dejene, The optical and structural properties of polycrystalline Cu(In, Ga)(Se, S)2 absorber thin films, J. Mater. Sci. 46 (2011) 6981-6987.

DOI: 10.1007/s10853-011-5666-6

[15] M. Marudachalam, H. Hichri, R. Klenk, R.W. Birkmire, W.N. Shafarman, J.M. Schultz, Preparation of homogenous Cu(InGa)Se2 films by selenization of metal precursors in H2Se atmosphere, Appl. Phys. Lett. 67 (1995) 3978-3980.

DOI: 10.1063/1.114424

[16] R. Caballero, C. Guillén, Comparative studies between Cu-Ga-Se and Cu-In-Se thin film systems, Thin Solid Films 403-404 (2002) 107-111.

DOI: 10.1016/s0040-6090(01)01537-1

[17] A. Celik, U. Cevik, E. Bacaksiz, N. Celik, Nickel diffusion in polycrystalline CuInSe2 thin films with a <112> fiber texture, Thin Solid Films 517 (2009) 2851-2854.

DOI: 10.1016/j.tsf.2008.10.046
