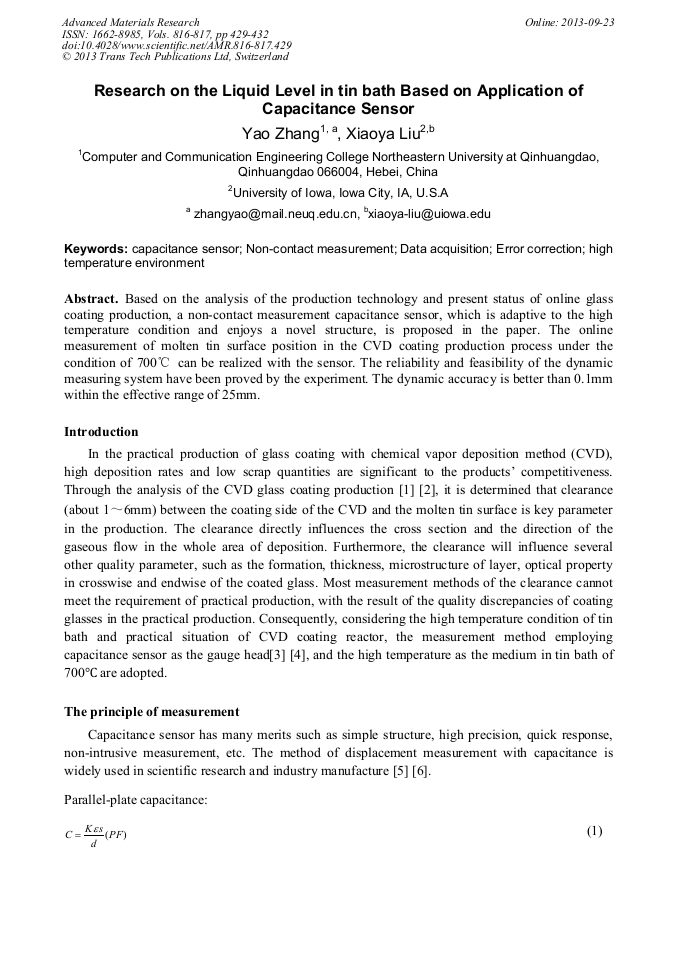

Research on the Liquid Level in Tin Bath Based on Application of Capacitance Sensor

Abstract:

Based on the analysis of the production technology and present status of online glass coating production, a non-contact measurement capacitance sensor, which is adaptive to the high temperature condition and enjoys a novel structure, is proposed in the paper. The online measurement of molten tin surface position in the CVD coating production process under the condition of 700°C can be realized with the sensor. The reliability and feasibility of the dynamic measuring system have been proved by the experiment. The dynamic accuracy is better than 0.1mm within the effective range of 25mm.

• Periodical: Advanced Materials Research (Volumes 816-817)
• Pages: 429-432
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.816-817.429
• Online since: September 2013
• Authors: Yao Zhang, Xiao Ya Liu
• Keywords: Capacitance Sensor, Data Acquisition, Error Correction, High Temperature Environment, Non-Contact Measurement

References

[1] Liu Zhenpu , Cause Analysis And Solutions of Shadow Striation Defect OH Heat-reflective Coating with on-1ine CVD Process [J]. Class, 2011, Vol. 38 No. 10, 35-38.

[2] MIAO Xiang．Yan, ，JIANG Nong-ji, Study of Properties of Bi-Layer on Line Coating Glass [J]. Bulletin of the Chinese Ceramic Society, 2008, Vol. 27 No. 2 April, 297-300.

[3] M. Demori, V. Ferrari, D. Strazza, and P. Poesio, A capacitive sensor system for the analysis of two-phase flows of oil and conductive water, Sensors and Actuators A: Physical, vol. 163, no. 1, p.172.

DOI: 10.1016/j.sna.2010.08.018

[4] Yin-ke Dou, Xiao-min Chang. "A way of capacitance sensor measuring Ice thickness [J]. Taiyuan university oftechnology, 2009, pp.01-03.

[5] S. Avramov-Zamurovic and R. D. Lee, A capacitance sensor evaluation, in Proc. CPEM, Broomfield, CO, Jun. (2008).

[6] N. Dadds and S. Avramov-Zamurovic, Object classification through tactile sensing, in Proc. ASEE Conf., Jun. (2008).
