Research on Voltage Oriented Control Strategy of Grid-Connected Inverter of Wind Power Generation

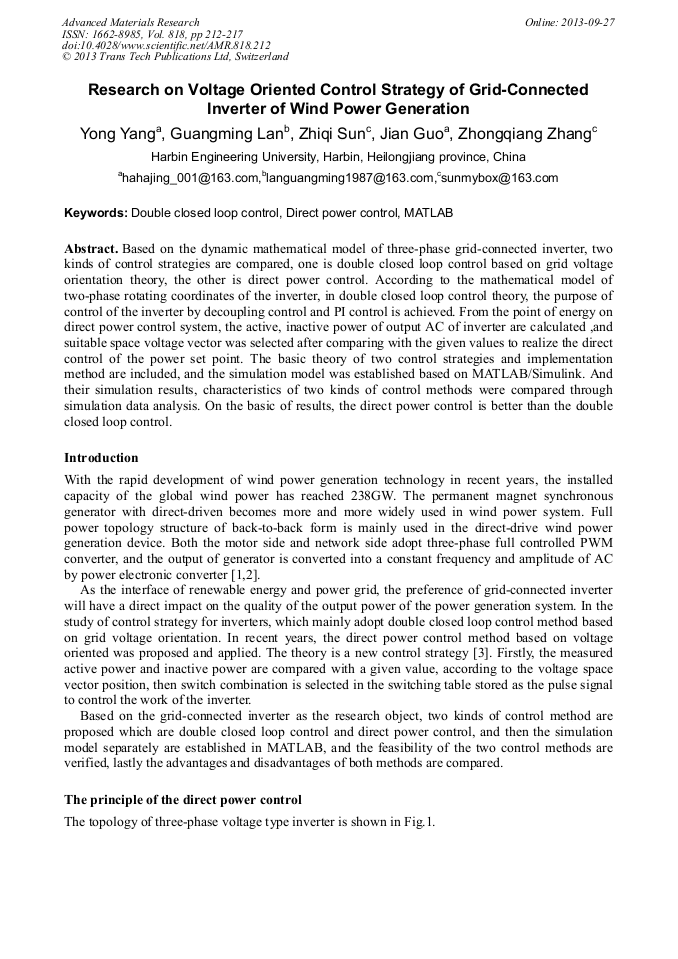

Article Preview

Abstract:

Based on the dynamic mathematical model of three-phase grid-connected inverter, two kinds of control strategies are compared, one is double closed loop control based on grid voltage orientation theory, the other is direct power control. According to the mathematical model of two-phase rotating coordinates of the inverter, in double closed loop control theory, the purpose of control of the inverter by decoupling control and PI control is achieved. From the point of energy on direct power control system, the active, inactive power of output AC of inverter are calculated ,and suitable space voltage vector was selected after comparing with the given values to realize the direct control of the power set point. The basic theory of two control strategies and implementation method are included, and the simulation model was established based on MATLAB/Simulink. And their simulation results, characteristics of two kinds of control methods were compared through simulation data analysis. On the basic of results, the direct power control is better than the double closed loop control.

You might also be interested in these eBooks
Nanotechnology and Advanced Materials II View Preview

Info:

Periodical:

Advanced Materials Research (Volume 818)

Pages:

212-217

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.818.212

Citation:

Cite this paper

Online since:

September 2013

Authors:

Yong Yang, Guang Ming Lan, Zhi Qi Sun, Jian Guo, Zhong Qiang Zhang

Keywords:

Direct Power Control, Double Closed Loop Control, MATLAB

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J.J. Li, Z.Q. Wu, X.Q. Tan: Power Construction (2011), pp.64-71.

Google Scholar

[2] J.F. Li: China's Wind Power Development Report of 2012(2012), pp.2-4.

Google Scholar

[3] G. Zhang Y.Q. Wu, L. Mei: Scheme of the Control of Variable Speed Constant Frequency Wind Power Generation System(2012), pp.53-56.

Google Scholar

[4] Y. Yang,Y. Ruan: Direct Power Control of Three-Phase Grid-Connected Inverter(2011), pp.54-58.

Google Scholar

[5] W. Chen: Research and Implementation of Direct Power Control of Three-Phase Voltage Source PWM Rectifier(2009), pp.35-60.

Google Scholar

[6] J. Guo L.G. Song,Y. Yang: A Research on the Control System of Wind Power Grid-connected Inverter(2012), pp.551-556.

Google Scholar

[7] H.X. Wang, W.M. Ma: Study of Model of Software Phase Locked-Loop Based on Dual-dq Synchronous Transform(2011), pp.56-80.
