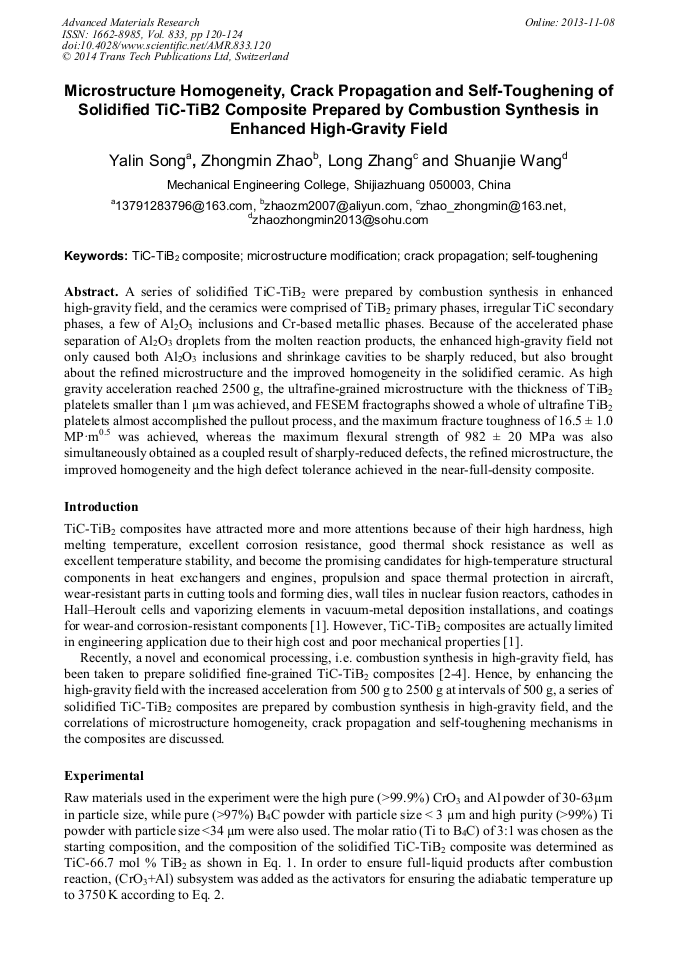

Microstructure Homogeneity, Crack Propagation and Self-Toughening of Solidified TiC-TiB₂ Composite Prepared by Combustion Synthesis in Enhanced High-Gravity Field

Abstract:

A series of solidified TiC-TiB₂ were prepared by combustion synthesis in enhanced high-gravity field, and the ceramics were comprised of TiB₂ primary phases, irregular TiC secondary phases, a few of Al₂O₃ inclusions and Cr-based metallic phases. Because of the accelerated phase separation of Al₂O₃ droplets from the molten reaction products, the enhanced high-gravity field not only caused both Al₂O₃ inclusions and shrinkage cavities to be sharply reduced, but also brought about the refined microstructure and the improved homogeneity in the solidified ceramic. As high gravity acceleration reached 2500 g, the ultrafine-grained microstructure with the thickness of TiB₂ platelets smaller than 1 μm was achieved, and FESEM fractographs showed a whole of ultrafine TiB₂ platelets almost accomplished the pullout process, and the maximum fracture toughness of 16.5 ± 1.0 MP · m^0.5 was achieved, whereas the maximum flexural strength of 982 ± 20 MPa was also simultaneously obtained as a coupled result of sharply-reduced defects, the refined microstructure, the improved homogeneity and the high defect tolerance achieved in the near-full-density composite.

• Periodical: Advanced Materials Research (Volume 833)
• Pages: 120-124
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.833.120
• Online since: November 2013
• Authors: Ya Lin Song, Zhong Min Zhao, Long Zhang, Shuan Jie Wang
• Keywords: Crack Propagation, Microstructure Modification, Self-Toughening, TiC-TiB₂ Composite

References

[1] D. Vallauri, I.C. AtIas, A. Adrian, TiC-TiB2 composites: A review of phase relationships, processing and properties, J. Eur. Ceram. Soc. 28 (2008) 1697-1713.

DOI: 10.1016/j.jeurceramsoc.2007.11.011

[2] Z. Zhao, L. Zhang, Y. Song, W. Wang, Microstructures and properties of large bulk solidified TiC-TiB2 composites prepared by combustion synthesis under high gravity, Scripta Mater. 61 (2009) 281-284.

DOI: 10.1016/j.scriptamat.2009.04.002

[3] X. Huang, Z. Zhao, L. Zhang, C. Yin, Microstructure transformation and mechanical properties of TiC-TiB2 ceramics prepared by combustion synthesis in high gravity field, Mater. Sci. Eng. A 553 (2012) 105-111.

DOI: 10.1016/j.msea.2012.05.099

[4] Z. Zhao, L. Zhang, Y. Song, W. Wang, J. He, Crystal growth, fracture behavior and toughening of rapidly-solidified TiC-TiB2 prepared by combustion synthesis in high-gravity field, Key Eng. Mater. 512-515 (2012) 691-696.

DOI: 10.4028/www.scientific.net/kem.512-515.691

[5] W. Kurz, D. J. Fisher, Fundamentals of Solidification, fourth ed., Trans Tech Publication Ltd, Switzerland, (1998).
