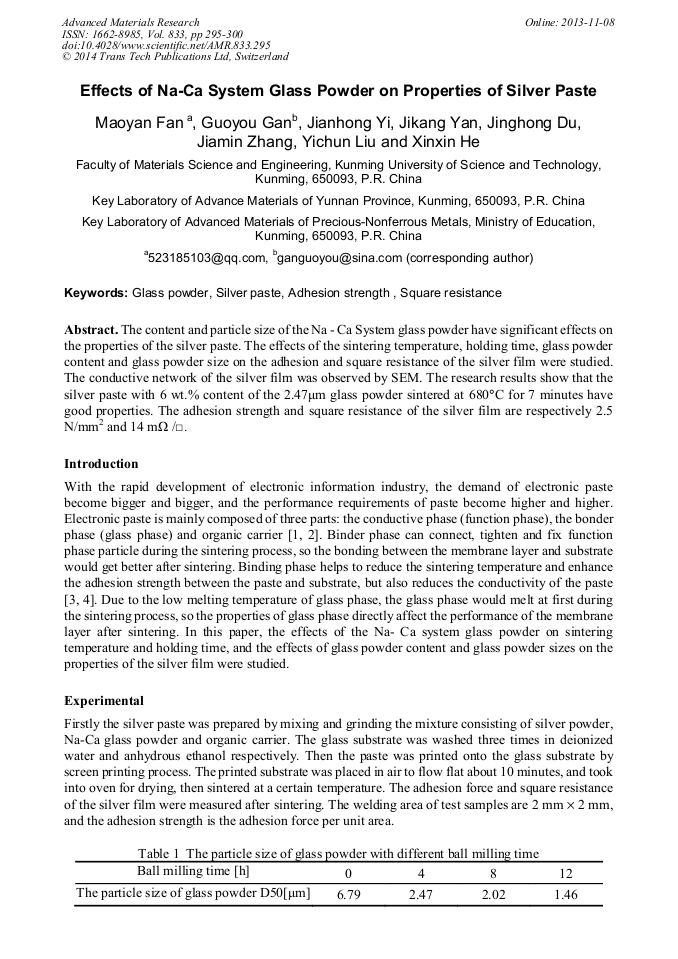

Effects of Na-Ca System Glass Powder on Properties of Silver Paste

Abstract:

The glass powder as a binder phase in the silver paste mainly plays the role of binding. The composition, content and particle size of the glass powder have significant effects on the properties of the silver paste. In this paper, the effects of the sintering temperature, holding time, glass powder content and glass powder size on the adhesion and square resistance of the silver film were studied. The research results showed that when the glass powder content was 6%(in mass) of the total silver paste, the sintering temperature was 680°C, the holding time was 7 minutes and the glass powder size was 2.47μm, the silver paste can get good properties. The adhesion strength and square resistance of the silver film were respectively 2.5 N/mm² and 14 mΩ /.

• Periodical: Advanced Materials Research (Volume 833)
• Pages: 295-300
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.833.295
• Online since: November 2013
• Authors: Mao Yan Fan, Guo You Gan*, Jian Hong Yi, Ji Kang Yan, Jing Hong Du, Jia Min Zhang, Yi Chun Liu, Xin Xin He
• Keywords: Adhesion, Glass Powder, Silver Paste, Square Resistance

References

[1] T.G. Shi, H.Z. Qi, B. Yan, Research progress of electronic paste and its application in printed circle board industry, J. Shanghai Nonferrous Metals. 33 (2012) 145-147.

[2] G.G. Lu, T.P. Xuan, Development tendency and research progress of the electronic paste, J. Metallic Functional Materials. 15 (2008) 48-52.

[3] M. Fu, H.M. Liu, The development of environment-protecting conductive pastes, J. Material Review. 19 (2005) 280-289.

[4] Y.H. Zhang, B. Yan, Recent progress and development trends of silver slurry, J. Metallic Functional Materials. 19 (2012) 36-40.

[5] Q.D. Che, H.X. Yang, L. Liu, Y.H. Wang, A new environmental friendly silver front contact paste for crystalline silicon solar cells, J. Journal of Alloys and Compounds. 549 (2013) 221–225.

DOI: 10.1016/j.jallcom.2012.09.080

[6] Z.Q. Chen, The effect of peak firing temperature on sheet resistivity for Ru— based thick film resistor, J. Electron Devices. 18 (1995) 239-248.

[7] S.B. Rane, P.K. Khanna, T. Seth, Firing and processing effects on microstructure of fritted silver thick film electrode materials for solar cells, J. Materials Chemistry and Physics. 82 (2003) 237–245.

DOI: 10.1016/s0254-0584(03)00236-0

[8] S.A. Ketkar, G.G. Umarji, G.J. Phatak, Effect of glass content variation on properties of photoimageable silver conductor paste, J. Materials Chemistry and Physics. 96 (2006) 145-153.

DOI: 10.1016/j.matchemphys.2005.06.054

[9] C.J. Jiang, Z.Z. Zhang, F.X. Zhao, Effect of paste composition on conductivity of silver paste, J. Special Casting & Nonferrous Alloys. 28 (2008) 804-806.
