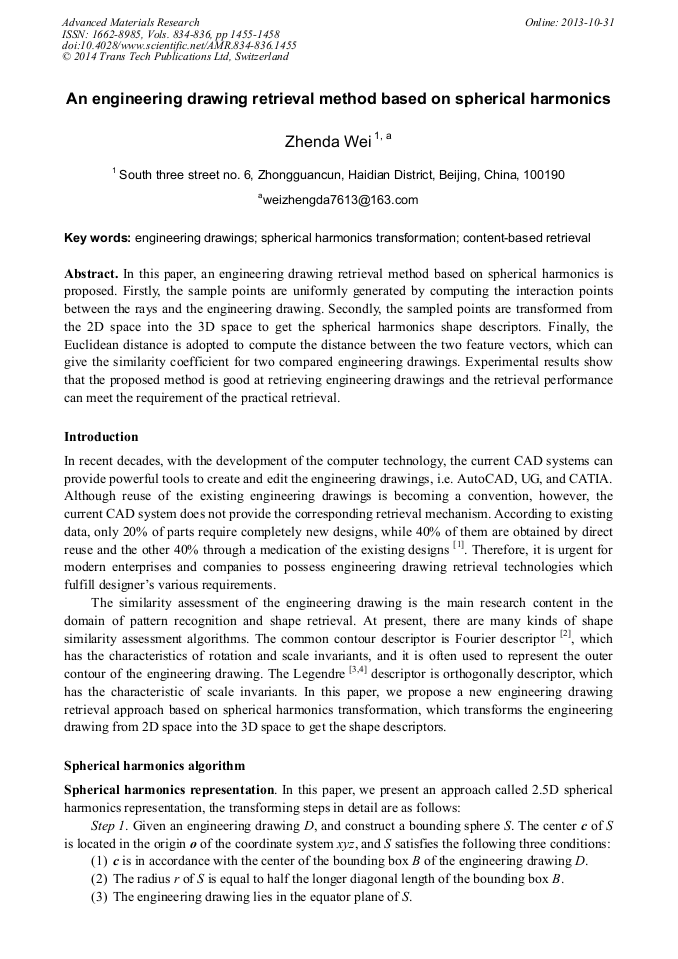

An Engineering Drawing Retrieval Method Based on Spherical Harmonics

Abstract:

In this paper, an engineering drawing retrieval method based on spherical harmonics is proposed. Firstly, the sample points are uniformly generated by computing the interaction points between the rays and the engineering drawing. Secondly, the sampled points are transformed from the 2D space into the 3D space to get the spherical harmonics shape descriptors. Finally, the Euclidean distance is adopted to compute the distance between the two feature vectors, which can give the similarity coefficient for two compared engineering drawings. Experimental results show that the proposed method is good at retrieving engineering drawings and the retrieval performance can meet the requirement of the practical retrieval.

• Periodical: Advanced Materials Research (Volumes 834-836)
• Pages: 1455-1458
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.834-836.1455
• Online since: October 2013
• Authors: Zhen Da Wei
• Keywords: Content-Based Retrieval, Engineering Drawings, Spherical Harmonics Transformation

References

[1] Wang Yu, Xing Yuan, Ruan Xueyu. Study on design reuse strategies for mechanical products [J]. Journal of Mechanical Engineering, 2002, 38(5): 145~148.

[2] Tabbone S, Wending L, Tombre K. Matching of graphical symbols in line-drawing images using angular signature information [J]. Int J Doc Anal Recog, 2003, 6(2): 115-125.

DOI: 10.1007/s10032-003-0105-0

[3] Yun G E, Shu H Z, Luo L M. A new way of linear registration using the legendre orthogonal moment and application in 2-value image data [J]. Acta Electronica Sinica, 2001, 29(1): 54-56.

[4] Y. Rubner, C. Tomasi, L.J. Guibas. The earth mover's distance as a metric for image retrieval [J]. International Journal of Computer Vision, 2000, 40(2): 99-121.

[5] Franti P, Mednonogov A, Kykri V, et al. Conten-based matching of line-drawing images using the hough transform [J]. Int J Doc Anal Recog, 2000, 3(3): 117-124.

DOI: 10.1109/icpr.2000.902940
