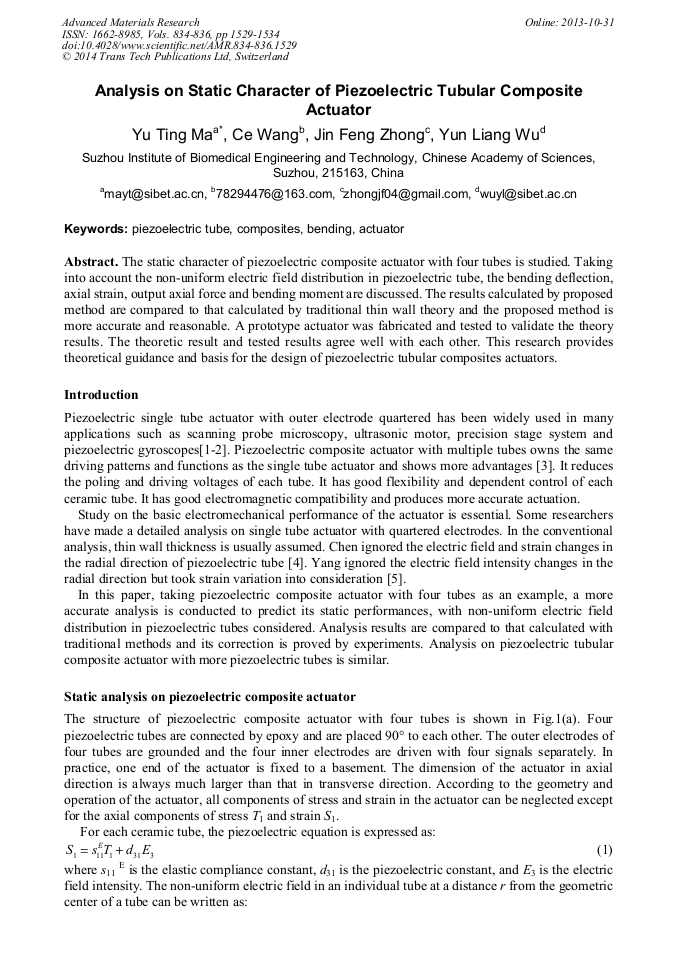

Analysis on Static Character of Piezoelectric Tubular Composite Actuator

Abstract:

The static character of piezoelectric composite actuator with four tubes is studied. Taking into account the non-uniform electric field distribution in piezoelectric tube, the bending deflection, axial strain, output axial force and bending moment are discussed. The results calculated by proposed method are compared to that calculated by traditional thin wall theory and the proposed method is more accurate and reasonable. A prototype actuator was fabricated and tested to validate the theory results. The theoretic result and tested results agree well with each other. This research provides theoretical guidance and basis for the design of piezoelectric tubular composites actuators.

• Periodical: Advanced Materials Research (Volumes 834-836)
• Pages: 1529-1534
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.834-836.1529
• Online since: October 2013
• Authors: Yu Ting Ma*, Ce Wang, Jin Feng Zhong, Yun Liang Wu
• Keywords: Actuator, Bending, Composite, Piezoelectric Tube

References

[1] G. Binnig and D. P. E. Smith, Single-tube three-dimensional scanner for scanning tunneling microscopy, Rev. Sci. Instrum. 57, (1986) 1688-1689.

DOI: 10.1063/1.1139196

[2] T. Morita, M. K. Kurosawa, and T. Higuchi, Cylindrical micro ultrasonic motor utilizing bulk lead zirconate titanate (PZT), Jpn. J. Appl. Phys., Part 1, 38, (1999) 3347-3350.

DOI: 10.1143/jjap.38.3347

[3] Y. Ma, Z. Feng, C. Pan, and F. Kong, Static and dynamic analysis of a four-tube piezoelectric actuator, Rev. Sci. Instrum., 80 (2009) 065010.

[4] C. J. Chen, Electromechanical deflections of piezoelectric tubes with quartered electrodes, Appl. Phys. Lett. 60, (1992) 132-134.

DOI: 10.1063/1.107348

[5] S. Y. Yang and W. H. Huang, Three-dimensional displacements of a piezoelectric tube scanner, Rev. Sci. Instrum. 69, (1998) 226-229.
