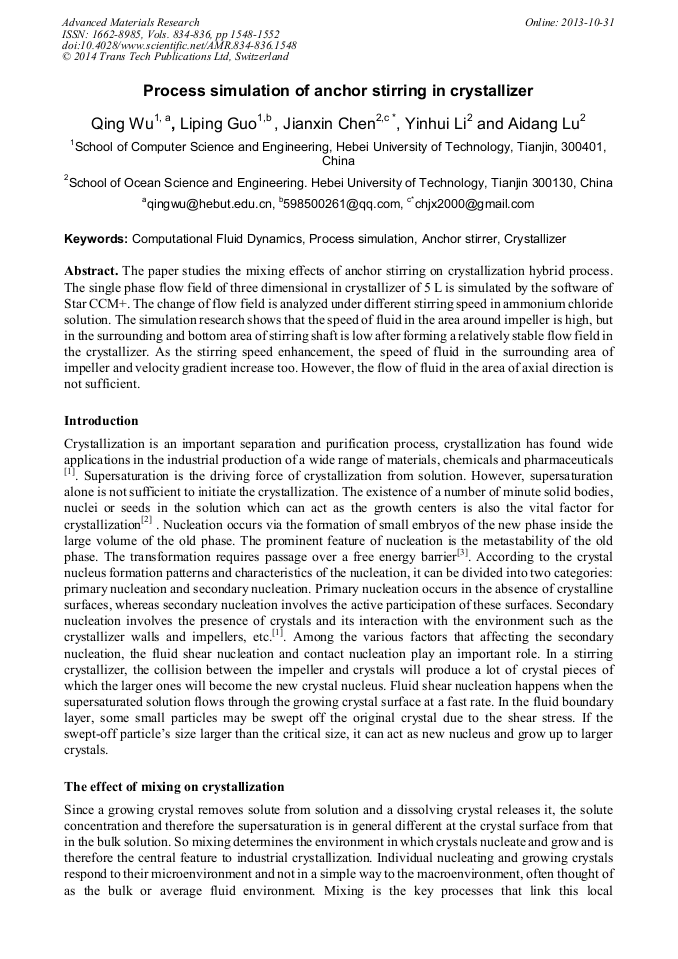

Process Simulation of Anchor Stirring in Crystallizer

Abstract:

The paper studies the mixing effects of anchor stirring on crystallization hybrid process. The single phase flow field of three dimensional in crystallizer of 5 L is simulated by the software of Star CCM+. The change of flow field is analyzed under different stirring speed in ammonium chloride solution. The simulation research shows that the speed of fluid in the area around impeller is high, but in the surrounding and bottom area of stirring shaft is low after forming a relatively stable flow field in the crystallizer. As the stirring speed enhancement, the speed of fluid in the surrounding area of impeller and velocity gradient increase too. However, the flow of fluid in the area of axial direction is not sufficient.

• Periodical: Advanced Materials Research (Volumes 834-836)
• Pages: 1548-1552
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.834-836.1548
• Online since: October 2013
• Authors: Qing Wu, Li Ping Guo, Jian Xin Chen, Yin Hui Li, Ai Dang Lu
• Keywords: Anchor Stirrer, Computational Fluid Dynamics (CFD), Crystallizer, Process Simulation

References

[1] Allan Myerson, Handbook of Industrial Crystallization(2nd edition), Butterworth-Heinemann, Boston, (2002).

[2] J.W. Mullin, Crystallization, 4th Edition. Butterworth-Heinemann, Oxford, (2001).

[3] Kashchiev D. Nucleation: Basic Theory with Applications. Butterworths, Heinemann, Oxford, (1999).

[4] Green, D.A., Kontomaris, K., and Kendall, R.E. Computational Fluid Dynamics as a Tool for Understanding Industrial Crystallization, AIChE Annual Meeting, November (1998).

[5] Gance Dai, Minheng Chen. Chemical Fluid Mechanics. (China Chemical Industry Press, Beijing 2005)(in Chinese).

[6] Zhenxing Zhu. Study and Multi-Phase CFD Modelling of Ammoium Sulphate Crystallization. (Tianjin university, Tianjin 2008)(in Chinese).
