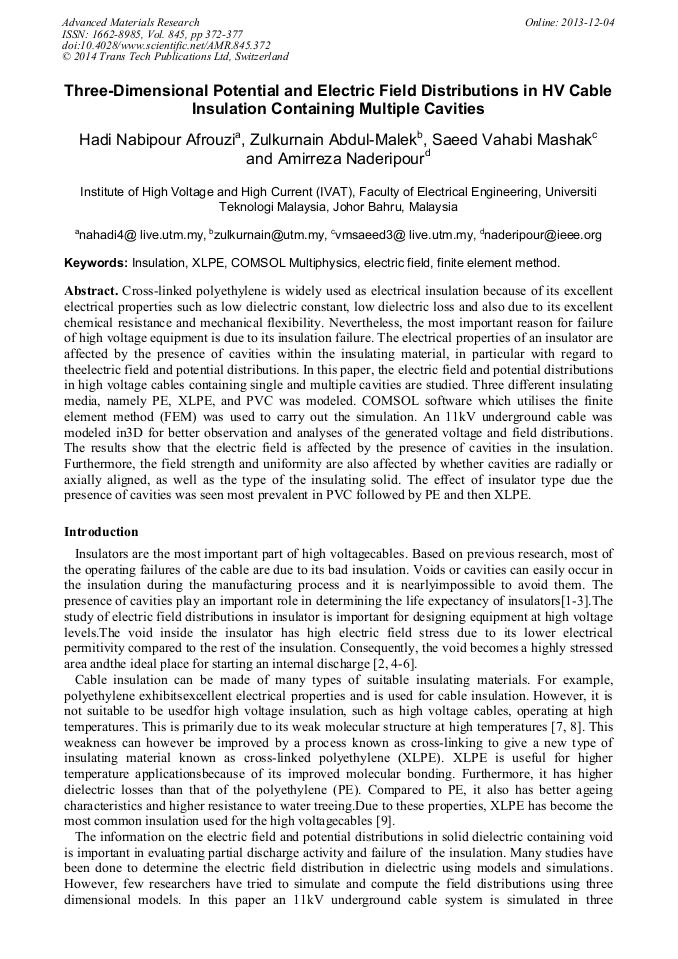

Three-Dimensional Potential and Electric Field Distributions in HV Cable Insulation Containing Multiple Cavities

Abstract:

Cross-linked polyethylene is widely used as electrical insulation because of its excellent electrical properties such as low dielectric constant, low dielectric loss and also due to its excellent chemical resistance and mechanical flexibility. Nevertheless, the most important reason for failure of high voltage equipment is due to its insulation failure. The electrical properties of an insulator are affected by the presence of cavities within the insulating material, in particular with regard to the electric field and potential distributions. In this paper, the electric field and potential distributions in high voltage cables containing single and multiple cavities are studied. Three different insulating media, namely PE, XLPE, and PVC was modeled. COMSOL software which utilises the finite element method (FEM) was used to carry out the simulation. An 11kV underground cable was modeled in 3D for better observation and analyses of the generated voltage and field distributions. The results show that the electric field is affected by the presence of cavities in the insulation. Furthermore, the field strength and uniformity are also affected by whether cavities are radially or axially aligned, as well as the type of the insulating solid. The effect of insulator type due the presence of cavities was seen most prevalent in PVC followed by PE and then XLPE.

• Periodical: Advanced Materials Research (Volume 845)
• Pages: 372-377
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.845.372
• Online since: December 2013
• Authors: Nabipour Afrouzi Hadi, Zulkurnain Abdul-Malek*, Saeed Vahabi Mashak, A.R. Naderipour
• Keywords: COMSOL Multiphysics, Electric Field, Finite Element Method (FEM), Insulation, XLPE

References

[1] AE. Davies, G. Chen, Electric stress Distribution in Polymeric Insulation Containing Defect Sites and Space Charges. COMPEL, vol. 11, no. 1, 1992, pp.237-240.

DOI: 10.1108/eb051796

[2] AA. Hossan-Eldin, SM. El-Mekkawy, SS. Dessouky, Analysis and Simulation of Field Distribution in Micro Cavities in Solid Insulating Materials, in IEEE CEIDP, Vancouver, Canada, October, 2007, pp.792-796.

DOI: 10.1109/ceidp.2007.4451649

[3] T. Seghir, D. Mahi, T. Lebey, DM Alec, Analysis of the Electric Field and the Potential Distribution in Cavities Inside Solid Insulating Electric Materials. in COMSOL Users Conference, Paris, France, (2006).

[4] Paul Gill, Electrical Power Equipment Maintenance and Testing. Taylor & Francis Group, London, (2008).

[5] C. Kim, Z. Jin, X. Huang, P. Jiang, & Q. Ke, Investigation on water treeing behaviors of thermally aged XLPE cable insulation, Polymer degradation and stability, 2007, p.537–544.

DOI: 10.1016/j.polymdegradstab.2007.01.020

[6] P. A. Wallace, M. Alsharif, D. M. Hepburn, and C. Zhou, Failure Modes ofUnderground MV Cables: Electrical andThermal Modeling, in COMSOLConference, Milan, (2009).

[7] Y. Yamada, H. Matsubara, S. Fukunaga, K. Yatsuka, Development andreliability study on high voltage RCP-XLPEcables, 7th IEEEIPES transmission anddistribution conference and exposition, 1-6 Apr 1979, Atlanta, Georgia, p.386 – 390.

DOI: 10.1109/tdc.1979.712715

[8] B. Subba Reddy, N.A. Sultan, P.M. Monika, B. Pooja, O. Salma, K.V. Ravishankar, Simulation of Potential and Electric Field for HighVoltage Ceramic Disc Insulators, 5th International Conference on Industrial and Information Systems, ICIIS 2010, Jul 29 - Aug 01, 2010, India.

DOI: 10.1109/iciinfs.2010.5578647

[9] E.H. Ball, H. W. Holdup, D. J. Skipper and B. Vecillio, Development of cross-linkedPolyethylene Insulation for UV cables, CIGRE, Paper 21-01, (1984).

[10] COMSOL MultiphysicsModeling Guideonhttp: /www. chemeng. ntua. gr/courses/comp _tp/mo deling_guide. pdf, (2007).

[11] D. J. Smith, S. G. McMeekin, B. G. Stewart, P.A. Wallace, Transformer Bushings – Modeling of Electric Field and Potential Distributions within Oil Impregnated Paper with Single and Multiple Spherical Cavities. UPEC, 31st Aug - 3rd Sept (2010).

[12] M. E. Ghourab, S.M. El-Makkawy, Analysis of Electric Field Distribution in Cavities within Solid Dielectric Materials, in IEEE CEIDP, USA, 23-26 October, 1994, pp.155-160.

DOI: 10.1109/ceidp.1994.591735

[13] J. C. Chan, M. D. Havtley and L. J. Hiivala, Performance Characteristicsof XLPE Versus EPR as Insulationfor High Voltage Cables, IEEE Electrical Insulation Magazine, May/June 1993-Vo1. 9, No. 3, (1993).

DOI: 10.1109/57.216782
