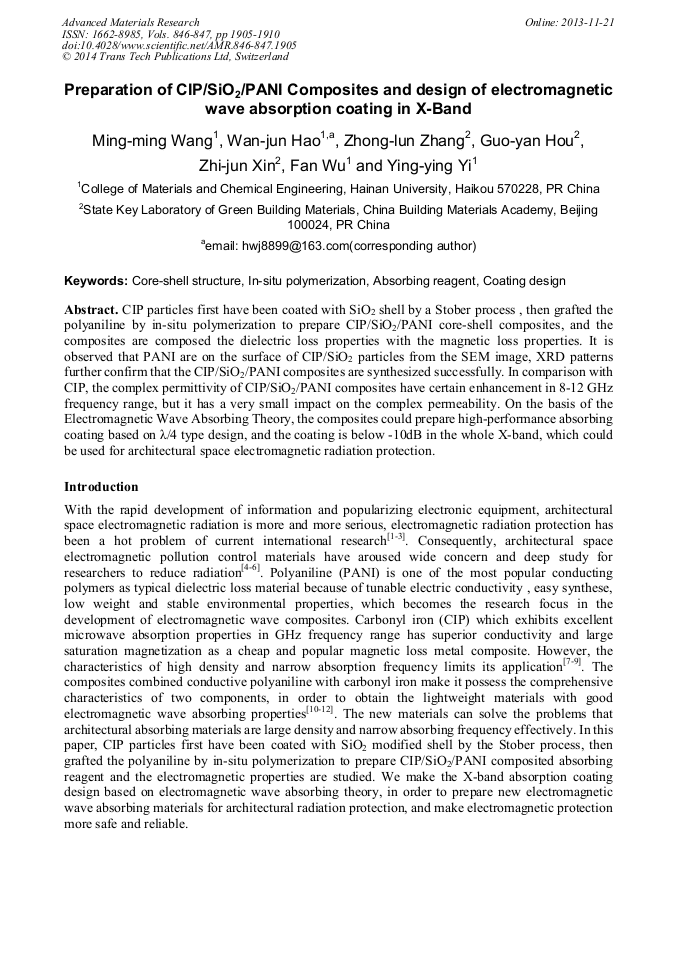

Preparation of CIP/SiO₂/PANI Composites and Design of Electromagnetic Wave Absorption Coating in X-Band

Abstract:

CIP particles first have been coated with SiO₂ shell by a Stober process , then grafted the polyaniline by in-situ polymerization to prepare CIP/SiO₂/PANI core-shell composites, and the composites are composed the dielectric loss properties with the magnetic loss properties. It is observed that PANI are on the surface of CIP/SiO₂ particles from the SEM image, XRD patterns further confirm that the CIP/SiO₂/PANI composites are synthesized successfully. In comparison with CIP, the complex permittivity of CIP/SiO₂/PANI composites have certain enhancement in 8-12 GHz frequency range, but it has a very small impact on the complex permeability. On the basis of the Electromagnetic Wave Absorbing Theory, the composites could prepare high-performance absorbing coating based on λ/4 type design, and the coating is below-10dB in the whole X-band, which could be used for architectural space electromagnetic radiation protection.

• Periodical: Advanced Materials Research (Volumes 846-847)
• Pages: 1905-1910
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.846-847.1905
• Online since: November 2013
• Authors: Ming Ming Wang, Wan Jun Hao*, Zhong Lun Zhang, Guo Yan Hou, Zhi Jun Xin, Fan Wu, Ying Ying Yi
• Keywords: Absorbing Reagent, Coating Design, Core-Shell Structure, In Situ Polymerization

References

[1] O. Hoshimoto: Technologies and Applications of Wave Absorber (CMC Press, Japan, Tokyo, 2004), pp.10-30.

[2] S.H. Liu, J.M. Liu and X.L. Dong: Electromagnetic wave shielding and absorbing materials (Chemical Industry Press, Beijing2007), pp.20-40 (In Chinese).

[3] Adam J. Douglas, Davis Lionel E, etc: IEEE Trans. on Microwave Theory and Technology Vol. 50(2002), p.721.

[4] S.H. Wang, F. Wen and W.J. Hao: Environmental Science and Technology Vol. 29(2006), pp.96-98(In Chinese).

[5] W.J. Hao: Science and technology of foreign building materials Vol. 25 (2004), pp.74-76(In Chinese).

[6] T. simizu: Absorb and shield of electromagnetic wave, (economic and technological`s book, Japan1989) , pp.150-180.

[7] L.D. Liu, Y.P. Duan, S.H. Liu, L.Y. Chen and J.B. Guo. J: Magn. Magn. Mater Vol. 332(2010), pp.1736-1740.

[8] Y.B. Feng, T. Qiu, C.Y. Shen and X.Y. Li: IEEE Trans. Magn. Vol. 42 (2006), pp.363-367.

[9] Y.C. Qing, W.C. Zhou, F. Luo and D.M. Zhu: J. Magn. Magn. Mater Vol. 321(2009), pp.25-27.

[10] Z.F. He, Y. Fang, X.J. Wang and H. Pang: Synthetic Metals Vol. 161( 2011), pp.420-425.

[11] G.X. Xiong, X.P. Deng, D.H. Zheng and C.H. Liu: Acta Materiae Composite Sinica, Vol. 25 (2008), pp.35-39(In Chinese).

[12] M. Fan, Z.F. He and H. Pang: Synthetic Metals Vol. 166(2013), pp.1-6.

[13] Y. Nayitou: EMWave Absorber ( Omu press, Japan, Tokyo1987), pp.30-50.

[14] O. Hoshimoto: Introduction to Wave Absorber ( Morihoku Press, Japan, Tokyo1997), pp.20-50.

[15] W. Stober, A. Fink and E. Bohn. J: Colloid Interface Sci Vol. 26(1968), p.62.

[16] Y.C. Qing, W.C. Zhou, S. Jia, F. Luo and D.M. Zhu: Physica B Vol. 406(2011), pp.777-780.

[17] F.C. Li, H. Huang and Z.C. Guo: Journal of Functional Polymers Vol. 24 (2011), pp.353-358 (In Chinese).

[18] H.X. Jiong, Q.L. Li, Y. Ye and X.F. Yang: Journal of Functional Polymers Vol. 25 (2012), pp.393-396 (In Chinese).

[19] Y.B. Zhu, Y.C. Qing, S. Jia, W.C. Zhou, F. Luo and D.M. Zhu: Materials Review Vol. 24 (2010), pp.9-11(In Chinese).
