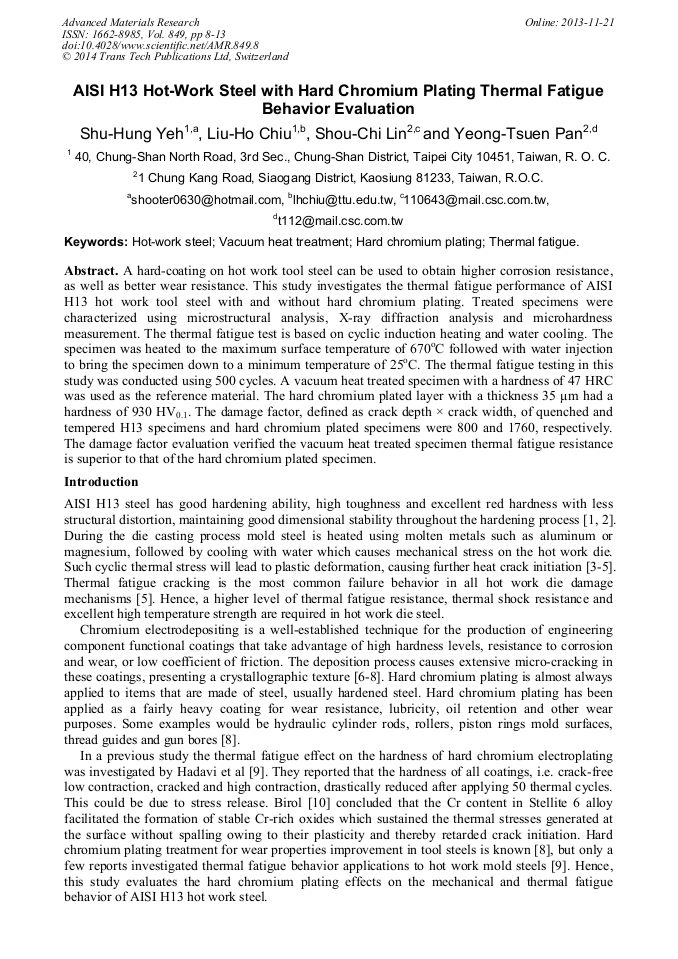

AISI H13 Hot-Work Steel with Hard Chromium Plating Thermal Fatigue Behavior Evaluation

Abstract:

A hard-coating on hot work tool steel can be used to obtain higher corrosion resistance, as well as better wear resistance. This study investigates the thermal fatigue performance of AISI H13 hot work tool steel with and without hard chromium plating. Treated specimens were characterized using microstructural analysis, X-ray diffraction analysis and microhardness measurement. The thermal fatigue test is based on cyclic induction heating and water cooling. The specimen was heated to the maximum surface temperature of 670°C followed with water injection to bring the specimen down to a minimum temperature of 25°C. The thermal fatigue testing in this study was conducted using 500 cycles. A vacuum heat treated specimen with a hardness of 47 HRC was used as the reference material. The hard chromium plated layer with a thickness 35 μm had a hardness of 930 HV_0.1. The damage factor, defined as crack depth × crack width, of quenched and tempered H13 specimens and hard chromium plated specimens were 800 and 1760, respectively. The damage factor evaluation verified the vacuum heat treated specimen thermal fatigue resistance is superior to that of the hard chromium plated specimen.

• Periodical: Advanced Materials Research (Volume 849)
• Pages: 8-13
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.849.8
• Online since: November 2013
• Authors: Shu Hung Yeh, Liu Ho Chiu, Shou Chi Lin, Yeong Tsuen Pan
• Keywords: Hard Chromium Plating, Hot-Work Steel, Thermal Fatigue, Vacuum Heat Treatment

References

[1] .K. Rafi, G.D.J. Ram, G. Phanikumar and K.P. Rao: Mater. and Des. Vol. 32 (2011), p.82.

[2] D.S. Ma, J. Zhou, Z.Z. Chen, Z.K. Zhang, Q.A. Chen and D.H. Li: J. Iron Steel Res. Vol. 16(5) (2009), p.56.

[3] M. Koneshlou, K.M. Asl and F. Khomamizadeh: Cryogenics Vol. 51 (2011), p.55.

[4] C. Wang, H. Zhou, P.Y. Lin, N. Sun, Q. Guo and P. Zhang: Mat. Desig. Vol. 31 (2010), p.3442.

[5] P. Ans, J. Dillea and M. Degrez: Surf. Coat. Technol. Vol. 205 (2011), p.3378.

[6] M.P. Nascimento, R.C. Souza, I.M. Miguel, W.L. Pigatin and H.J.C. Voorwald: Surf. Coat. Technol. Vol. 138 (2001), p.113.

[7] J. Pina, A. Dias, M. Francois and J.L. Lebrun: Surf. Coat. Technol. Vol. 96 (1997), p.148.

[8] T. Sahraoui, S. Guessasma, N.E. Fenineche, G. Montavon and C. Coddet: Mat. Lett. Vol. 58 (2004), p.654.

[9] S.M.M. Hadavi, A.A. Zadeh and M.S. Jamshidi: J. of Mat. Proc. Technol. Vol. 147 (2004), p.385.

[10] Y. Birol: Mater. Sci. Eng. A Vol. 527 (2010), p.6091.

[11] S.H. Yeh, L.H. Chiu, W.C. Lo and C.L. Huang: Mat. Trans. Vol. 54 (2013), p.1187.

[12] A. Persson, S. Hogmark and J. Bergstrom: Surf. Coat. Technol. Vol. 191 (2005), p.216.
