Investigation on Soldering High Volume Fraction SiC Particle Reinforced Aluminum Metal Matrix Composites

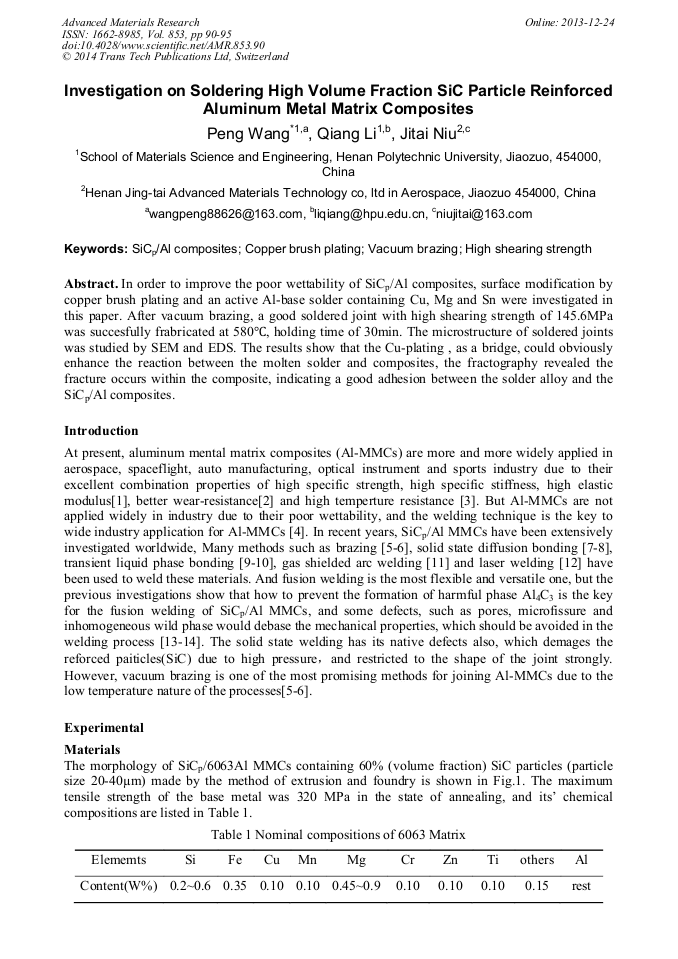

Article Preview

Abstract:

In order to improve the poor wettability of SiCp/Al composites, surface modification by copper brush plating and an active Al-base solder containing Cu, Mg and Sn were investigated in this paper. After vacuum brazing, a good soldered joint with high shearing strength of 145.6MPa was succesfully frabricated at 580°C, holding time of 30min. The microstructure of soldered joints was studied by SEM and EDS. The results show that the Cu-plating , as a bridge, could obviously enhance the reaction between the molten solder and composites, the fractography revealed the fracture occurs within the composite, indicating a good adhesion between the solder alloy and the SiCp/Al composites.

You might also be interested in these eBooks
Materials Science, Machinery and Energy Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volume 853)

Pages:

90-95

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.853.90

Citation:

Cite this paper

Online since:

December 2013

Authors:

Peng Wang*, Qiang Li, Ji Tai Niu

Keywords:

Copper Brush Plating, High Shearing Strength, SiCp/Al Composites, Vacuum Brazing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] T.S. Srivatsan, I.A. Ibrahim, F.A. Mohamed, and E.J. Lavernia, Processing Techniques for Particulate Reinforced Metal Aluminium Matrix Composites, Journal of Materials Science, 1991, 26 (22): 5965–5978.

DOI: 10.1007/bf01113872

Google Scholar

[2] D.J. Lioyd, Particle Reinforced Aluminum and Magnesium Matrix Composites, International Materials Reviews, 1994, 39(1): 1–23.

Google Scholar

[3] I.A. Ibrahim, F.A. Mohamed, and E.J. Lavernia, Particulate Reinforced Metal Matrix Composites—A Review, Journal of Materials Science, 1991, 26(5): 1137–1156.

DOI: 10.1007/bf00544448

Google Scholar

[4] ELLS, M B D, Joining of aluminum based metal matrix composites, International Materials Reviews, 1996, 41(2): 41-58.

Google Scholar

[5] Lu Jin-Bin, MU Yun-Chao, LUO Xiang-Wei, Niu Ji-Tai, A new method for soldering particle-reinforced aluminum metal matrix, Materials Science and Engineering B, 2012, 177(20): 1759- 1763.

DOI: 10.1016/j.mseb.2012.08.001

Google Scholar

[6] Niu Ji-Tai, LUO Xiang-Wei, TIAN Hao, Josip Brnic, Vacuum brazing of aluminium metal matrix composite (55vol. % SiCp/A356) using aluminium-based filler alloy, Materials Science and Engineering B, 2012, 177(19): 1707– 1711.

DOI: 10.1016/j.mseb.2011.12.042

Google Scholar

[7] M. Muratoglu, O. Yilmaz, M. Aksoy, Investigation on diffusion bonding characteristics of aluminum metal matrix composites (Al/SiCp) with pure aluminum for different heat treatments, Journal of materials processing Technology, 2006, 178(1-3): 211-217.

DOI: 10.1016/j.jmatprotec.2006.03.168

Google Scholar

[8] FENG Tao, CHEN Xi-Zhang, WU Lu-Hai, LOU Song-Nian, Diffusion welding of SiCp/2014Al compositesusing Ni as interlayer, Journal of University of Science and Technology Beijing, Mineral, Metallurgy, Material, 2006, 13(3): 267-271.

DOI: 10.1016/s1005-8850(06)60056-x

Google Scholar

[9] J. Maitya, T.K. Palb, R. Maitic, Transient liquid phase diffusion bonding of 6061-15wt%SiCp in argon environment, Journal of Materials Processing Technology, 2009, 209(7): 3568–3580.

DOI: 10.1016/j.jmatprotec.2008.08.015

Google Scholar

[10] HUANG Ji-Hua, DONG Yue-Ling, WAN Yun, ZHAO Xing-Ke, Zhang Hua, Investigation on reactive diffusion bonding of SiCp/6063 MMC by using mixed powders as interlayers, Journal of Materials Processing Technology, 2007, 190(1-3): 312–316.

DOI: 10.1016/j.jmatprotec.2007.02.028

Google Scholar

[11] LEI Yu-Cheng, ZHANG Zhen, NIE Jia-Jun, CHEN Xi-Zhang, Effect of Ti-Al on microstructures and mechanical properties of plasma arc in-situ welded joint of SiCp/Al MMCs, Transactions of Nonferrous Metals Society of China, 2008, 18(4): 809-813.

DOI: 10.1016/s1003-6326(08)60140-5

Google Scholar

[12] HAN Zong-jie, JU Jin-long, XUE Song-bai, FANG Dian-song, WANG Jim-xin, YAO Li-bua, Microstructures of Sn-Ag-Cu lead-free soldered joints with diode-laser soldering, Journal of Central South University: Science and Technology, 2006, 37(2): 229-234. (in Chinese).

DOI: 10.1016/s1003-6326(07)60023-5

Google Scholar

[13] A. Ureina, M.D. Escalera, and L. Gil, Influence of Interface Reactions on Fracture Mechanisms in TIG Arc-Welded Aluminium Matrix Composites, Composite Science and Technology, 2000, 60(4); 613–622.

DOI: 10.1016/s0266-3538(99)00168-2

Google Scholar

[14] D. Storjohann, O.M. Barabash, S.S. Babu, S.A. David, P.S. Sklad, and E.E. Bloom, Fusion and Friction Stir Welding of Aluminum Metal Matrix Composites, Metallurgical Materials Transactions A, 2005, 36(11): 3237–3247.

DOI: 10.1007/s11661-005-0093-4

Google Scholar

[15] A. Alonso, A. Pamies, J. Narciso, C. Garcia-Cordovilla, E. Louis, Evalution of the wettability of liquid aluminum with ceramic particulates (SiC, TiC, Al2O3) by means of pressure infiltration, Metallurgical Transactions A , 1993, 24(6) : 1423–1432.

DOI: 10.1007/bf02668210

Google Scholar
