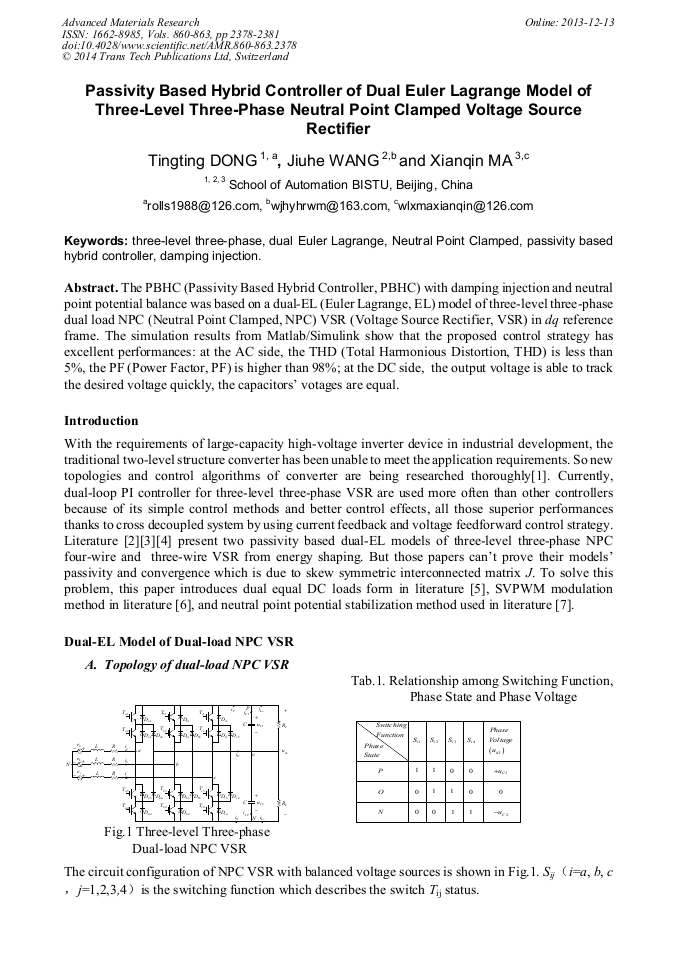

Passivity Based Hybrid Controller of Dual Euler Lagrange Model of Three-Level Three-Phase Neutral Point Clamped Voltage Source Rectifier

Abstract:

The PBHC (Passivity Based Hybrid Controller, PBHC) with damping injection and neutral point potential balance was based on a dual-EL (Euler Lagrange, EL) model of three-level three-phase dual load NPC (Neutral Point Clamped, NPC) VSR (Voltage Source Rectifier, VSR) in dq reference frame. The simulation results from Matlab/Simulink show that the proposed control strategy has excellent performances: at the AC side, the THD (Total Harmonious Distortion, THD) is less than 5%, the PF (Power Factor, PF) is higher than 98%; at the DC side, the output voltage is able to track the desired voltage quickly, the capacitors votages are equal.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 2378-2381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.2378
• Online since: December 2013
• Authors: Ting Ting Dong*, Jiu He Wang, Xian Qin Ma
• Keywords: Damping Injection, Dual Euler Lagrange, Neutral Point Clamped, Passivity Based Hybrid Controller, Three-Level Three-Phase

References

[1] HE Fengyou, DENG Yuan, ZHANG Zhen-fei, MA Zhi-xun. An Improved SVPWM Algorithm for Three-level Converter [J]. Power Electronics, 2008, vol 42, pp.6-7, 12.

[2] Majid Mehrasa, Saeed Lesan, Arash Abedi, et al. Passivity-based control with dual Lagrangian model of three-level three-phase NPC voltage-source rectifier[J]. European Journal of Basic and Applied Scientific Research, 2011, vol 1, pp.2379-2393.

DOI: 10.1109/cpe.2009.5156070

[3] Majid Mehrasa, Saeed Lesan, Arash Abedi, et al. Passivity-based control with dual Lagrangian model of four-wire three-level three-phase NPC voltage-source rectifier[J]. European Journal of Scientific Research, 2009, vol 32, pp.572-585.

DOI: 10.1109/cpe.2009.5156070

[4] XU Shengsheng, WANG Jiu-he, MU Xiao-bin, GU Wen. Research on a Control Method of Three-level Voltage Source PWM Rectifier Based on Passivity-based Control and PI Control of EL Mode [J]. Journal of Power Supply No. 6, 2011, vol 6, pp.45-48, 53.

DOI: 10.4028/www.scientific.net/amr.466-467.1120

[5] H. Kanaan, K. Al-Haddad and F. Fnaiech. Modelling and control of three-phase/switch/level fixed-frequency PWM rectifier: state-space averaged model [J]. IEEE Proc. Electr. Power Appl. 2005, vol 152.

DOI: 10.1049/ip-epa:20041042

[6] LI Qiming. Method and Simulation of Three-Level SVPWM Control Strategy [D]. Master's Degree Theses, School of Electrical Engineering of Hefei University of Technology, (2008).

[7] YUAN Chunming. Researeh on the Key Problems of SVPWM for NPC Converters [D]. Master's Degree Theses, School of Electrical Engineering of Hefei University of Technology, (2008).

[8] WANG Jiuhe. Passive Control Theory and Applications [M]. Beijing：Electronic Industry Press, (2010).

[9] WANG Jiuhe. Nonlinear Control Theory of Voltage Source PWM Rectifier [M]. Beijing: Machinery Industry Press, (2008).

[10] ZHANG Xing, ZHANG Chong-wei. PWM Rectifier and Control Theory [M]. Beijing: Machinery Industry Press, (2003).

[11] CHEN Jian. Power Electronics: Power Electronic Conversion and Control Technology [M]. Beijing: Higher Education Press, (2002).
