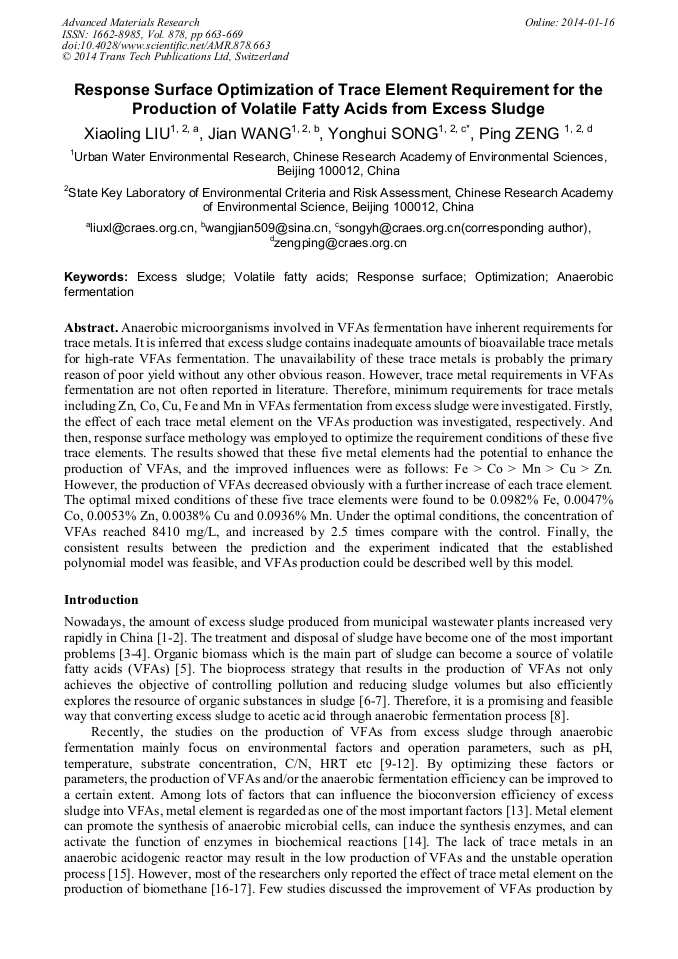

Response Surface Optimization of Trace Element Requirement for the Production of Volatile Fatty Acids from Excess Sludge

Abstract:

Anaerobic microorganisms involved in VFAs fermentation have inherent requirements for trace metals. It is inferred that excess sludge contains inadequate amounts of bioavailable trace metals for high-rate VFAs fermentation. The unavailability of these trace metals is probably the primary reason of poor yield without any other obvious reason. However, trace metal requirements in VFAs fermentation are not often reported in literature. Therefore, minimum requirements for trace metals including Zn, Co, Cu, Fe and Mn in VFAs fermentation from excess sludge were investigated. Firstly, the effect of each trace metal element on the VFAs production was investigated, respectively. And then, response surface methology was employed to optimize the requirement conditions of these five trace elements. The results showed that these five metal elements had the potential to enhance the production of VFAs, and the improved influences were as follows: Fe > Co > Mn > Cu > Zn. However, the production of VFAs decreased obviously with a further increase of each trace element. The optimal mixed conditions of these five trace elements were found to be 0.0982% Fe, 0.0047% Co, 0.0053% Zn, 0.0038% Cu and 0.0936% Mn. Under the optimal conditions, the concentration of VFAs reached 8410 mg/L, and increased by 2.5 times compare with the control. Finally, the consistent results between the prediction and the experiment indicated that the established polynomial model was feasible, and VFAs production could be described well by this model.

• Periodical: Advanced Materials Research (Volume 878)
• Pages: 663-669
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.878.663
• Online since: January 2014
• Authors: Xiao Ling Liu, Jian Wang, Yong Hui Song, Ping Zeng
• Keywords: Anaerobic Fermentation, Excess Sludge, Optimization, Response Surface, Volatile Fatty Acids

References

[1] B. Xi, X.L. Guo, H. Wang, J.X. Duan, Excess sludge reduction using pilot-scale lysis-cryptic growth system integrated ultrasonic/alkaline disintegration and hydrolysis/acidogenesis pretreatment, Bioresour. Technol. 116(2012) 441-447.

DOI: 10.1016/j.biortech.2012.03.091

[2] Y.Y. Yan, H.L. Chen, W.Y. Xu, Q.B. He, Q. Zhou, Enhancement of biochemical methane potential from excess sludge with low organic content by mild thermal pretreatment, Biochem. Eng. J. 70(2013) 127-134.

DOI: 10.1016/j.bej.2012.10.011

[3] G.H. Wang, J. Sui, H.S. Shen, S.K. Liang, X.M. He, M. J Zhang, Y. Z Xie, L.Y. Li, Y.Y. Hu, Reduction of excess sludge production in sequencing batch reactor through incorporation of chlorine dioxide oxidation, J. Hazard. Mater. 192(2011) 93-98.

DOI: 10.1016/j.jhazmat.2011.04.099

[4] A.R. Mohammadi, N. Mehrdadi, G.N. Bidhendi, A. Torabian, Excess sludge reduction using ultrasonic waves in biological wastewater treatment, Desalination. 275(2011) 67-73.

DOI: 10.1016/j.desal.2011.02.030

[5] R. Tan, K. Miyanaga, D. Uy, Y. Tanji, Effect of heat-alkaline treatment as a pretreatment method on volatile fatty acid production and protein degradation in excess sludge, pure proteins and pure cultures, Bioresour. Technol. 118(2012) 390-398.

DOI: 10.1016/j.biortech.2012.05.064

[6] G.H. Zhuo, Y.Y. Yan, X.J. Tan, X.H. Dai, Q. Zhou, Ultrasonic-pretreated waste activated sludge hydrolysis and volatile fatty acid accumulation under alkaline conditions: Effect of temperature, J. Biotechnol. 159(2012) 27-31.

DOI: 10.1016/j.jbiotec.2012.01.005

[7] X. Yang, M. Du, D.J. Lee, C. Wan, L. Zheng, G.Y. Li, J.S. Chang, Enhanced production of volatile fatty acids (VFAs) from sewage sludge by β-cyclodextrin, Bioresour. Technol. 110(2012) 688-691.

DOI: 10.1016/j.biortech.2011.08.122

[8] Z.Y. J, G.L. Chen, Y. G Chen, Effects of waste activated sludge and surfactant addition on primary sludge hydrolysis and short-chain fatty acids accumulation, Bioresour. Technol. 101(2010) 3457-3462.

DOI: 10.1016/j.biortech.2009.12.117

[9] H.L. X, J.L. Chen, H. Wang, H.C. Shi, Influences of volatile solid concentration, temperature and solid retention time for the hydrolysis of waste activated sludge to recover volatile fatty acids, Bioresour. Technol. 119(2012) 285-292.

DOI: 10.1016/j.biortech.2012.05.126

[10] H. Chen, H.Y. Wu, Optimization of volatile fatty acid production with co-substrate of food wastes and dewatered excess sludge using response surface methodology, Bioresour. Technol. 101(2010) 5487-5493.

DOI: 10.1016/j.biortech.2010.02.013

[11] L.Y. Feng, H. Wang, Y.G. Chen, Q. Wang, Effect of solids retention time and temperature on waste activated sludge hydrolysis and short-chain fatty acids accumulation under alkaline conditions in continuous-flow reactors, Bioresour. Technol. 100(2009).

DOI: 10.1016/j.biortech.2008.05.028

[12] P. Zhang, Y.G. Chen, Q. Zhou, Waste activated sludge hydrolysis and short-chain fatty acids accumulation under mesophilic and thermophilic conditions: Effect of pH, Water Res. 43(2009) 3735-3742.

DOI: 10.1016/j.watres.2009.05.036

[13] H.M. Lo, C.F. Chiang, H.C. Tsao, T.Y. Pai, M.H. Liu, T.A. Kurniawan, K.P. Chao, C.T. Liou, K.C. Lin, C.Y. Chang, S.C. Wang, C.J. Banks, C.Y. Lin, W.F. Liu, P.H. Chen, C.K. Chen, H.Y. Chiu, H.Y. Wu, T.W. Chao, Y.R. Chen, D.W. Liou, F.C. Lo, Effects of spiked metals on the MSW anaerobic digestion, Waste Manage. Res. 30(2012).

DOI: 10.1177/0734242x10383079

[14] J.B. Glass, V.J. Orphan, Trace metal requirements for microbial enzymes involved in the production and consumption of methane and nitrous oxide, Microbiol. 61(2012) 1-19.

DOI: 10.3389/fmicb.2012.00061

[15] B. Demirel, P. Scherer, Trace element requirements of agricultural biogas digesters during biological conversion of renewable biomass to methane, Biomass Bioenergy, 35(2011) 992-998.

DOI: 10.1016/j.biombioe.2010.12.022

[16] M. Takashima, K. Shimada, R.E. Speece. Minimum requirements for trace metals (Iron, Nickel, Cobalt, and Zinc) in thermophilic and mesophilic methane fermentation from glucose. Water Environ. Res. 83(2011) 339-346.

DOI: 10.2175/106143010x12780288628895

[17] H Qiang, D Lang, Y Li, High-solid mesophilic methane fermentation of food waste with an emphasis on Iron, Cobalt, and Nickel requirements, Bioresour. Technol. 103(2012) 21-27.

DOI: 10.1016/j.biortech.2011.09.036

[18] M.H. Zandvoort, E.D. Hullebusch, F.G. Fermoso, Trace metals in anaerobic granular sludge reactors: bioavailability and dosing strategies, Engin. Life Sci. 6(2006) 293-301.

DOI: 10.1002/elsc.200620129

[19] F.G. Fermoso, J. Bartacek, S. Jansen, Metal supplementation to UASB bioreactors: from cell-metal interactions to full-scale application, Sci. Total Environ. 407(2009) 3652-3667.

DOI: 10.1016/j.scitotenv.2008.10.043

[20] X.L. Liu, H. Liu, J.H. Chen, J. Chen, Enhancement of solubilization and acidification of waste activated sludge by pretreatment, Waste Manage. 28(2008) 2614-2622.

DOI: 10.1016/j.wasman.2008.02.001
