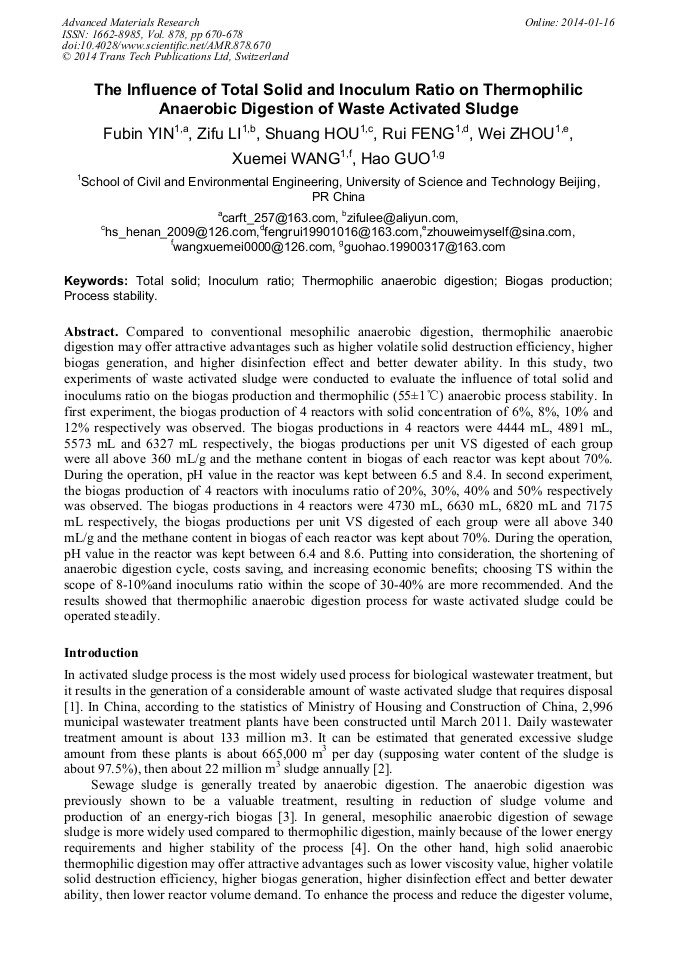

The Influence of Total Solid and Inoculum Ratio on Thermophilic Anaerobic Digestion of Waste Activated Sludge

Abstract:

Compared to conventional mesophilic anaerobic digestion, thermophilic anaerobic digestion may offer attractive advantages such as higher volatile solid destruction efficiency, higher biogas generation, and higher disinfection effect and better dewater ability. In this study, two experiments of waste activated sludge were conducted to evaluate the influence of total solid and inoculums ratio on the biogas production and thermophilic (55±1°C) anaerobic process stability. In first experiment, the biogas production of 4 reactors with solid concentration of 6%, 8%, 10% and 12% respectively was observed. The biogas productions in 4 reactors were 4444 mL, 4891 mL, 5573 mL and 6327 mL respectively, the biogas productions per unit VS digested of each group were all above 360 mL/g and the methane content in biogas of each reactor was kept about 70%. During the operation, pH value in the reactor was kept between 6.5 and 8.4. In second experiment, the biogas production of 4 reactors with inoculums ratio of 20%, 30%, 40% and 50% respectively was observed. The biogas productions in 4 reactors were 4730 mL, 6630 mL, 6820 mL and 7175 mL respectively, the biogas productions per unit VS digested of each group were all above 340 mL/g and the methane content in biogas of each reactor was kept about 70%. During the operation, pH value in the reactor was kept between 6.4 and 8.6. Putting into consideration, the shortening of anaerobic digestion cycle, costs saving, and increasing economic benefits; choosing TS within the scope of 8-10%and inoculums ratio within the scope of 30-40% are more recommended. And the results showed that thermophilic anaerobic digestion process for waste activated sludge could be operated steadily.

• Periodical: Advanced Materials Research (Volume 878)
• Pages: 670-678
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.878.670
• Online since: January 2014
• Authors: Fu Bin Yin, Zi Fu Li, Shuang Hou, Rui Feng, Wei Zhou, Xue Mei Wang, Hao Guo
• Keywords: Biogas Production, Inoculum Ratio, Process Stability, Thermophilic Anaerobic Digestion, Total Solid

References

[1] Chi, Y., et al., Enhancement of thermophilic anaerobic digestion of thickened waste activated sludge by combined microwave and alkaline pretreatment. Journal of Environmental Sciences. 23(2011) 1257-1265.

DOI: 10.1016/s1001-0742(10)60561-x

[2] Deleris S, Geaugey V, Camacho P, et al. Minimization of sludge production in biological processes an alternative solution for the problem of sludge disposal. Water Science and Technology. 46(2002) 63-70.

DOI: 10.2166/wst.2002.0291

[3] Abe, N., et al., Development of an efficient process for the treatment of residual sludge discharged from an anaerobic digester in a sewage treatment plant. Bioresource Technology. 102(2011) 7641-7644.

DOI: 10.1016/j.biortech.2011.05.030

[4] Climent, M., et al., Effects of thermal and mechanical pretreatments of secondary sludge on biogas production under thermophilic conditions. Chemical Engineering Journal. 133(2007) 335-342.

DOI: 10.1016/j.cej.2007.02.020

[5] FerrerIvet, Felicitas Vazquez, Xavier Font. Long term operation of a thermophilic anaerobic reactor: Process stability and efficiency at decreasing sludge retention time. Bioresource Technology. 101(2010) 2972-2980.

DOI: 10.1016/j.biortech.2009.12.006

[6] APHA-AWWA-WPCF. Standard methods for the examination of water and wastewater, 20th ed. Washington, DC. (1998).

[7] Harikishan S, Shihwu Sung. Cattle waste treatment and Class A biosolid production using temperature-phased anaerobic digester. Advances in Environmental Research. 7(2003) 701-706.

DOI: 10.1016/s1093-0191(02)00034-5

[8] Liu Xiaoling, Li Shizhong, Liu Jianshuang, etal. Evaluation of high-solids anaerobic digestion process for converting excess sludge to biogas. Acta Scientiae Circumstantiae. 31(2001) 955-963.

[9] Forster-Carneiro, T, Pérez, M., Romero, L.I. Anaerobic digestion of municipal solid wastes: dry thermophilic performance. Bioresource Technology. 99(2008) 8180-8184.

DOI: 10.1016/j.biortech.2008.03.021

[10] Kim HW, Han SK, Shin HS. Anaerobic co-digestion of sewage sludge and food waste using temperature-phased anaerobic digestion process. Water Science and Technology. 50(2004) 107-114.

DOI: 10.2166/wst.2004.0547

[11] Shim H S, Kang S T. Characteristics and fates of soluble microbial products in ceramic membrane bioreactor at various sludge retention times. Water Research. 37(2003) 121-127.

DOI: 10.1016/s0043-1354(02)00249-x

[12] Alexis Mottet, Emilie Francois, Eric Latrille, et al. Estimating anaerobic biodegradability indicators for waste activated sludge. Chemical Engineering Journal. 160(2010) 488-496.

DOI: 10.1016/j.cej.2010.03.059

[13] Riau V, De la Rubia MA, Perez M. Temperature-phased anaerobic digestion (TPAD) to obtain Class A biosolids. A discontinuous study. Bioresource Technology. 101(2010) 65-70.

DOI: 10.1016/j.biortech.2009.07.072

[14] Palatsi J, Gimenez-Lorang A, Ferrer I, etal. 2009. Start-up strategies of thermophilic anaerobic digestion of sewage sludge. Water Science and Technology. 59(9): 1777-1784.

DOI: 10.2166/wst.2009.180

[15] FerrerIvet., Ponsa Sergio., Vazquez Felicitas, etal. Increasing biogas production bythermal (70℃) sludge pre-treatment prior to thermophilic anaerobic digestion. Biochemical Engineering Journal. 42(2008) 186-192.

DOI: 10.1016/j.bej.2008.06.020

[16] MoonilKim, Young-Ho Ahn, R. E. Speece. Comparative process stability and efficiency of anaerobic digestion; mesophilic VS. thermophilic. Water Resource. 36(2002) 4369-4385.

DOI: 10.1016/s0043-1354(02)00147-1

[17] Irene Siegert, Charles Banks. The effect of volatile fatty acid additions on the anaerobicdigestion of cellulose and glucose in batch reactors. Process Biochemistry. 40(2005) 3412-3418.

DOI: 10.1016/j.procbio.2005.01.025

[18] DumasC., PerezS., PaulE., et al. Combined thermophilic aerobic process and conventional anaerobic digestion: Effect on sludge biodegradation and methane production. Bioresource Technology. 101(2010) 2629-2636.

DOI: 10.1016/j.biortech.2009.10.065

[19] Li Laiqing, Li xiujin, ZhengMingxia, et al. Comparison of anaerobic biogas ification performances of concentrated and dewatered sludges from different locations. Journal of Beijing University of Chemical Technology. 34(2007) 16-19.
