Study of Inclusion’s Source and Character in Different T[O] Content

Abstract:

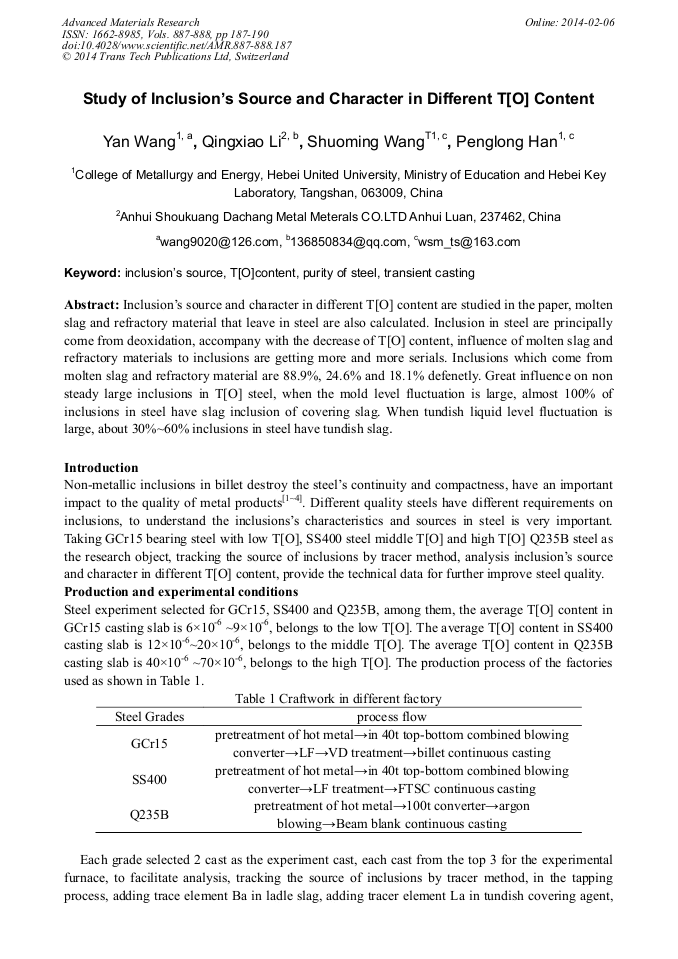

Inclusion’s source and character in different T[ content are studied in the paper, molten slag and refractory material that leave in steel are also calculated. Inclusion in steel are principally come from deoxidation, accompany with the decrease of T[ content, influence of molten slag and refractory materials to inclusions are getting more and more serials. Inclusions which come from molten slag and refractory material are 88.9%, 24.6% and 18.1% defenetly. Great influence on non steady large inclusions in T[ steel, when the mold level fluctuation is large, almost 100% of inclusions in steel have slag inclusion of covering slag. When tundish liquid level fluctuation is large, about 30%~60% inclusions in steel have tundish slag.

• Periodical: Advanced Materials Research (Volumes 887-888)
• Pages: 187-190
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.887-888.187
• Online since: February 2014
• Authors: Yan Wang*, Qing Xiao Li, Shuo Ming Wang, Peng Long Han
• Keywords: Inclusion’s Source, Purity of Steel, T[O]Content, Transient Casting

References

[1] Kiedssling R. Non-metallic Inclusion in Steel[M]. London: Met. Soc, 1978: 11~62.

[2] Stouvenot F, Gaye H. Secondry Steelmaking Slag Treatment for Inclusions Control in Semi-killed Steels[C]. Electric Furnace Conference Proceedings, 1994, (52): 423~428.

[3] Nishi S. Melting of Clean Maraging Steel by Vacuum Induction Method[R]. R & D Kobe Steel Report, 1989, 39(1): 73.

[4] Gatellier C, Olette M. Kinetics of high temperature[J]. Metallurgy, 1979, (79): 377~386.
