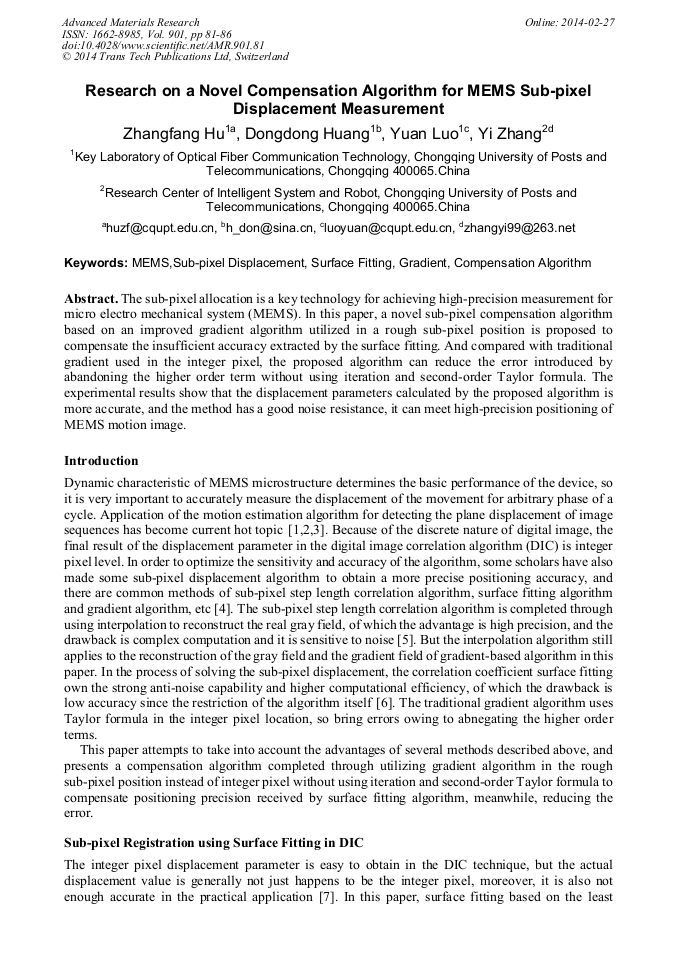

Research on a Novel Compensation Algorithm for MEMS Sub-Pixel Displacement Measurement

Abstract:

The sub-pixel allocation is a key technology for achieving high-precision measurement for micro electro mechanical system (MEMS). In this paper, a novel sub-pixel compensation algorithm based on an improved gradient algorithm utilized in a rough sub-pixel position is proposed to compensate the insufficient accuracy extracted by the surface fitting. And compared with traditional gradient used in the integer pixel, the proposed algorithm can reduce the error introduced by abandoning the higher order term without using iteration and second-order Taylor formula. The experimental results show that the displacement parameters calculated by the proposed algorithm is more accurate, and the method has a good noise resistance, it can meet high-precision positioning of MEMS motion image.

• Periodical: Advanced Materials Research (Volume 901)
• Pages: 81-86
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.901.81
• Online since: February 2014
• Authors: Zhang Fang Hu*, Dong Dong Huang, Yuan Luo, Yi Zhang
• Keywords: Compensation Algorithm, Gradient, MEMS, Sub-Pixel Displacement, Surface Fitting

References

[1] Zhengzong Tang, Jin Liang, Zhenzhong Xiao et al. Large deformation measurement scheme for 3D digital image correlation method[J]. Optics and Lasers in Engineering, 2012, 50(2): 122-130.

DOI: 10.1016/j.optlaseng.2011.09.018

[2] Ma SP, Zhao ZL, Wang X. Mesh-based digital image correlation method using higher order isoparametric elements[J]. J Strain Anal Eng Design, 2012, 47(3): 163–75.

DOI: 10.1177/0309324712437488

[3] Manuel Guizar-Sicairos, Samuel T. Thurman, James R. Fienup et al. Efficient subpixel image registration algorithms[J]. Optics Letters, 2008, 33(2): 156-158. DOI: 10. 1364/OL. 33. 000156.

DOI: 10.1364/ol.33.000156

[4] Pan B, Xie HM, Wang ZY. Equivalence of digital image correlation criteria for pattern matching. Appl Opt , 2010, 49: 5501–5509.

DOI: 10.1364/ao.49.005501

[5] Hu ZX, Xie HM, Lu J, Hua T, Zhu JG. Study of the performance of different subpixel image correlation methods in 3D digital image correlation[J]. Appl Opt, 2010, 49: 4044–51.

DOI: 10.1364/ao.49.004044

[6] Zhou YH, Pan B, Chen YQ. Large deformation measurement using digital image correlation: a full automatic approach , 2012. Appl Opt 51(31): 7674–7683.

DOI: 10.1364/ao.51.007674

[7] Fazzini M, Mistou S, Dalverny O, Robert L. Study of image characteristics on digital image correlation error assessment[J]. Opt Lasers Eng , 2010, 48(3): 335–339.

DOI: 10.1016/j.optlaseng.2009.10.012

[8] Y. Shan G.W. Boon. Sub-pixel location of edges with non-uniform blurring : a finite closed-form approach[J]. Image and Vision Computing, 2000, 18(13): 1015-1023.

DOI: 10.1016/s0262-8856(00)00040-8

[9] Xu L. Jia J. Kang S.B. et al. Improving sub-pixel correspondence through upsampling[J]. Computer vision and image understanding, 2012, 116(2): 250-261.

DOI: 10.1016/j.cviu.2011.11.003

[10] Tong W. Subpixel image registration with reduced bias[J]. Opt Lett, 2011; 36: 763–5.

DOI: 10.1364/ol.36.000763
