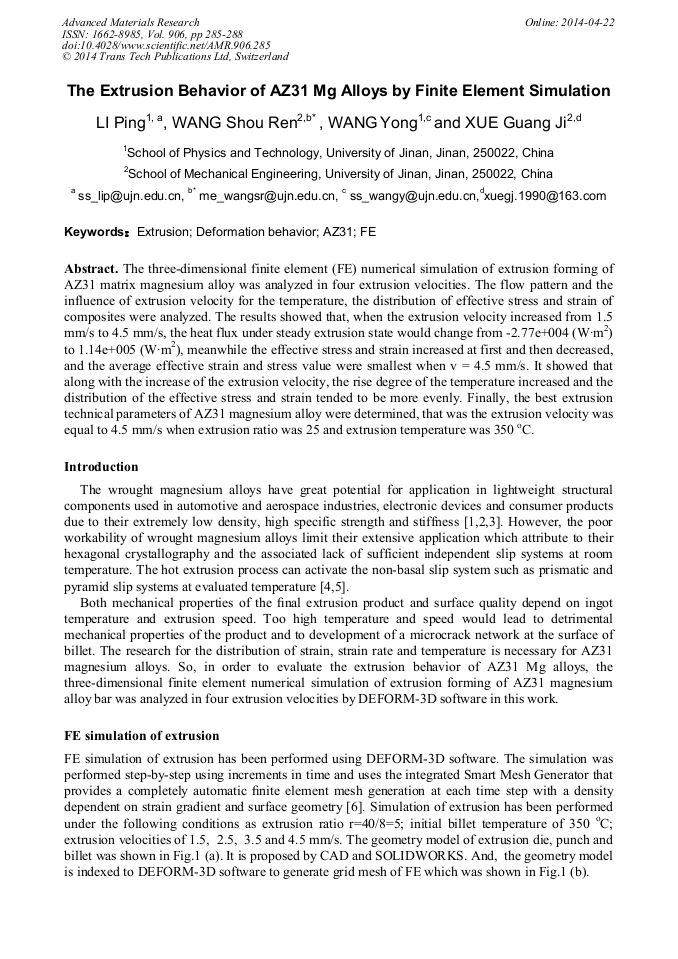

The Extrusion Behavior of AZ31 Mg Alloys by Finite Element Simulation

Abstract:

The three-dimensional finite element (FE) numerical simulation of extrusion forming of AZ31 matrix magnesium alloy was analyzed in four extrusion velocities. The flow pattern and the influence of extrusion velocity for the temperature, the distribution of effective stress and strain of composites were analyzed. The results showed that, when the extrusion velocity increased from 1.5 mm/s to 4.5 mm/s, the heat flux under steady extrusion state would change from-2.77e+004 (Wm²) to 1.14e+005 (Wm²), meanwhile the effective stress and strain increased at first and then decreased, and the average effective strain and stress value were smallest when v = 4.5 mm/s. It showed that along with the increase of the extrusion velocity, the rise degree of the temperature increased and the distribution of the effective stress and strain tended to be more evenly. Finally, the best extrusion technical parameters of AZ31 magnesium alloy were determined, that was the extrusion velocity was equal to 4.5 mm/s when extrusion ratio was 25 and extrusion temperature was 350 °C.

• Periodical: Advanced Materials Research (Volume 906)
• Pages: 285-288
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.906.285
• Online since: April 2014
• Authors: Ping Li, Shou Ren Wang*, Yong Wang, Guang Ji Xue
• Keywords: AZ31, Deformation Behavior, Extrusion, Fe

References

[1] S.R. Wang, L.H. Song, S. Kang, Deformation behavior and microstructure evolution of wrought magnesium alloys, Chin. J. Mech. Eng-En. 26 (2013) 437-447.

DOI: 10.3901/cjme.2013.03.437

[2] M. Fletcher, A. Siebert-Timmer, L. Bichler, D. Sediako, Evolution of Strain and Microstructure During Creep of Wrought AE42 and ZE10 Magnesium Alloys, T. Indian. I. Metals. 66 (2013) 133 -140.

DOI: 10.1007/s12666-012-0200-3

[3] A.A. Luo and Anil K. Sachdev: Development of a New Wrought Magnesium-Aluminum-Manganese Alloy AM30, Metall. Mater. Trans. A 38 (2007) 1184 -1192.

DOI: 10.1007/s11661-007-9129-2

[4] X. L. Zhang, G. Chen and Y. L. Du: Synthesis of Plastic Mg-Based Bulk-Metallic-Glass Matrix Composites by Bridgman Solidification, Metall. Mater. Trans. A 43 (2012) 2604 -2609.

DOI: 10.1007/s11661-012-1107-7

[5] S.R. Wang, S.B. Kang, J.H. Cho and Y.J. Wang: Microstructure evolution of ZK60 magnesium alloy at CC/TRC/TRCHC processing following by annealing, T. Nonferr. Metal. Soc. 20 (2010) 763-768.

[6] R.Y. Lapovok, M.R. Barnett and C.H.J. Davies: Construction of extrusion limit diagram for AZ31 magnesium alloy by FE simulation, J. Mater. Process. Tech. 146 (2004) 408-414.

DOI: 10.1016/j.jmatprotec.2003.12.003
