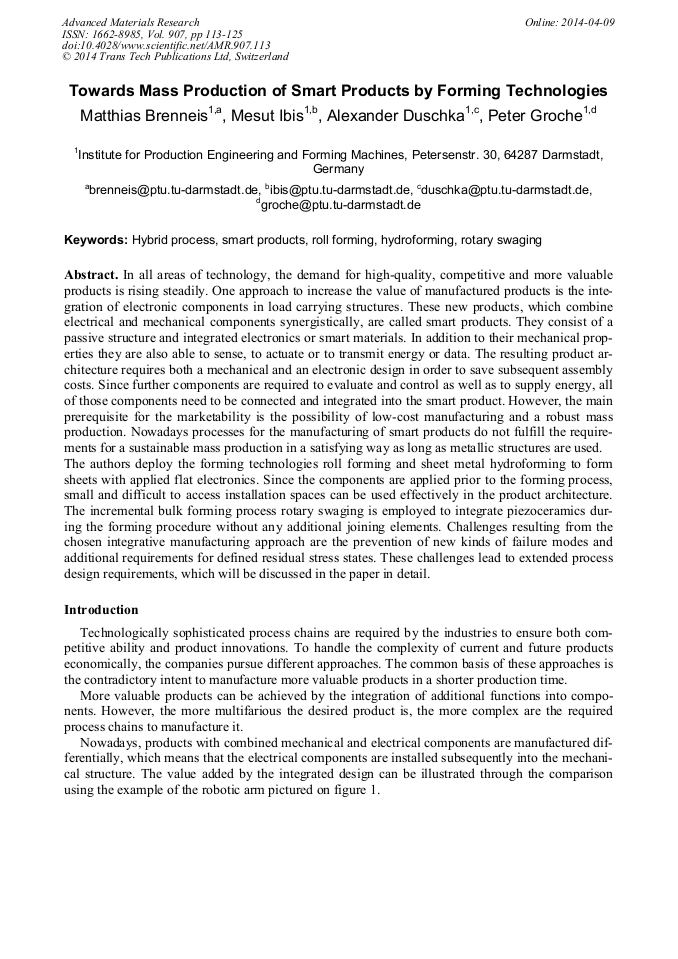

Towards Mass Production of Smart Products by Forming Technologies

Abstract:

In all areas of technology, the demand for high-quality, competitive and more valuable products is rising steadily. One approach to increase the value of manufactured products is the integration of electronic components in load carrying structures. These new products, which combine electrical and mechanical components synergistically, are called smart products. They consist of a passive structure and integrated electronics or smart materials. In addition to their mechanical properties they are also able to sense, to actuate or to transmit energy or data. The resulting product architecture requires both a mechanical and an electronic design in order to save subsequent assembly costs. Since further components are required to evaluate and control as well as to supply energy, all of those components need to be connected and integrated into the smart product. However, the main prerequisite for the marketability is the possibility of low-cost manufacturing and a robust mass production. Nowadays processes for the manufacturing of smart products do not fulfill the requirements for a sustainable mass production in a satisfying way as long as metallic structures are used. The authors deploy the forming technologies roll forming and sheet metal hydroforming to form sheets with applied flat electronics. Since the components are applied prior to the forming process, small and difficult to access installation spaces can be used effectively in the product architecture. The incremental bulk forming process rotary swaging is employed to integrate piezoceramics during the forming procedure without any additional joining elements. Challenges resulting from the chosen integrative manufacturing approach are the prevention of new kinds of failure modes and additional requirements for defined residual stress states. These challenges lead to extended process design requirements, which will be discussed in the paper in detail.

• Periodical: Advanced Materials Research (Volume 907)
• Pages: 113-125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.907.113
• Online since: April 2014
• Authors: Matthias Brenneis*, Mesut Ibis, Alexander Duschka, Peter Groche
• Keywords: Hybrid Process, Hydroforming, Roll Forming, Rotary Swaging, Smart Products

References

[1] Pavlovic, N.; Keimer, R.; Franke, H. -J.: Improvement of the Overall Performance of Parallel Roboters Using Joints with Integrated Piezo Actuators, In: Proceedings of the 11th International Conference on New Actuators, ACTUATOR, (2008).

[2] Neugebauer, R.; Kreißig, R.; Lachmann, L.; Nestler, M.; Hensel, S.; Flössel, M.: Piezo-Module-Compounds in Metal Forming: Experimental and Numerical Studies, Recent Advances in Mechatronics, 4, 2010, pp.257-262.

DOI: 10.1007/978-3-642-05022-0_44

[3] Klocke, F.; Roderburg, A.; Zeppenfeld, C.: Design methodology for hybrid production processes, Procedia Engineering, Volume 9, 2011, pp.417-430, ISSN 1877-7058, 10. 1016/j. proeng. 2011. 03. 130.

DOI: 10.1016/j.proeng.2011.03.130

[4] Roesner, A.; Scheik, S.; Olowinsky, A.; Gillner, A.; Reisgen, U.; Schleser, M.: Laser Assisted Joining of Plastic Metal Hybrids, Physics Procedia, Volume 12, Part B, 2011, pp.370-377, ISSN 1875-3892, 10. 1016/j. phpro. 2011. 03. 146.

DOI: 10.1016/j.phpro.2011.03.146

[5] Nishioka, T.: Hybrid numerical methods in static and dynamic fracture mechanics, Optics and Lasers in Engineering, Volume 32, Issue 3, September 1999, pp.205-255, ISSN 0143-8166, 10. 1016/S0143-8166(99)00054-8.

DOI: 10.1016/s0143-8166(99)00054-8

[6] Kim, K. H.; Choi, S. -r.; Yoon, S. -y.: Superhard Ti–Si–N coatings by a hybrid system of arc ion plating and sputtering techniques, Surface and Coatings Technology, Volume 161, Issues 2–3, 2 December 2002, pp.243-248.

DOI: 10.1016/s0257-8972(02)00499-1

[7] Ibis, M.; Griesheimer, S.; Salun, L.; Rausch, J.; Groche, P.: Sheet Metal Hydroforming of Functional Composite Structures, In: SPIE Smart Structures / NDE. Active and Passive Smart Structures and Integrated Systems, San Diego, US. Proceedings of SPIE, (2011).

DOI: 10.1117/12.880934

[8] Schuler GmbH: Metal Forming Handbook, Springer-Verlag, Berlin, 1998, p.18.

[9] Groche, P.; Ibis, M.; Schmitt; W. Ludwig, C.: Leichtbauprodukte mit hoher Funktionsintegration, In: Proceedings of 2. International Conference AutoMetForm and 17. Sächsische Fachtagung Umformtechnik SFU, Freiberg, (2010).

[10] Ibis, M.; Griesheimer, S.; Duschka, A.; Brenneis, M.; Salun, L.; Dörsam, E.; Groche, P.: Integration von elektrischen und elektronischen Komponenten in Strukturbauteile durch Umformen, In: Proceedings of 11. Umformtechnisches Kolloquium, Darmstadt, 2012, pp.155-169.

[11] Groche, P.; Türk, M.: Smart Structures Assembly through Incremental Forming, CIRP Annals- Manufacturing Technology 60 (1), 2011, pp.21-24.

DOI: 10.1016/j.cirp.2011.03.003
