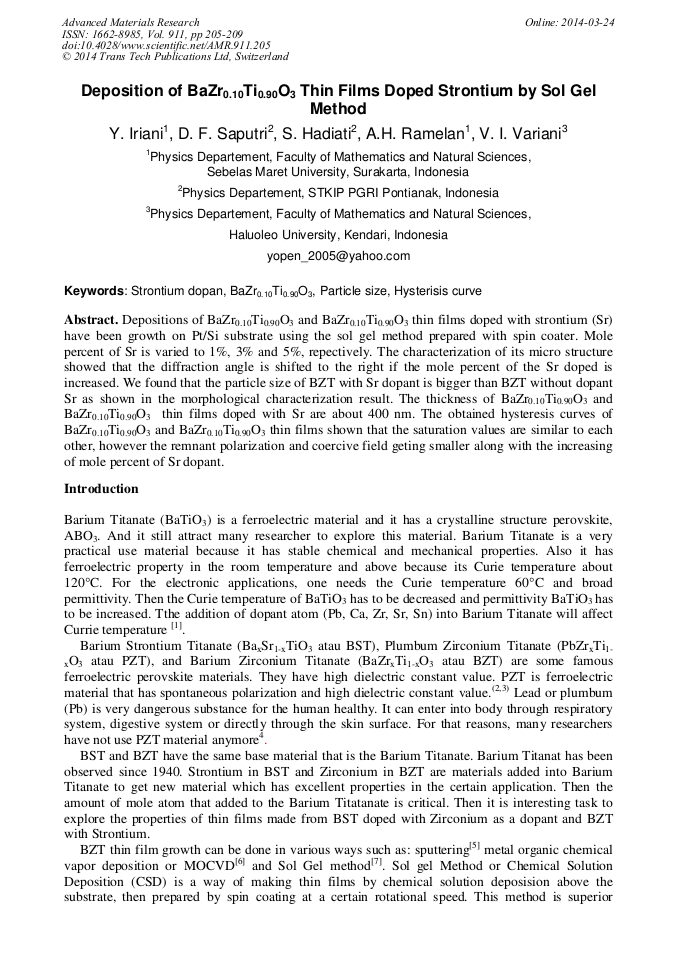

Deposition of BaZr_0.10Ti_0.90O₃ Thin Films Doped Strontium by Sol Gel Method

Abstract:

Depositions of BaZr_0.10Ti_0.90O₃ and BaZr_0.10Ti_0.90O₃ thin films doped with strontium (Sr) have been growth on Pt/Si substrate using the sol gel method prepared with spin coater. Mole percent of Sr is varied to 1%, 3% and 5%, repectively. The characterization of its micro structure showed that the diffraction angle is shifted to the right if the mole percent of the Sr doped is increased. We found that the particle size of BZT with Sr dopant is bigger than BZT without dopant Sr as shown in the morphological characterization result. The thickness of BaZr_0.10Ti_0.90O₃ and BaZr_0.10Ti_0.90O₃ thin films doped with Sr are about 400 nm. The obtained hysteresis curves of BaZr_0.10Ti_0.90O₃ and BaZr_0.10Ti_0.90O₃ thin films shown that the saturation values are similar to each other, however the remnant polarization and coercive field geting smaller along with the increasing of mole percent of Sr dopant.

You might also be interested in these eBooks

Key Engineering Materials - Development and Application

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 911)

Pages:

205-209

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.911.205

Citation:

Cite this paper

Online since:

March 2014

Authors:

Y Iriani*, D.F. Saputri, S. Hadiati, A.H. Ramelan, V. I Variani

Keywords:

BaZr_0.10Ti_0.90O₃, Hysterisis Curve, Particle Size, Strontium Dopan

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Lines, M.E. and A.M. Glass, 977. Principles and Application of Ferroelectric and Related Materials. Oxford: Cloredon Press.

Google Scholar

[2] Halder, S., Schneller T., & Waser, R., 2005. Crystallization Temperature Limit of (Ba, Sr)TiO3 Thin Films Prepared by a Non Oxocarbonate Phase Forming CSD Route. Journal of Sol-Gel Science and Technology, 33.

DOI: 10.1007/s10971-005-6379-6

Google Scholar

[3] Tang, X.G., K.H. Chew, H.L.W. Chan, 2004. Diffuse phase transition and dielectric tunability of Ba(ZryTi1-y)O3 relaxor ferroelectric ceramics. Acta Materialia, 52.

DOI: 10.1016/j.actamat.2004.07.028

Google Scholar

[4] Daocheng, L., et al. (2009). Ferroelectric Relaxor Behavior of Ba(Ti0. 91Zr0. 09)O3 Ceramics. School of Materials Science & Engineering, Xihua University, Chengdu, China, Vol 385, 169–176.

DOI: 10.1080/00150190902889325

Google Scholar

[5] M.C. Wang et al., 2003, Influence Of Deposition Parameters On The Dielectric Properties Of Rf Magnetron Sputtered Ba(Zrxti1-X)O3 Thin Films, Journal of the European Ceramic Society Volume 23, Halaman 2307–2314.

DOI: 10.1016/s0955-2219(03)00039-6

Google Scholar

[6] Gao, C., et. Al, 2005, Preparation and dielectric properties of Ba (ZrxTi1-x)O3Thin Films rowth by sol gel process, Tongji Univesity, china, vol 74, 147-153.

Google Scholar

[7] Chen, X., et. al., 2010, Synthesis and Morphology of Ba (Zr0. 2Ti0. 80)O3 power obained by sol-gel method, Paper, College of Materials Science and Engineering, Chengqing, China.

Google Scholar
