Martensitic Transformation and Related Properties of AuTi-FeTi Pseudobinary Alloys

Abstract:

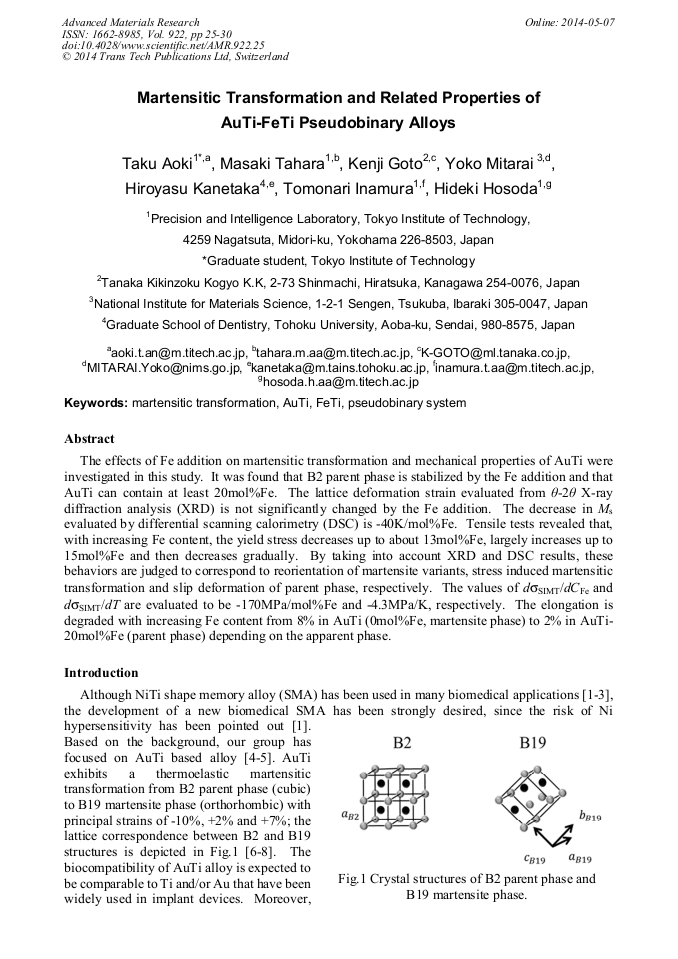

The effects of Fe addition on martensitic transformation and mechanical properties of AuTi were investigated in this study. It was found that B2 parent phase is stabilized by the Fe addition and that AuTi can contain at least 20mol%Fe. The lattice deformation strain evaluated from θ-2θ X-ray diffraction analysis (XRD) is not significantly changed by the Fe addition. The decrease in M_s evaluated by differential scanning calorimetry (DSC) is-40K/mol%Fe. Tensile tests revealed that, with increasing Fe content, the yield stress decreases up to about 13mol%Fe, largely increases up to 15mol%Fe and then decreases gradually. By taking into account XRD and DSC results, these behaviors are judged to correspond to reorientation of martensite variants, stress induced martensitic transformation and slip deformation of parent phase, respectively. The values of dσ_SIMT/dC_Fe and dσ_SIMT/dT are evaluated to be-170MPa/mol%Fe and-4.3MPa/K, respectively. The elongation is degraded with increasing Fe content from 8% in AuTi (0mol%Fe, martensite phase) to 2% in AuTi-20mol%Fe (parent phase) depending on the apparent phase.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 25-30
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.25
• Online since: May 2014
• Authors: Taku Aoki*, Masaki Tahara, Kenji Goto, Yoko Yamabe-Mitarai, Hiroyasu Kanetaka, Tomonari Inamura, Hideki Hosoda
• Keywords: AuTi, FeTi, Martensitic Transformation (MT), Pseudobinary System

References

[1] S. Miyazaki, H.Y. Kim and H. Hosoda: Mater. Sci. Eng. A, 18 (2006) 438-440.

[2] K. Otsuka and C. M. Wayman: Shape Memory Materials. Cambridge and New York: Cambridge University Press, (1998).

[3] K. Otsuka and X. Ren: Intermetallics, 7(1999) 511-528.

[4] T. Inamura and H. Hosoda: Metall. Mater. Trans A, 42A (2011) 111-120.

[5] T. Kawamura, R. Tachi, T. Inamura, H. Hosoda and K. Wakashima: Mater. Sci Eng. A, 438-440 (2006) 383-386.

DOI: 10.1016/j.msea.2006.01.123

[6] S. K. Wu and C. M. Wayman: Metallography, 20 (1987) 359-76.

[7] H. C. Donkersloot and J. H. N. Van Vucht: J. Less-Common Met, 20 (1970) 83-91.

[8] C. Declairieux, A. Denquin, P. Ochin, R. Portier and P. Vermaut: Intermetallics, 19 (2011) 1461-1465.

DOI: 10.1016/j.intermet.2011.05.028

[9] H. Hosoda, R. Tachi, T. Inamura, K. Wakashima and S. Miyazaki: Materials Science Forum, 561-565, (2007) 1541.

DOI: 10.4028/www.scientific.net/msf.561-565.1541

[10] T. B. Massalski ed.: in Binary Alloy Phase Diagrams, ASM Intl., 2 (1986) 1118.

[11] Y. Liu and S. P. Galvin: Acta Metall., 45 (1997) 4431.

[12] Y. Liu, J. V. Humbeeck, R. Stalmans and L. Delaey: J. Alloy Comp. 247 (1997) 115.

[13] H. Hosoda, R. Tachi, T. Inamura, K. Wakashima and S. Miyazaki: Proc. New Research and Development of Shape Memory Alloy for Advanced Functional and Biomaterials, SMA Symposium, Association of Shape Memory Alloys, (2008) 14-17.

[14] G.B. Stachowiak and P.G. Mccormick: Acta Metall, 36 (1988) 291-297.

[15] S. Miyazaki, S. Kimura, K. Otsuka and Y. Suzuki: Scripta Metal, 18 (1984) 883.
