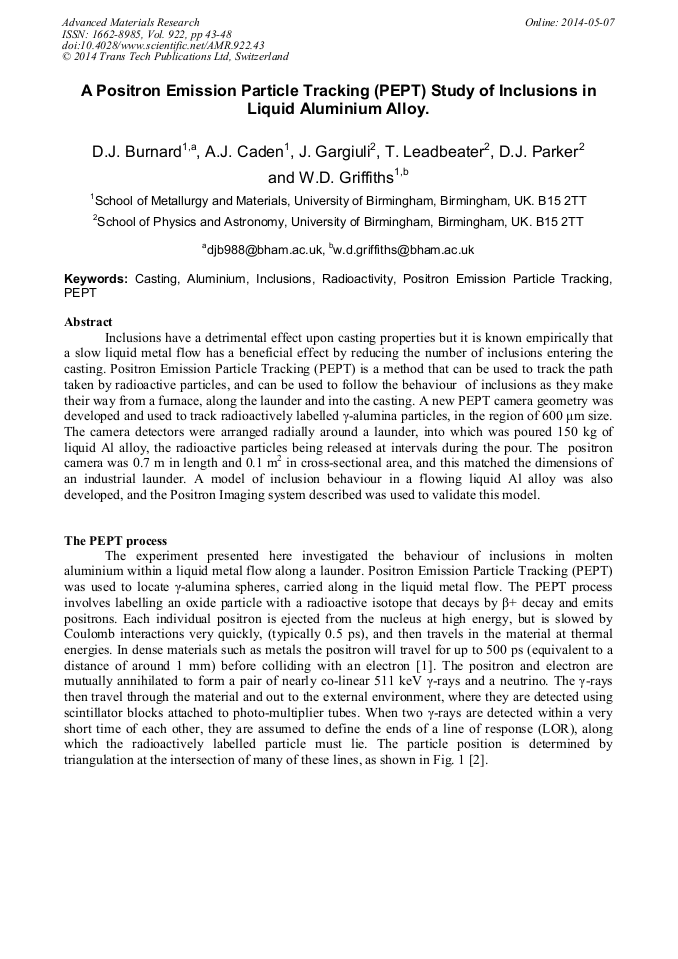

A Positron Emission Particle Tracking (PEPT) Study of Inclusions in Liquid Aluminium Alloy

Abstract:

Inclusions have a detrimental effect upon casting properties but it is known empirically that a slow liquid metal flow has a beneficial effect by reducing the number of inclusions entering the casting. Positron Emission Particle Tracking (PEPT) is a method that can be used to track the path taken by radioactive particles, and can be used to follow the behaviour of inclusions as they make their way from a furnace, along the launder and into the casting. A new PEPT camera geometry was developed and used to track radioactively labelled γ-alumina particles, in the region of 600 μm size. The camera detectors were arranged radially around a launder, into which was poured 150 kg of liquid Al alloy, the radioactive particles being released at intervals during the pour. The positron camera was 0.7 m in length and 0.1 m² in cross-sectional area, and this matched the dimensions of an industrial launder. A model of inclusion behaviour in a flowing liquid Al alloy was also developed, and the Positron Imaging system described was used to validate this model.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 43-48
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.43
• Online since: May 2014
• Authors: D.J. Burnard*, A.J. Caden, J. Gargiuli, T. Leadbeater, D.J. Parker, William D. Griffiths
• Keywords: Aluminum (Al), Casting, Inclusion, PEPT, Positron Emission Particle Tracking, Radioactivity

References

[1] P. Hautjarvi, Positrons in Solids, ISBN: 978-3-642-81318-4.

[2] D.J. Parker and X. Fan, Positron emission particle tracking – Application and labelling techniques, Particuology 6 (2008) 16-23.

DOI: 10.1016/j.cpart.2007.10.004

[3] X. Fan, D.J. Parker, M.D. Smith, Labelling a single particle for positron emission particle tracking using direct activation and ion-exchange techniques, Nucl. Instr. and Meth. in Phys. Res. A, 562 (2006) 345-350.

DOI: 10.1016/j.nima.2006.03.015

[4] D.J. Parker, T.W. Leadbeater, X. Fan, M.N. Hausard, A. Ingram and Z. Yang, Positron emission particle tracking using a modular positron camera, Nucl. Instr. and Meth. in Phys. Res. A, 604 (2009) 339-342.

DOI: 10.1016/j.nima.2009.01.085

[5] Y.Beshay, The Application Of Positron Emission Particle Tracking To Study Non-metallic Inclusions In Metal Castings, PhD Thesis , University of Birmingham, 2010.

[6] W.D. Griffiths, D. J. Parker, X. Fan and M. Hauser, Tracking inclusions in aluminium alloy castings using positron emission particle tracking (PEPT), J. Mat. Sci., vol. 26 (2010) No5 528-533.

DOI: 10.1179/174328409x405643

[7] D.J. Burnard and W.D. Griffiths, A Model of Inclusion Behaviour in Liquid Aluminium, Mat. Sci. For. 765 (2013) 92-96.

DOI: 10.4028/www.scientific.net/msf.765.92

[8] R. Raizadeh, and W.D. Griffiths, A Method to Study the History of Double Oxide Film Defect in Liquid Aluminium Alloys, Met. and Mat. Trans. B, 37B (2006) 865-871.
