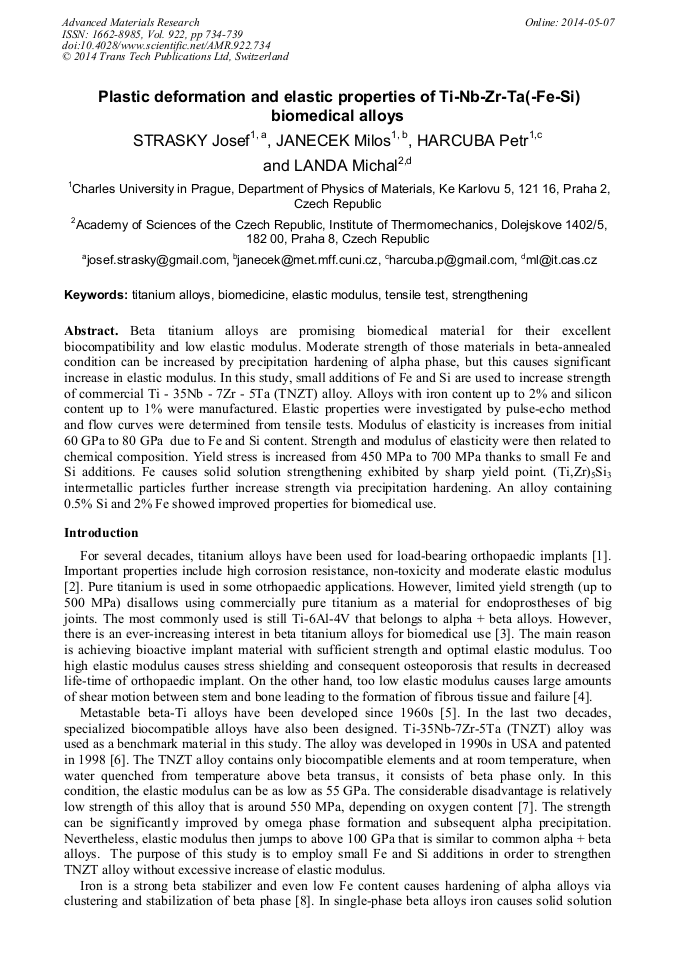

Plastic Deformation and Elastic Properties of Ti-Nb-Zr-Ta(-Fe-Si) Biomedical Alloys

Abstract:

Beta titanium alloys are promising biomedical material for their excellent biocompatibility and low elastic modulus. Moderate strength of those materials in beta-annealed condition can be increased by precipitation hardening of alpha phase, but this causes significant increase in elastic modulus. In this study, small additions of Fe and Si are used to increase strength of commercial Ti - 35Nb - 7Zr - 5Ta (TNZT) alloy. Alloys with iron content up to 2% and silicon content up to 1% were manufactured. Elastic properties were investigated by pulse-echo method and flow curves were determined from tensile tests. Modulus of elasticity is increases from initial 60 GPa to 80 GPa due to Fe and Si content. Strength and modulus of elasticity were then related to chemical composition. Yield stress is increased from 450 MPa to 700 MPa thanks to small Fe and Si additions. Fe causes solid solution strengthening exhibited by sharp yield point. (Ti,Zr)₅Si₃ intermetallic particles further increase strength via precipitation hardening. An alloy containing 0.5% Si and 2% Fe showed improved properties for biomedical use.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 734-739
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.734
• Online since: May 2014
• Authors: Josef Stráský*, Miloš Janeček, Petr Harcuba, Michal Landa
• Keywords: Biomedicine, Elastic Modulus, Strengthening, Tensile Test, Titanium Alloy

References

[1] M. Geetha, A.K. Singh, R. Askomanani, A.K. Gugia, Ti based biomaterials, the ultimate choice for orthopaedic implants – A review. Prog. Mat. Sci. 54 (2009) 397-425.

DOI: 10.1016/j.pmatsci.2008.06.004

[2] C. Leyens, M. Peters, Titanium and Titanium Alloys, WILEY-VCH Verlag, 2003.

[3] J.I. Qazi, H.J. Rack, B. Marquardt, High-strength metastable beta-titanium alloys for biomedical applications, JOM-J. Min. Met. Mat. S. 56 (2004) 49-51.

DOI: 10.1007/s11837-004-0253-9

[4] M. Niinomi, Mechanical biocompatibilities of titanium alloys for biomedical applications, J Mech Behav Biomed Mat 1 (2008) 30-42.

[5] G. Lutjering, J.C. Williams, Titanium, Springer-Verlag, Berlin, Heidelberg, 2003, 2007.

[6] T. Ahmed, H.J. Rack, Low modulus biocompatible titanium base alloys for medical devices, United States Patent, 5,871,595, (1999)

[7] J.I. Qazi, B. Marquardt, L.F. Allard, H.J. Rack, Phase transformation in Ti-35Nb-7Zr-5Ta-(0.06-0.68)O alloys, Mat Sci Eng 25 (2005) 389 – 397.

DOI: 10.1016/j.msec.2005.01.022

[8] M. Mhaede, L. Wagner, K. Ibrahim, Thermomechanical treatments and surface treatments to enhance the mechanical properties and fatigue performance of recycled cp-Ti, J Mat. Res. 8 (2013), 713-720.

DOI: 10.3139/146.110920

[9] K. Ibrahim, M. Mhaede, L. Wagner, Effect of Annealing Temperature on Microstructure and Mechanical Properties of Hot Swaged cp-Ti Produced by Investment Casting, J Mater Eng Perform 21 (2012) 114-118.

DOI: 10.1007/s11665-010-9799-6

[10] S. Ankem, D. Banerjee, D.J. McNeish, J.C. Williams, S.R. Seagle, Sillicide Formation in Ti-3Al-8V-6Cr-4Zr-4Mo, Metal. Trans. 18 (1987) 2015 – 2025.

DOI: 10.1007/bf02647074

[11] E.W. Collings, Materials Properties Handbook: Titanium Alloys, ASM International, (1994)

[12] D. Vojtech, B. Bartova, T. Kubatik, High temperature oxidation of titanium–silicon alloys, Mat. Sci. Eng. A 361 (2003) 50–57.

[13] D.B. Lee, K.B. Park, H.W Jeong, S.E. Kim, Mechanical and oxidation properties of Ti-xFe-ySi alloys, Mat. Sci. Eng. 328 (2002) 161 – 168.

DOI: 10.1016/s0921-5093(01)01670-7

[14] H.S. Kim., W.Y. Kim, S.H. Lim, Microstructure and elastic modulus of Ti-Nb-Si ternary alloys for biomedical applications, Scripta Mat. 54 (2006) 887 – 891.

DOI: 10.1016/j.scriptamat.2005.11.001

[15] M. Landa, J. Plesek, Contrast enhancement of ultrasonic imaging of internal stresses in materials, Ultrasonics 40 (2002) 531-535.

DOI: 10.1016/s0041-624x(02)00180-4

[16] M. Hansen, H.D. Kessler, D.J. McPherson, The titanium- silicon system, Trans. Am. Soc. Metals 44 (1952) 518-535.

[17] K. Chaudhuri, J.H. Perepezko, Microstructural Study of the Titanium Alloy Ti-15Mo-2.7Nb-3Al-0.2Si (TIMETAL 21S), Met. Mat. Trans. 25 (1994) 1109-1117.

DOI: 10.1007/bf02652286

[18] E.W. Collings, H.L. Gegel, J.C. Ho, Solid solution strengthening and fundamental design of titanium alloys, Air Force Materials Laboratory, AD-754240, 1972.

[19] X. Tang, T. Ahmed. H.J. Rack, Phase transformations in Ti-Nb-Ta and Ti-Nb-Ta-Zr alloys, J. Mat. Sci. 35 (2000) 1805-1811.

[20] J. W. Christian, S. Mahajan Deformation twinning, Prog. Mat. Sci. 39 (1995) 1-157.

[21] E. Bertrand, P. Castany, I. Peron, T. Gloriant, Twinning system selection in a metastable b-titanium alloy by Schmid factor analysis, Scripta Mat. 64 (2011) 1110–1113.

DOI: 10.1016/j.scriptamat.2011.02.033

[22] X.H. Min, K. Tsuzaki, S.Emura, T.Sawaguchi, S.Ii, K.Tsuchiya, {332}〈113〉 Twinning system selection in a β-type Ti–15Mo–5Zr polycrystalline alloy, Mat. Sci. Eng. A 579 (2013) 164–169.

DOI: 10.1016/j.msea.2013.04.119

[23] X.H. Min, X.J. Chen, E. Satoshi, K. Tsuchiya, Mechanism of twinning-induced plasticity in b-type Ti–15Mo alloy, Scripta Mat. 69 (2013) 393–396.

DOI: 10.1016/j.scriptamat.2013.05.027

[24] S. Banerjee, U. M. Naik, Plastic instability in an omega forming Ti-15% Mo alloy, Acta Mat. 44 (1996) 3661-3671.

DOI: 10.1016/1359-6454(96)00012-2

[25] F.C. Campbell, Elements of Metallurgy and Engineering Alloys, ASM International, (2008)

[26] X. Wang, H. Hamasaki, M. Yamamura, R. Yamauchi, T. Maeda, Y. Shirai, F. Yoshida, Yield-Point Phenomena of Ti-20V-4Al-1Sn at 1073K and Its Constitutive Modelling, Mat. Trans. 50 (2009) 1576 to 1578.

DOI: 10.2320/matertrans.m2009059

[27] R. J. Grylls, S. Banerjee, S. Perungulam, R. Wheeler, H. L. Fraser, On the discontinuous yielding phenomena observed in a Nb-Ti-Al alloy, Intermetallics 6 (1998) 149-752.

DOI: 10.1016/s0966-9795(98)00032-6

[28] I.S. Golovin, M.U. Kollerov, E.V. Schinaeva, The Study of Microplasticity Mechanism in Ti-50 wt.%Nb Alloy with High Hydrogen Content, J de Phys 6 (1996) 289-292.

DOI: 10.1051/jp4:1996862
