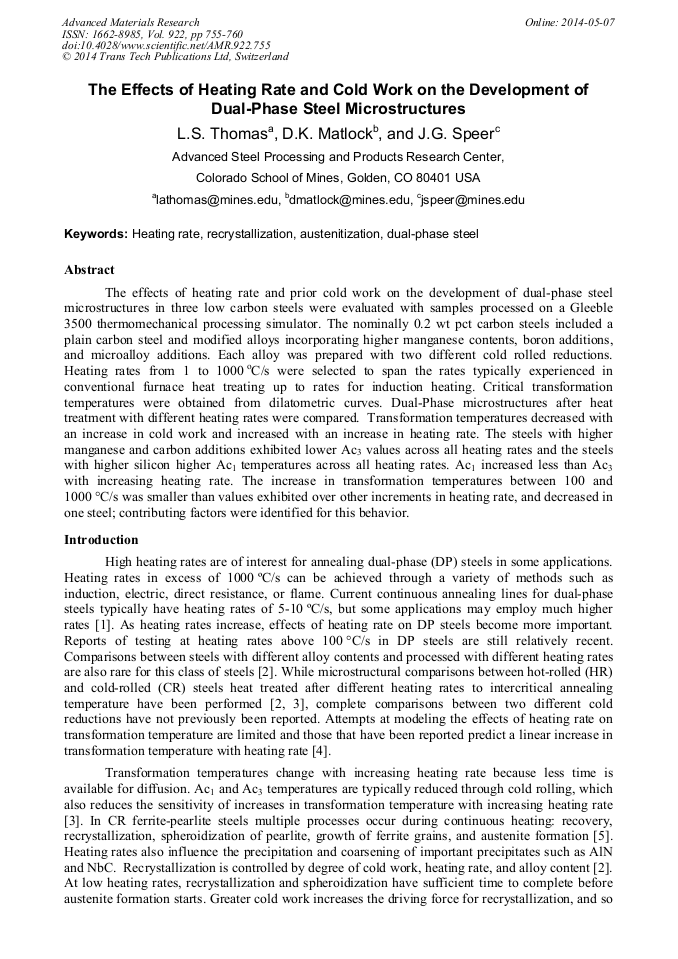

The Effects of Heating Rate and Cold Work on the Development of Dual-Phase Steel Microstructures

Abstract:

The effects of heating rate and prior cold work on the development of dual-phase steel microstructures in three low carbon steels were evaluated with samples processed on a Gleeble 3500 thermomechanical processing simulator. The nominally 0.2 wt pct carbon steels included a plain carbon steel and modified alloys incorporating higher manganese contents, boron additions, and microalloy additions. Each alloy was prepared with two different cold rolled reductions. Heating rates from 1 to 1000 ^oC/s were selected to span the rates typically experienced in conventional furnace heat treating up to rates for induction heating. Critical transformation temperatures were obtained from dilatometric curves. Dual-Phase microstructures after heat treatment with different heating rates were compared. Transformation temperatures decreased with an increase in cold work and increased with an increase in heating rate. The steels with higher manganese and carbon additions exhibited lower Ac₃ values across all heating rates and the steels with higher silicon higher Ac₁ temperatures across all heating rates. Ac₁ increased less than Ac₃ with increasing heating rate. The increase in transformation temperatures between 100 and 1000 °C/s was smaller than values exhibited over other increments in heating rate, and decreased in one steel; contributing factors were identified for this behavior.

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 755-760
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.755
• Online since: May 2014
• Authors: L.S. Thomas*, David K. Matlock, John G. Speer
• Keywords: Austenitization, Dual Phase Steel, Heating Rate, Recrystallization

References

[1] P. Shanmugam, K. Srinivas, M. Preethi, and R. Natarajan, "Development of Ductile Martensitic Tubes and its Application in Automotive Parts," 1st Conference on Super High Strength Steels, 2-4 Nov. 2005, Italy.

[2] J. Huang, W.J. Poole, and M. Militzer, "Austenite Formation During Intercritical Annealing," Metallurgical and Materials Transactions A, vol. 35, Nov. 2004, pp.3363-3375.

DOI: 10.1007/s11661-004-0173-x

[3] H. Azizi-Alizamini, M. Militzer, and W.J. Poole, "Austenite Formation in Plain Low-Carbon Steel," Metallurgical and Materials Transactions A, vol. 42, Dec. 2010, pp.1544-1557.

DOI: 10.1007/s11661-010-0551-5

[4] F. G. Caballero, C. Capdevila, and C. G. D. E. Andrés, "An Attempt to Establish the Variables That Most Directly Influence the Austenite Formation Process in Steels," ISIJ International, vol. 43, no. 5, p.726–735, 2003.

DOI: 10.2355/isijinternational.43.726

[5] D.Z. Yang, E.L. Brown, D.K. Matlock, and G. Krauss, "The Formation of Austenite at Low Intercritical Annealing Temperatures in a Normalized 0.08C-1.45MN-0.21Si Steel," Metallurgical Transactions, vol. 16, 1985, pp.1523-1526.

DOI: 10.1007/bf02658685

[6] G.R. Speich, V.A. Demarest, and R.L. Miller, "Formation of Austenite During Intercritical Annealing of Dual-Phase Steels," Metallurgical Transactions A, vol. 12, Aug. 1981, pp.1419-1428.

DOI: 10.1007/bf02643686

[7] C. G. de Andrés and F. Caballero, "Application of Dilatometric Analysis to the Study of Solid–Solid Phase Transformations in steels," Materials Characterization, vol. 48, p.101–111, 2002.

DOI: 10.1016/s1044-5803(02)00259-0

[8] T. Ogawa, N. Maruyama, N. Sugiura, and N. Yoshinaga, "Incomplete Recrystallization and Subsequent Microstructural Evolution during Intercritical Annelaing in Cold-rolled Low Carbon Steels, ISIJ International, vol. 50, no. 3, pp.469-475, 2010.

DOI: 10.2355/isijinternational.50.469

[9] D. San Martín, Y. Palizdar, C. García-Mateo, R. C. Cochrane, R. Brydson, and A. J. Scott, "Influence of Aluminum Alloying and Heating Rate on Austenite Formation in Low Carbon-Manganese Steels," Metallurgical and Materials Transactions A, vol. 42, no. 9, p.2591–2608, Apr. 2011.

DOI: 10.1007/s11661-011-0692-1

[10] L. Gavard, H. K. D. H. Bhadeshia, C. Mackay, and S. Suzuki, "Bayesian Neural Network Model for Austenite Formation in Steels," Materials Science and Technology, vol. 12, no. June, p.453–463, 1996.

DOI: 10.1179/mst.1996.12.6.453

[11] K.W. Andrews, "Empirical Formulae for the Calculation of Some Transformation Temperatures," JISI, vol. 203, 1965, pp.721-727

[12] O. Kasatkin, B. Vinokur, and V. Pilyushenko, "Calculation Models for Determining the Critical Points of Steel," Metal Science and Heat Treatment, vol. 26, no. 1, p.27–31, 1984.

DOI: 10.1007/bf00712859
