Mechanical Properties and Precipitation Behavior of Ti-Mo Microalloyed Medium-Carbon Steel during Ultrafast Cooling Process

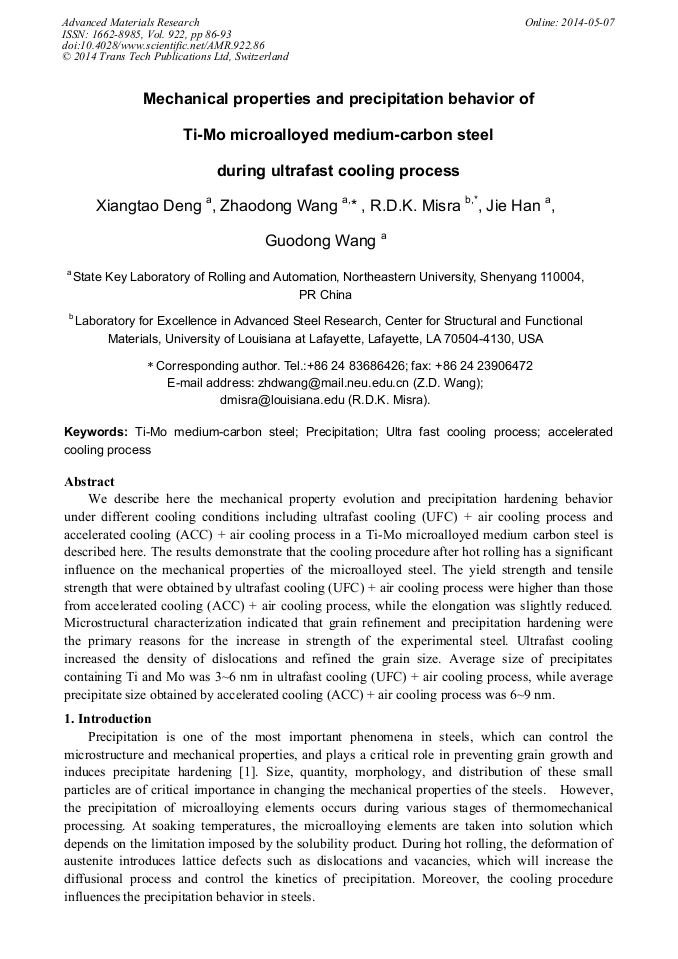

Abstract:

We describe here the mechanical property evolution and precipitation hardening behavior under different cooling conditions including ultrafast cooling (UFC) + air cooling process and accelerated cooling (ACC) + air cooling process in a Ti-Mo microalloyed medium carbon steel is described here. The results demonstrate that the cooling procedure after hot rolling has a significant influence on the mechanical properties of the microalloyed steel. The yield strength and tensile strength that were obtained by ultrafast cooling (UFC) + air cooling process were higher than those from accelerated cooling (ACC) + air cooling process, while the elongation was slightly reduced. Microstructural characterization indicated that grain refinement and precipitation hardening were the primary reasons for the increase in strength of the experimental steel. Ultrafast cooling increased the density of dislocations and refined the grain size. Average size of precipitates containing Ti and Mo was 3~6 nm in ultrafast cooling (UFC) + air cooling process, while average precipitate size obtained by accelerated cooling (ACC) + air cooling process was 6~9 nm. Keywords: Ti-Mo medium-carbon steel; Precipitation; Ultra fast cooling process; accelerated cooling process

• Periodical: Advanced Materials Research (Volume 922)
• Pages: 86-93
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.922.86
• Online since: May 2014
• Authors: Xiang Tao Deng, Zhao Dong Wang*, R.D.K. Misra, Jie Han, Guo Dong Wang
• Keywords: Accelerated Cooling Process, Precipitation, Ti-Mo Medium-Carbon Steel, Ultra Fast Cooling Process

References

[1] T. Senuma. Present Status of and Future Prospects for Precipitation Research in the Steel Industry. ISIJ International. 2002; 42:1-12.

DOI: 10.2355/isijinternational.42.1

[2] R. Okamoto, A. Borgenstam, J. Agren. Interphase precipitation in niobium-microalloyed steels. Acta Mater. 2010; 58:4783-4790.

DOI: 10.1016/j.actamat.2010.05.014

[3] G. Miyamoto, R. Hori, B. Poorganji, T. Furuhara. Interphase Precipitation of VC and Resultant Hardening in V-added Medium Carbon Steels. ISIJ Int., 2011, 51:1733-1739.

DOI: 10.2355/isijinternational.51.1733

[4] H.W. Yen, C.Y. Huang, J.R. Yang. Characterization of interphase-precipitated nanometer-sized carbides in a Ti-Mo-bearing steel. Scripta Mater. 2009; 61:616-619.

DOI: 10.1016/j.scriptamat.2009.05.036

[5] Y. Funakawa, T. Shiozaki, K. Tomita, T. Yamamoto, E. Maeda. Development of high strength hot-rolled sheet steel consisting of ferrite and nanometer-sized carbides. ISIJ Int. 2004; 44:1945-1951.

DOI: 10.2355/isijinternational.44.1945

[6] K. Seto, Y. Funakawa, S. Kaneko. Hot rolled high strength steels for suspension and chassis parts ''Nanohiten'' and "BHT ® steel". JFE Technical Report. 2007; 10:19-25.

[7] Y. Funakawa, K. Seto. Stabilization in strength of hot-rolled sheet steel strengthened by nanometer-sized carbides. Tetsu to Hagane-Journal of the Iron and Steel Institute of Japan 2007; 93:49-56.

DOI: 10.2355/tetsutohagane.93.49

[8] I.B. Timokhina, P.D. Hodgson, S.P. Ringer, R.K. Zheng, E.V. Pereloma. Precipitate characterisation of an advanced high-strength low-alloy (HSLA) steel using atom probe tomography. Scripta Mater. 2007; 56: 601-604.

DOI: 10.1016/j.scriptamat.2006.12.018

[9] C.Y. Chen, H.W. Yen, F.H. Kao, W.C. Li, C.Y. Huang, J.R. Yang, S.H. Wang. Precipitation hardening of high-strength low-alloy steels by nanometer-sized carbides. Mater. Sci. Eng. A. 2009; 499:162-166.

DOI: 10.1016/j.msea.2007.11.110

[10] H.W. Yen, C.Y. Chen, T.Y. Wang, C.Y. Huang, J.R. Yang. Orientation relationship transition of interphase-precipiated nanometer-sized TiC carbides in a Ti-bearing steel. Mater Sci Technol. 2010; 26:421-430.

DOI: 10.1179/026708309x12512744154207

[11] J.H. Jang, C. Lee, Y. Heo, D. Suh. Stability of (Ti, M)C (M=Nb, V, Mo and W) carbide in steels using first-principles calculations. Acta Mater. 2012; 60; 208-217.

DOI: 10.1016/j.actamat.2011.09.051

[12] Y. Ohmori, R.W.K. S Honeycombe, Proceedings of ICSTIS (suppl.) Transactions Iron and Steel Institute of Japan. 1971; 11:1160-1165.

[13] G. Krauss, S.W. Thompson, "Ferritic Microstructures in Continuously Cooled LowCarbon and Ultralow-Carbon Steels. ISIJ International. 1995; 35:937-945.

DOI: 10.2355/isijinternational.35.937

[14] X. Deng, Z. Wang, R. D. K. Misra, Y. Li, G. Wang. Transformation and precipitation behaviour of Ti–Mo bearing high strength medium-carbon steel. Mater Sci Technol, 2013; 29:1111-1117.

DOI: 10.1179/1743284713y.0000000290

[15] Y. Ohmori. Isothermal decomposition of an Fe-C-B austenite. Trans. ISIJ, 1971, 11, 339-348.

[16] S. Shanmugam, N.K. Ramisetti, R.D.K. Misra, T. Mannering , D. Panda , S. Jansto. Effect of cooling rate on the microstructure and mechanical properties of Nb-microalloyed steels. Mater. Sci. Eng. A. 2007; 460-461:335-343.

DOI: 10.1016/j.msea.2007.01.054
