Influences of Preparation Process on the Orientation and Properties of PZT Piezoelectric Thick Film Generation Materials

Abstract:

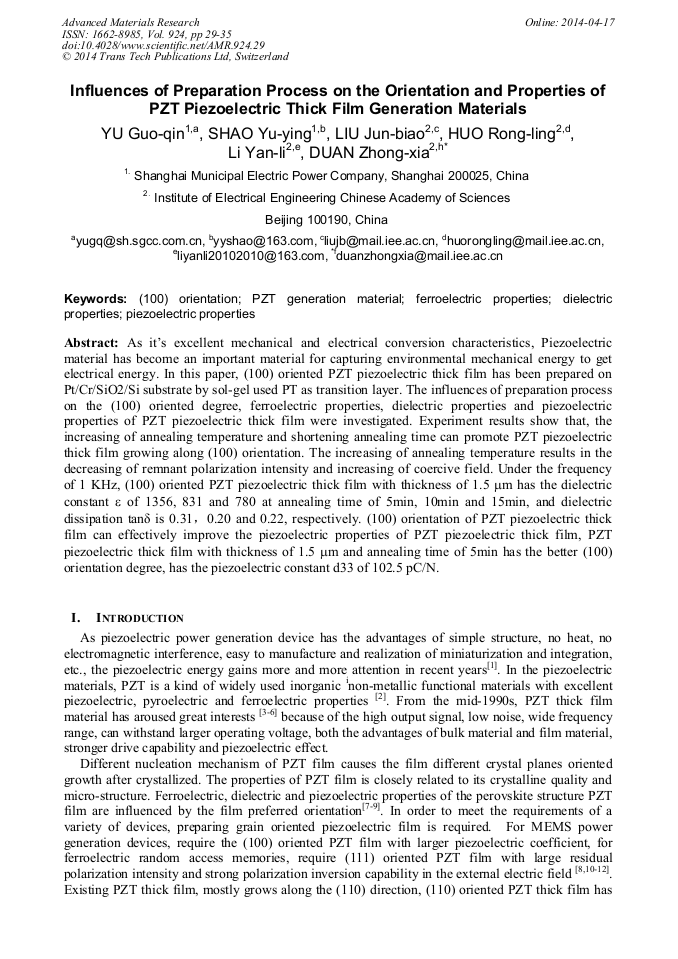

Abstract: As it's excellent mechanical and electrical conversion characteristics, Piezoelectric material has become an important material for capturing environmental mechanical energy to get electrical energy. In this paper, (100) oriented PZT piezoelectric thick film has been prepared on Pt/Cr/SiO2/Si substrate by sol-gel used PT as transition layer. The influences of preparation process on the (100) oriented degree, ferroelectric properties, dielectric properties and piezoelectric properties of PZT piezoelectric thick film were investigated. Experiment results show that, the increasing of annealing temperature and shortening annealing time can promote PZT piezoelectric thick film growing along (100) orientation. The increasing of annealing temperature results in the decreasing of remnant polarization intensity and increasing of coercive field. Under the frequency of 1 KHz, (100) oriented PZT piezoelectric thick film with thickness of 1.5 m has the dielectric constant ˰̶̿˰́̃̅̆˼˰̈̃́˰̴̱̾˰̇̈̀˰̱̈́˰̵̷̱̱̼̹̾̾̾˰̵̹̈́̽˰̶̿˰̹̅̽̾˼˰̹́̀̽̾˰̴̱̾˰̹́̅̽̾˼˰̴̱̾˰̴̵̵̹̼̳̹̳̈́͂˰̴̹̹̱̹̓̓̀̈́̿̾˰̱̈́̾ڄ˰̹̓˰̀˾̃́£¬0.20 and 0.22, respectively. (100) orientation of PZT piezoelectric thick film can effectively improve the piezoelectric properties of PZT piezoelectric thick film, PZT piezoelectric thick film with thickness of 1.5 m and annealing time of 5min has the better (100) orientation degree, has the piezoelectric constant d33 of 102.5 pC/N. Keywords: (100) orientation; PZT generation material; ferroelectric properties; dielectric properties; piezoelectric properties

• Periodical: Advanced Materials Research (Volume 924)
• Pages: 29-35
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.924.29
• Online since: April 2014
• Authors: Guo Qin Yu, Yu Ying Shao, Jun Biao Liu, Rong Ling Huo, Yan Li Li, Zhong Xia Duan*
• Keywords: (100) Orientation, Dielectric Property, Ferroelectric Properties, Piezoelectric Properties, PZT Generation Material

References

[1] S. W. Yan, Z. G. Yang, J. W. Kan, G. M. Cheng, and P. Zeng, Energy conversion system with piezoelectric ceramic, Journal of Jilin University(Engineering and Technology Edition), Vol. 38, No. 2, pp.344-348, March (2008).

[2] L. R. Zheng, Y. Q. Chen, C. L. Lin, and S. C. Zou, Pulsed Laser Deposition of New Ferroelectric Memory and Ferroelectric Thin Films, Physical, Vol. 24, No. 2, pp.43-47, (1995).

[3] R.W. Whatmore, Q. Zhang, Z. Huang, and R. A. Dorey, Ferroelectric thin and thick films for Microsystems, Mater Sci in Semiconductor Processing, Vol. 5, pp.: 65-76, (2003).

DOI: 10.1016/s1369-8001(02)00085-9

[4] C. Li, S. Mantall, and D. Polla, Design and simulation of an implantable medical drug delivery system using microelectromechanical systems technology, Sensors and Actuators A, Vol. 94, p.117, (2001).

DOI: 10.1016/s0924-4247(01)00680-x

[5] H. Kueppers, T. Leuerer, U. Schnakenberg,W. Mokwa, M. Hoffmann, T. Schneller, et al, PZT thin films for piezoelectric microactuator applications, Sensors and Actuators A, Vol. 97-98, p.680, (2002).

DOI: 10.1016/s0924-4247(01)00850-0

[6] T. Yan, B. E. Jones, R. T. Rakowski, M. J. Tudor, S. P. Beeby, and N. M. White, Design and fabrication of thick film PZT-metallic triple beam resonators, Sensors and Actuators A, Vol. 115, pp.401-407, (2004).

DOI: 10.1016/j.sna.2004.04.048

[7] K. Kakimoto, H. Kakemoto, S. Fujita, and Y. Masuda, Control of Crystal Orientation and Piezoelectric Response of Lead Zirconate Titanate Thin Films Near the Morphotropic Phase Boundary, J Am Ceram Soc, Vol. 85, No. 4, pp.1019-1021, (2002).

DOI: 10.1111/j.1151-2916.2002.tb00215.x

[8] D. V. Taylor, and D. Damjanovic, Piezoelectric properties of rhombohedral Pb(Zr, Ti)O3 thin films with (100), (111), and "random" crystallographic orientation, Appl Phys Lett, Vol. 76, pp.1615-1617, (2000).

DOI: 10.1063/1.126113

[9] F. Xu, S. Trolier-McKinstry, W. Ren, and B. Xu, Domain wall motion and its contribution to the dielectric and piezoelectric properties of lead zirconate titanate films, J Appl Phys, Vol. 89, p.1336, (2001).

DOI: 10.1063/1.1325005

[10] S. Okamoto, S. Yokoyama, Y. Honda, G. Asano, and H. Funakubo, Crystal orientation dependence on electrical properties of Pb(Zr, Ti)O3 thick films grown on Si substrate by metalorganic chemical vapor deposition, Jpn.J. Appl. Phys, Vol. 43, pp.6567-6570, (2004).

DOI: 10.1143/jjap.43.6567

[11] S. Yokoyama, Y. Honda, H. Morioka, S. Okamoto, H. Funakubo, and T. Iijima, Dependence of electrical properties of epitaxial Pb(Zr, Ti)O3 thick films on crystal orientation and Zr/(Zr+Ti) ratio, J. Appl. Phys, Vol. 98, p.094106, (2005).

DOI: 10.1063/1.2126156

[12] X. H. Du. J. Zheng, U. Belegundu. and K. Uchino, Crystal orientation dependence of piezoelectric properties of lead zirconate titanate near the morphotropic phase boundary, Appl Phys Lett, Vol. 72, p.2421, (1998).

DOI: 10.1063/1.121373

[13] Z.X. Duan, J. Yuan, Q.L. Zhao, R. LU, and M.S. Cao, Oriented Growth of PZT thick f ilm embedded with PZT nanoparticles, Journal of Harbin Institute of Technology (New Series), Vol. 16, pp.232-236, (2009).

[14] A. Kudo, and H. Kato, Effect of lanthanide-doping into NaTaO3 photocatalysts for efficient water splitting, J Chemical Physics Letters, Vol. 331, pp.373-377, (2000).

DOI: 10.1016/s0009-2614(00)01220-3

[15] K. Kushida, K. R. Udayakumar, S. B. Krupanidhi, and L. E. Cross, Origin of Orientation in Sol-Gel Derived PT Films, J. Am. Ceram. Soc., Vol. 76, No. 5, p.1345, (1993).

DOI: 10.1111/j.1151-2916.1993.tb03763.x

[16] K. G. Brooks, I. M. Reaney, R. Klissurska, Y. Huang, L. Bursill, and N. Setter, Orientation of Rapid Thermally Annealed Lead-Zirconate-Titanate Thin-Films on (111) Pt Substrates, J. Mater. Res, Vol. 9, No. 10, pp.2540-2553, (1994).

DOI: 10.1557/jmr.1994.2540

[17] H. Wen, Study on preparation and properties of high curie temperature perovskite structure piezoelectric thin films, Tsinghua University: Beijing, 2007, pp.96-97.

[18] Y. Sakashita, H. Segawa, K. Tominaga, and M. Okada, Dependence of electrical properties on film thickness in Pb(ZrxTi1 -x)O3 thin films produced by metalorganic chemical vapor deposition, J. Appl. Phys., Vol. 73, No. 11, pp.7857-7863, (1993).

DOI: 10.1063/1.353936

[19] R. Bouregba, a G. Le Rhun, G. Poullain, and G. Leclerc, Investigation of thickness dependence of the ferroelectric properties of Pb(Zr0 . 6Ti0 . 4)O3 thin-film capacitors, J. Appl. Phys., Vol. 99, p.034102, (2006).

DOI: 10.1063/1.2170414

[20] T. Hase , T. Sakuma , Y. Miyasaka , K. Hirata, and N. Hosokawa , Preparation of Pb(Zr, Ti)O3 Thin Films by Multi-Target Sputtering, Jpn. J. Appl. Phys., Vol. 32, pp.4061-4064, (1993).

DOI: 10.1143/jjap.32.4061

[21] L. Pintilie, Extrinsic contributions to the apparent thickness dependence of the dielectric constant in epitaxial Pb(Zr, Ti)O3 thin films, PHYSICAL REVIEW B, Vol. 75, No. 22, p.224113. 1-224113. 12, (2007).

[22] C. Harnagea, A. Pignolet, M. Alexe, D. Hesse, and U. Goesele. Quantitative， ferroelectric characterization of single submicron grains in Bi-layered perovskite thin films，, Appl. Phys. A: Mater. Sci. Process., Vol. 70, pp.261-267, (2000).

DOI: 10.1007/s003390050045

[23] D. Damjanovic, Ferroelectric, dielectric and piezoelectric properties of ferroelectric thin films and ceramics, Rep. Prog. Phys., Vol. 61, pp.1267-1324, (1998).

DOI: 10.1088/0034-4885/61/9/002

[24] A.F. Devonshire, Theory of barium titanate–Part II, Philos. Mag., Vol. 42, pp.1065-1079, (1951).
