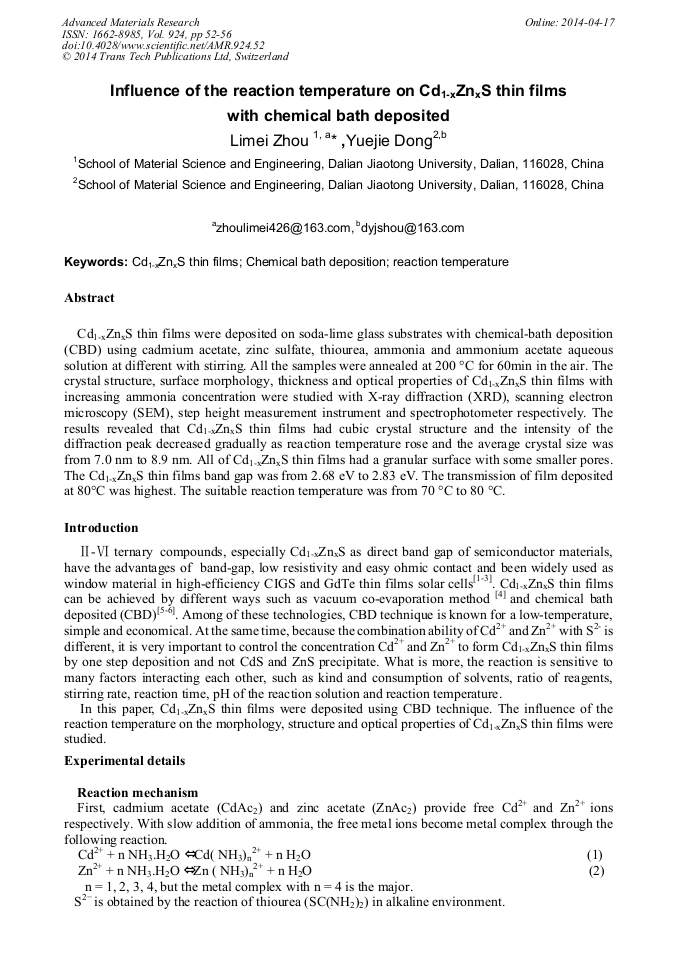

Influence of the Reaction Temperature on Cd_1-xZn_xS Thin Films with Chemical Bath Deposited

Abstract:

Cd_1-xZn_xS thin films were deposited on soda-lime glass substrates with chemical-bath deposition (CBD) using cadmium acetate, zinc sulfate, thiourea, ammonia and ammonium acetate aqueous solution at different with stirring. All the samples were annealed at 200 °C for 60 min in the air. The crystal structure, surface morphology, thickness and optical properties of Cd_1-xZn_xS thin films with increasing ammonia concentration were studied with X-ray diffraction (XRD), scanning electron microscopy (SEM), step height measurement instrument and spectrophotometer respectively. The results revealed that Cd_1-xZn_xS thin films had cubic crystal structure and the intensity of the diffraction peak decreased gradually as reaction temperature rose and the average crystal size was from 7.0 nm to 8.9 nm. All of Cd_1-xZn_xS thin films had a granular surface with some smaller pores. The Cd_1-xZn_xS thin films band gap was from 2.68 eV to 2.83 eV. The transmission of film deposited at 80 °C was highest. The suitable reaction temperature was from 70 °C to 80 °C.

You might also be interested in these eBooks

Frontiers in Micro-Nano Science and Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 924)

Pages:

52-56

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.924.52

Citation:

Cite this paper

Online since:

April 2014

Authors:

Li Mei Zhou*, Yue Jie Dong

Keywords:

Cd_1-xZn_xS Thin Films, Chemical Bath Deposition, Reaction Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Nathera A. Al-Tememee, Nada M. Saeed, Sundus M. A. Al-Dujayli, Baha T. Chiad. The effect of Zn concentration on the optical properties of Cd1-xZnxS films for solar cell applications, J. Advances in Materials Physics and Chemistry. 2(2012) 69-74.

DOI: 10.4236/ampc.2012.22012

Google Scholar

[2] Isaiah O. Oladeji, Lee Chow. Synthesis and processing of CdS/ZnS multilayer films for solar cell application.J. Thin Solid Films 474 (2005) 77– 83.

DOI: 10.1016/j.tsf.2004.08.114

Google Scholar

[3] J. Zhou, X. Wu, G. Teeter. CBD-Cd1-xZnxS thin films and their application in CdTe solar cells, J. Physica status solidi (b) 241(2004) 775-778.

DOI: 10.1002/pssb.200304218

Google Scholar

[4] Di Xia, Tian Caijuan, Tang Rongzhe, Li Wei et al. Structural and optical properties of Cd0. 8Zn0. 2S thin films, J. Journal of Semiconductors. 32(2011) 1-4.

Google Scholar

[5] Ran Zhai, ShuBo Wang, HaiYan Xu, Hao WangT, Hui Yan. Rapid formation of CdS, ZnS thin films by microwave-assisted chemical bath deposition.J. Materials Letters 59 (2005) 1497– 1501.

DOI: 10.1016/j.matlet.2005.01.008

Google Scholar

[6] Alaa A. AL- Jubory. Study on the effect of copper doping on the structural and optical properties of Cd0. 7Zn0. 3S nanocrystalline thin films prepared by chemical bath deposition, J. International Journal of Science and Technology. 2(2012).

Google Scholar
