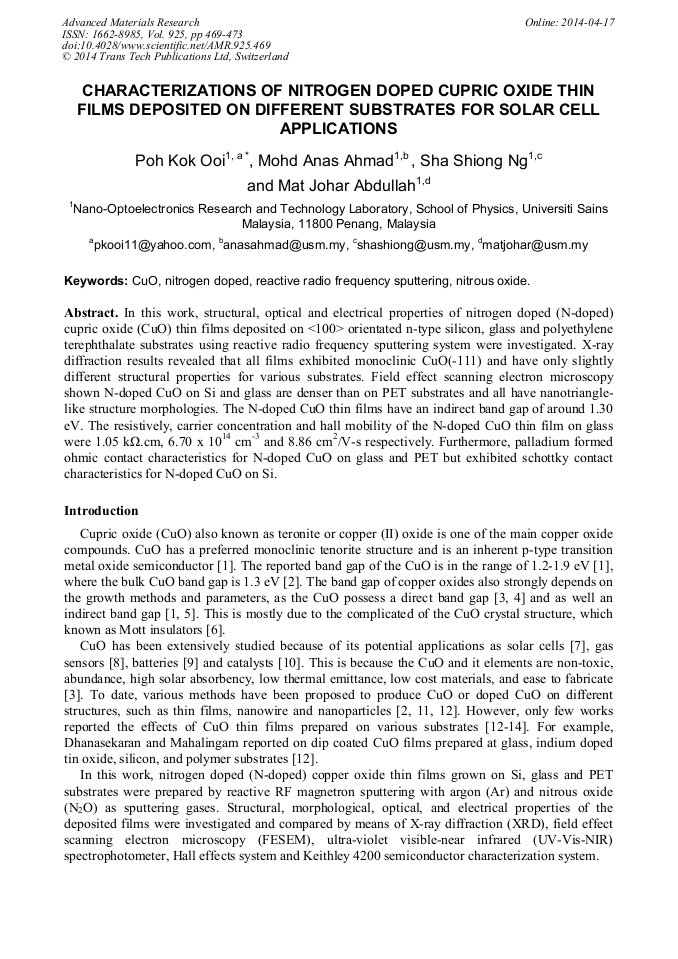

Characterizations of Nitrogen Doped Cupric Oxide Thin Films Deposited on Different Substrates for Solar Cell Applications

Abstract:

In this work, structural, optical and electrical properties of nitrogen doped (N-doped) cupric oxide (CuO) thin films deposited on <100> orientated n-type silicon, glass and polyethylene terephthalate substrates using reactive radio frequency sputtering system were investigated. X-ray diffraction results revealed that all films exhibited monoclinic CuO(-111) and have only slightly different structural properties for various substrates. Field effect scanning electron microscopy shown N-doped CuO on Si and glass are denser than on PET substrates and all have nanotriangle-like structure morphologies. The N-doped CuO thin films have an indirect band gap of around 1.30 eV. The resistively, carrier concentration and hall mobility of the N-doped CuO thin film on glass were 1.05 kΩ.cm, 6.70 x 10¹⁴ cm^-3 and 8.86 cm²/V-s respectively. Furthermore, palladium formed ohmic contact characteristics for N-doped CuO on glass and PET but exhibited schottky contact characteristics for N-doped CuO on Si.

• Periodical: Advanced Materials Research (Volume 925)
• Pages: 469-473
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.925.469
• Online since: April 2014
• Authors: Poh Kok Ooi*, Mohd Anas Ahmad, Sha Shiong Ng, Mat Johar Abdullah
• Keywords: CuO, Nitrogen Doped, Nitrous Oxide, Reactive Radio Frequency Sputtering

References

[1] D. Wu, Q. Zhang, M. Tao, LSDA+U study of cupric oxide: Electronic structure and native point defects, Phys. Rev. B 73 (2006) 235206.

[2] N. Serin, T. Serin, S. Horzum, Y. Celik, Annealing effects on the properties of copper oxide thin films prepared by chemical deposition, Semicond. Sci. Tech. 20 (2005) 398-401.

DOI: 10.1088/0268-1242/20/5/012

[3] A.Y. Oral, E. Menşur, M.H. Aslan, E. Başaran, The preparation of copper(II) oxide thin films and the study of their microstructures and optical properties, Mater. Chem. Phys. 83 (2004) 140-144.

DOI: 10.1016/j.matchemphys.2003.09.015

[4] J.F. Pierson, A. Thobor-Keck, A. Billard, Cuprite, paramelaconite and tenorite films deposited by reactive magnetron sputtering, Appl. Surf. Sci. 210 (2003) 359-367.

DOI: 10.1016/s0169-4332(03)00108-9

[5] N.A.M. Shanid, M.A. Khadar, Evolution of nanostructure, phase transition and band gap tailoring in oxidized Cu thin films, Thin Solid Films 516 (2008) 6245-6252.

DOI: 10.1016/j.tsf.2007.11.119

[6] W. Ching, Y. -N. Xu, K. Wong, Ground-state and optical properties of Cu2O and CuO crystals, Phys. Rev. B 40 (1989) 7684.

[7] R. Motoyoshi, T. Oku, H. Kidowaki, A. Suzuki, K. Kikuchi, S. Kikuchi, B. Jeyadevan, Structure and photovoltaic activity of cupric oxide-based thin film solar cells, J. Ceram. Soc. Jpn. 118 (2010) 1021-1023.

DOI: 10.2109/jcersj2.118.1021

[8] C. Yang, X. Su, F. Xiao, J. Jian, J. Wang, Gas sensing properties of CuO nanorods synthesized by a microwave-assisted hydrothermal method, Sens. Actuators B 158 (2011) 299-303.

DOI: 10.1016/j.snb.2011.06.024

[9] Y.J. Mai, X.L. Wang, J.Y. Xiang, Y.Q. Qiao, D. Zhang, C.D. Gu, J.P. Tu, CuO/graphene composite as anode materials for lithium-ion batteries, Electrochim. Acta 56 (2011) 2306-2311.

DOI: 10.1016/j.electacta.2010.11.036

[10] J.L. Cao, Q.F. Deng, Z.Y. Yuan, Mesoporous Ce0. 8Zr0. 2O2 solid solutions-supported CuO nanocatalysts for CO oxidation: A comparative study of preparation methods, Journal of Materials Science 44/24 (2009) 6663.

DOI: 10.1007/s10853-009-3582-9

[11] S.C. Ray, Preparation of copper oxide thin film by the sol-gel-like dip technique and study of their structural and optical properties, Sol. Energy Mater. Sol. Cells 68 (2001) 307-312.

DOI: 10.1016/s0927-0248(00)00364-0

[12] V. Dhanasekaran, T. Mahalingam, Physical properties evaluation of various substrates coated cupric oxide thin films by dip method, J. Alloys Comp. 539 (2012) 50-56.

DOI: 10.1016/j.jallcom.2012.05.092

[13] S.B. Ogale, P.G. Bilurkar, N. Mate, S.M. Kanetkar, N. Parikh, B. Patnaik, Deposition of copper oxide thin films on different substrates by pulsed excimer laser ablation, J. Appl. Phys. 72 (1992) 3765-3769.

DOI: 10.1063/1.352271

[14] M. Kawwam, F. Alharbi, A. Aldwayyan, K. Lebbou, Morphological study of PLD grown CuO films on SrTiO3, sapphire, quartz and MgO substrates, Appl. Surf. Sci. 258 (2012) 9949-9953.

DOI: 10.1016/j.apsusc.2012.06.055

[15] S. Ilican, M. Caglar, Y. Caglar, Materials Science-Poland 25/3 (2007) 709.

[16] F.M. Li, R. Waddingham, W.I. Milne, A.J. Flewitt, S. Speakman, J. Dutson, S. Wakeham, M. Thwaites, Thin Solid Films 520/4 (2011) 1278.

DOI: 10.1016/j.tsf.2011.04.192
