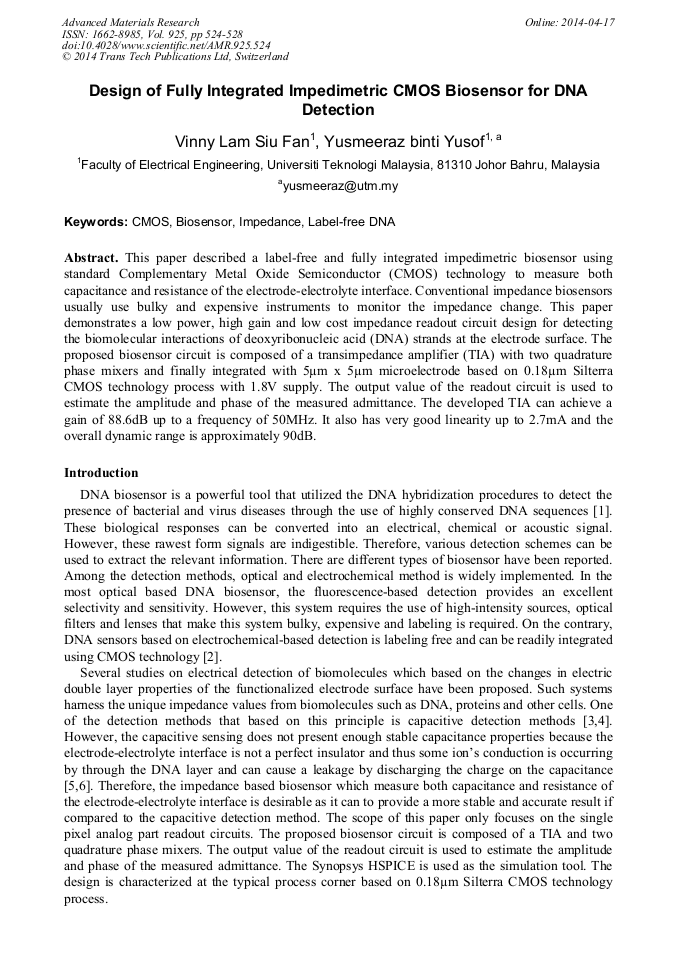

Design of Fully Integrated Impedimetric CMOS Biosensor for DNA Detection

Abstract:

This paper described a label-free and fully integrated impedimetric biosensor using standard Complementary Metal Oxide Semiconductor (CMOS) technology to measure both capacitance and resistance of the electrode-electrolyte interface. Conventional impedance biosensors usually use bulky and expensive instruments to monitor the impedance change. This paper demonstrates a low power, high gain and low cost impedance readout circuit design for detecting the biomolecular interactions of deoxyribonucleic acid (DNA) strands at the electrode surface. The proposed biosensor circuit is composed of a transimpedance amplifier (TIA) with two quadrature phase mixers and finally integrated with 5μm x 5μm microelectrode based on 0.18μm Silterra CMOS technology process with 1.8V supply. The output value of the readout circuit is used to estimate the amplitude and phase of the measured admittance. The developed TIA can achieve a gain of 88.6dB up to a frequency of 50MHz. It also has very good linearity up to 2.7mA and the overall dynamic range is approximately 90dB.

• Periodical: Advanced Materials Research (Volume 925)
• Pages: 524-528
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.925.524
• Online since: April 2014
• Authors: Vinny Lam Siu Fan, Yusmeeraz Yusof*
• Keywords: Biosensor, CMOS, Impedance, Label-Free DNA

References

[1] N. Mathur, A. Mahendru, N. Brar, and D. Pande, DNA Based Biosensor in Disease Diagnosis, World Journal of Pharmacy and Pharmaceutical Sciences, 2 (2012) 407–428.

[2] A. Koyun, E. Ahlatcıoğlu, and Y. K. İpek, A Roadmap of Biomedical Engineers and Milestones, in P. S. Kara (Eds), Biosensors and Their Principles, Turkey, 2012, p.115–143.

[3] B. Lee, K. -H. Lee, J. -O. Lee, M. -J. Sohn, S. -H. Choi, S. -W. Wang, J. -B. Yoon, and G. -H. Cho, An electronic DNA sensor chip using integrated capacitive read-out circuit, Annual International Conference of the IEEE Engineering in Medicine and Biology Society. IEEE Engineering in Medicine and Biology Society, 2010 (2010).

DOI: 10.1109/iembs.2010.5627101

[4] K. -H. Lee, S. Choi, J. O. Lee, J. -B. Yoon, and G. -H. Cho, CMOS capacitive biosensor with enhanced sensitivity for label-free DNA detection, IEEE International Solid-State Circuits Conference, (2012) 120–122.

DOI: 10.1109/isscc.2012.6176945

[5] Y. Yusof, Y. Yanagimoto, S. Uno, and K. Nakazato, Electrical Characteristics of Biomodified Electrodes using Nonfaradaic Electrochemical Impedance Spectroscopy, World Academy of Science, Engineering and Technology, 73(2011) 295–299.

[6] K. -H. Lee, J. -O. Lee, M. -J. Sohn, B. Lee, S. -H. Choi, S. K. Kim, J. -B. Yoon, and G. -H. Cho, One-chip electronic detection of DNA hybridization using precision impedance-based CMOS array sensor, Biosensors & bioelectronics, 4(2010) 1373–1379.

DOI: 10.1016/j.bios.2010.07.055

[7] B. Pham, J. Rojer, A 1. 9GHz Gibert Cell Mixer in 0. 18µm CMOS for a Cable Tuner, (2010).
