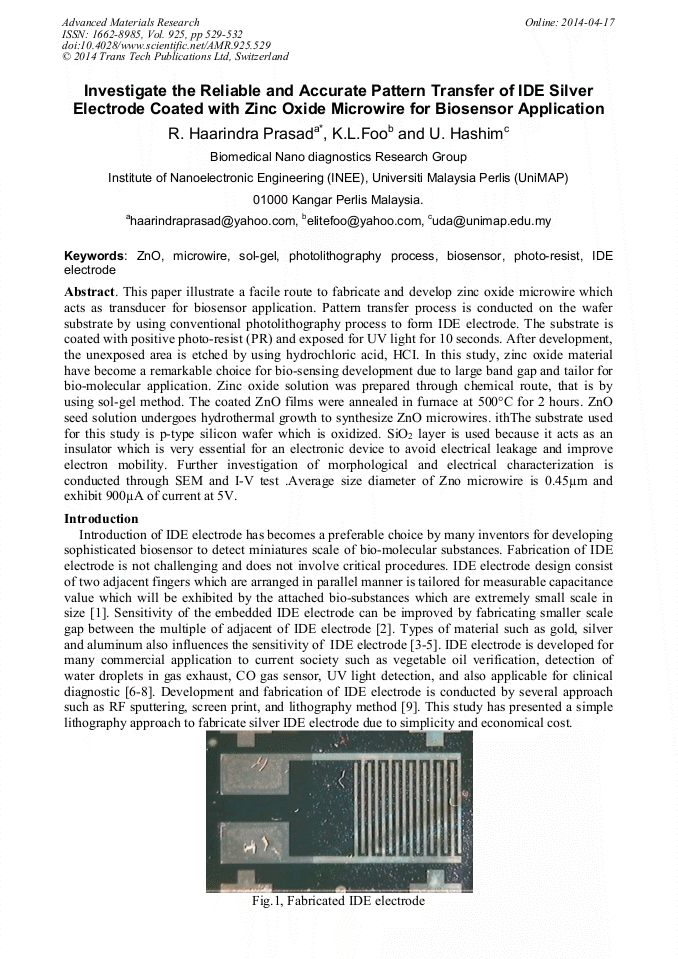

Investigate the Reliable and Accurate Pattern Transfer of IDE Silver Electrode Coated with Zinc Oxide Microwire for Biosensor Application

Abstract:

This paper illustrate a facile route to fabricate and develop zinc oxide microwire which acts as transducer for biosensor application. Pattern transfer process is conducted on the wafer substrate by using conventional photolithography process to form IDE electrode. The substrate is coated with positive photo-resist (PR) and exposed for UV light for 10 seconds. After development, the unexposed area is etched by using hydrochloric acid, HCI. In this study, zinc oxide material have become a remarkable choice for bio-sensing development due to large band gap and tailor for bio-molecular application. Zinc oxide solution was prepared through chemical route, that is by using sol-gel method. The coated ZnO films were annealed in furnace at 500°C for 2 hours. ZnO seed solution undergoes hydrothermal growth to synthesize ZnO microwires. ithThe substrate used for this study is p-type silicon wafer which is oxidized. SiO₂ layer is used because it acts as an insulator which is very essential for an electronic device to avoid electrical leakage and improve electron mobility. Further investigation of morphological and electrical characterization is conducted through SEM and I-V test .Average size diameter of Zno microwire is 0.45μm and exhibit 900μA of current at 5V.

• Periodical: Advanced Materials Research (Volume 925)
• Pages: 529-532
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.925.529
• Online since: April 2014
• Authors: R. Haarindra Prasad*, Kai Long Foo, U. Hashim
• Keywords: Biosensor, IDE Electrode, Microwire, Photolithography Process, Photo-Resist, Sol-Gel, ZNO

References

[1] Chen, Z., Sepúlveda, A., Ediger, M. D., & Richert, R., Dielectric spectroscopy of thin films by dual-channel impedance measurements on differential interdigitated electrode arrays. The European Physical Journal B. 85(8) (2012) 1-5.

DOI: 10.1140/epjb/e2012-30363-0

[2] Bowen, C. R., Bowles, A., Drake, S., Johnson, N., & Mahon, S., Fabrication and finite element modelling of interdigitated electrodes. Ferroelectrics, 228(1) (1999) 257-269.

DOI: 10.1080/00150199908226140

[3] Qureshi, A., Niazi, J. H., Kallempudi, S., & Gurbuz, Y., Label-free capacitive biosensor for sensitive detection of multiple biomarkers using gold interdigitated capacitor arrays. Biosensors and Bioelectronics, 25(10) (2010) 2318-2323.

DOI: 10.1016/j.bios.2010.03.018

[4] Arshak, K., & Gaidan, I., Development of a novel gas sensor based on oxide thick films. Materials Science and Engineering: B 118(1) (2005) 44-49.

DOI: 10.1016/j.mseb.2004.12.061

[5] Schift, H., Jaszewski, R. W., David, C., & Gobrecht, J., Nanostructuring of polymers and fabrication of interdigitated electrodes by hot embossing lithography, Microelectronic engineering, 46(1) (1999) 121-124.

DOI: 10.1016/s0167-9317(99)00030-1

[6] D. Schonauer and R. Moos, Detection of water droplets on exhaust gas sensors, Sensors and Actuators B: Chemical. Vol. 148 (2010) 624-629.

DOI: 10.1016/j.snb.2010.05.060

[7] Hsueh, T. J., Chen, Y. W., Chang, S. J., Wang, S. F., Hsu, C. L., Lin, Y. R., .. & Chen, I., ZnO nanowire-based CO sensors prepared on patterned ZnO: Ga/SiO< sub> 2</sub>/Si templates. Sensors and Actuators B: Chemical, 125(2) (2007) 498-503.

DOI: 10.1016/j.snb.2007.02.059

[8] He, Y., Zhang, W., Zhang, S., Kang, X., Peng, W., & Xu, Y. Study of the photoconductive ZnO UV detector based on the electrically floated nanowire array. Sensors and Actuators A: Physical. 181 (2012) 6-12.

DOI: 10.1016/j.sna.2012.04.020

[9] W. Olthuis, A.J. Sprenkels, J.G. Bomer, P. Bergveld, Planar interdigitated electrolyte-conductivity sensors on an insulating substrate covered with Ta2O5, Sens. Actuators, B Chem. 43 (1997) 211–216.

DOI: 10.1016/s0925-4005(97)00157-3

[10] Park, W. I., Yi, G. C., Kim, M., & Pennycook, S. J. ZnO Nanoneedles Grown Vertically on Si Substrates by Non‐Catalytic Vapor‐Phase Epitaxy. Advanced Materials. 14(24) (2002) 1841-1843.

DOI: 10.1002/adma.200290015

[11] Sun, Y., George Ndifor-Angwafor, N., Jason Riley, D., & Ashfold, M. N. Synthesis and photoluminescence of ultra-thin ZnO nanowire/nanotube arrays formed by hydrothermal growth. Chemical physics letters, 431(4) (2006) 352-357.

DOI: 10.1016/j.cplett.2006.09.100

[12] Rani, S., Suri, P., Shishodia, P. K., & Mehra, R. M. Synthesis of nanocrystalline ZnO powder via sol–gel route for dye-sensitized solar cells. Solar Energy Materials and Solar Cells, 92(12) (2008) 1639-1645.

DOI: 10.1016/j.solmat.2008.07.015
