Structure and Microstructure of Binary Nitride TiN Thin Films Deposited by DC Reactive Sputtering

Abstract:

Titanium nitride (TiN) thin films were deposited on to unheated silicon (100) and stainless steel substrates by home-made direct current (DC) reactive magnetron sputtering method at a deposition of 60 min in an Ar-N₂ gas mixture. The effects of sputtering power on structure and microstructure of these films have been studied. The films were analyzed by X-ray diffraction (XRD), Atomic Force Microscope (AFM) and Field-Emission Scanning Electron Microscope (FE-SEM). The films colors were influenced by sputtering parameter which altered from green purple to light gold and dark gold, respectively. By XRD, the polycrystalline structure of the as-deposited films was face center cubic (fcc) of TiN structure with (111), (200), (220), and (311), planes. The increasing of sputtering power transformed film from amorphous phase to crystal phase with crystal size were enhanced from 21.9 nm to 39.8 nm. The AFM scans revealed that sputtering power significantly affected surface morphologies and thicknesses of the TiN films. With increase in sputtering power, the roughness and films thickness were increased from 0.5 nm to 25.1 nm and 331 nm to 1113 μm, respectively. The microstructure combined with cross-section analysis FE-SEM revealed that the grain refinement with columnar structure were obtained for the film deposited at sputtering power of 270 W.

You might also be interested in these eBooks

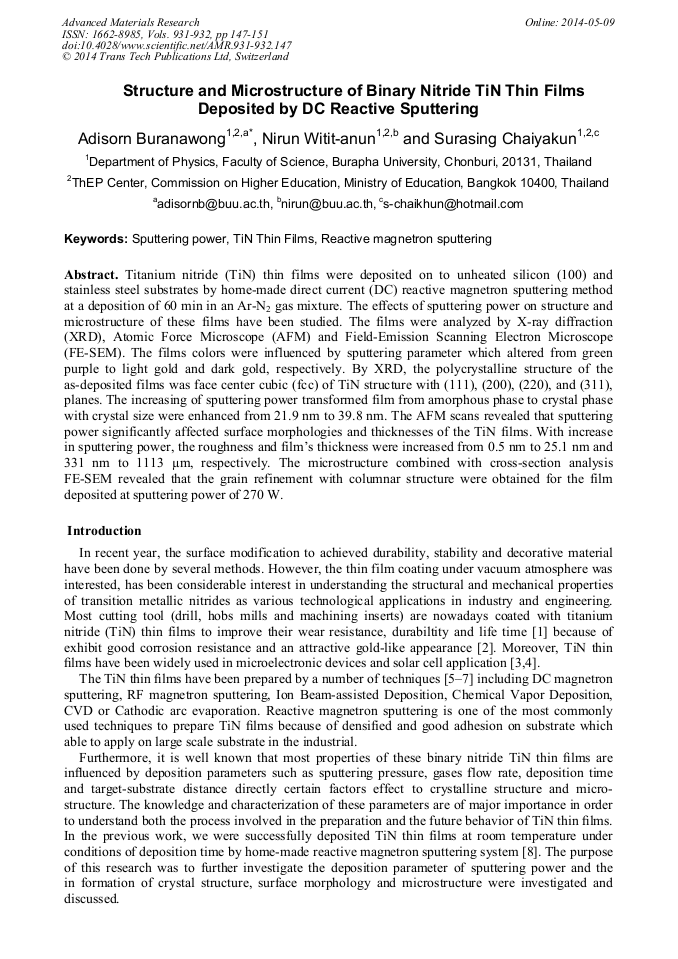

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 931-932)

Pages:

147-151

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.931-932.147

Citation:

Cite this paper

Online since:

May 2014

Authors:

Adisorn Buranawong*, Nirun Witit-Anun, Surasing Chaiyakun

Keywords:

Reactive Magnetron Sputtering, Sputtering Power, TiN Thin Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] L. Xuechao, L. Changsheng, Z. Ye, T. Hua, L. Guowei, M. Chaochao, Tribological properties of the Ti-Al-N thin films with different components fabricated by double-targeted co-sputtering, Appl. Surf. Sci. 256 (2010) 4272-4279.

DOI: 10.1016/j.apsusc.2010.02.014

Google Scholar

[2] S.H. Ahn, J.H. Hong, J.G. Kim, J.G. Han, Effect of microstructure on corrosion behavior of TiN hard coatings produced by a modified two-grid attachment magnetron sputtering process, Thin Solid Films. 515 (2007) 6878-6883.

DOI: 10.1016/j.tsf.2007.01.025

Google Scholar

[3] F. Vaz, P. Cerqueira, L. Rebouta, S.M.C. Nascimento, E. Alves, Ph. Goudeau, J.P. Riviere, K. Pischow, J. de Rijk, Structural, optical and mechanical properties of coloured TiNxOy thin films, Thin Solid Films. 447–448 (2004) 449-454.

DOI: 10.1016/s0040-6090(03)01123-4

Google Scholar

[4] G.B. Smith, A. Ben-David, P.D. Swift, A new type of TiN coating combining broad visible transparency and solar control, Renew. Energ. 22 (2001) 79-84.

DOI: 10.1016/s0960-1481(00)00071-9

Google Scholar

[5] Y.L. Jeyachandran, Sa.K. Narayandass, D. Mangalaraj, S. Areva, J.A. Mielczarski, Properties of titanium nitride films prepared by direct current magnetron sputtering, Mat. Sci. Eng. A. 445-446 (2007) 223-236.

DOI: 10.1016/j.msea.2006.09.021

Google Scholar

[6] K. Lal, A.K. Meikap, S.K. Chattopadhyay, S.K. Chatterjee, M. Ghosh, K. Baba, R. Hatada, Electrical resistivity of titanium nitride thin films prepared by ion beam-assisted deposition, Physica B 307 (2001) 150-157.

DOI: 10.1016/s0921-4526(01)00626-3

Google Scholar

[7] S. Niyomsoan, W. Grant, D.L. Olson, B. Misha, Variation of color in titanium and zirconium nitride decorative thin films. Thin Solid Films 415 (2002) 187-194.

DOI: 10.1016/s0040-6090(02)00530-8

Google Scholar

[8] A. Buranawong, K. Saisereephap, N. Witit-Anun, J. Kaewkhao, S. Chaiyakun, Preparation and Characterization of Nanostructured TiN Thin Films Deposited by DC Reactive Magnetron Sputtering, Adv. Mater. Res. 770 (2013) 165-168.

DOI: 10.4028/www.scientific.net/amr.770.165

Google Scholar

[9] P.K. Barhai, K. Neelam, I. Banerjee, S.K. Pabi, S.K. Mahapatra, Study of the effect of plasma current density on the formation of titanium nitride and titanium oxynitride thin films prepared by reactive DC magnetron, Vaccum 84 (2010) 896-901.

DOI: 10.1016/j.vacuum.2009.12.004

Google Scholar

[10] M. H. Islam, R. Wuhrer, M. Berkahn, B. Cornell, S. M. Valenzuela, D. K. Martin, Nanostructured TiN thin films suitable for medical application. Material Forum 32 (2008) 129-136.

Google Scholar
