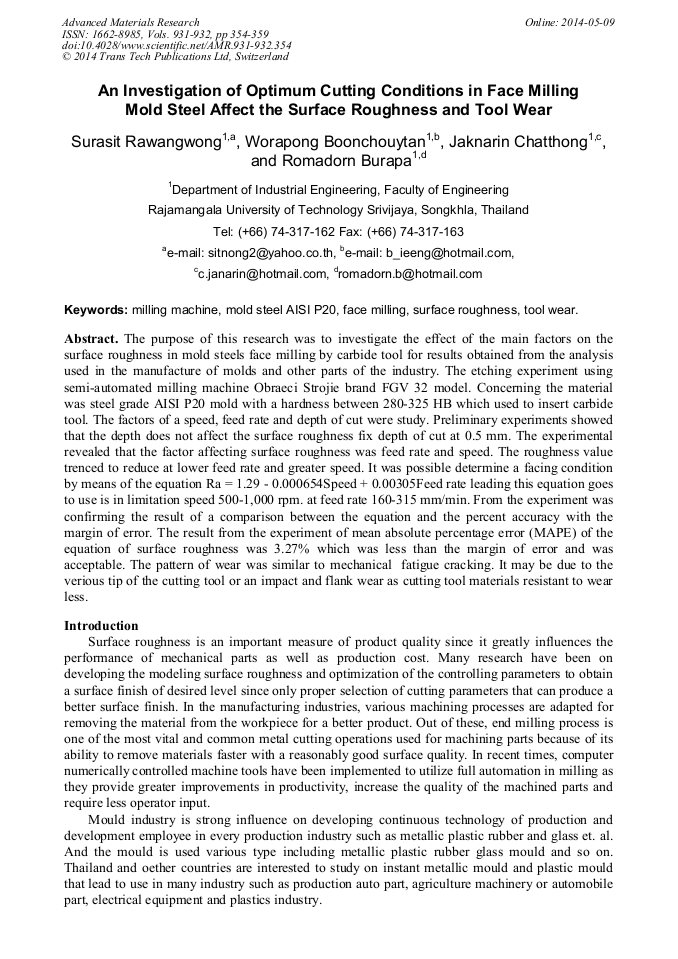

An Investigation of Optimum Cutting Conditions in Face Milling Mold Steel Affect the Surface Roughness and Tool Wear

Abstract:

The purpose of this research was to investigate the effect of the main factors on the surface roughness in mold steels face milling by carbide tool for results obtained from the analysis used in the manufacture of molds and other parts of the industry. The etching experiment using semi-automated milling machine Obraeci Strojie brand FGV 32 model. Concerning the material was steel grade AISI P20 mold with a hardness between 280-325 HB which used to insert carbide tool. The factors of a speed, feed rate and depth of cut were study. Preliminary experiments showed that the depth does not affect the surface roughness fix depth of cut at 0.5 mm. The experimental revealed that the factor affecting surface roughness was feed rate and speed. The roughness value trenced to reduce at lower feed rate and greater speed. It was possible determine a facing condition by means of the equation Ra = 1.29 - 0.000654Speed + 0.00305Feed rate leading this equation goes to use is in limitation speed 500-1,000 rpm. at feed rate 160-315 mm/min. From the experiment was confirming the result of a comparison between the equation and the percent accuracy with the margin of error. The result from the experiment of mean absolute percentage error (MAPE) of the equation of surface roughness was 3.27% which was less than the margin of error and was acceptable. The pattern of wear was similar to mechanical fatigue cracking. It may be due to the verious tip of the cutting tool or an impact and flank wear as cutting tool materials resistant to wear less.

• Periodical: Advanced Materials Research (Volumes 931-932)
• Pages: 354-359
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.931-932.354
• Online since: May 2014
• Authors: Surasit Rawangwong*, Worapong Boonchouytan, Jaknarin Chatthong, Romadorn Burapa
• Keywords: Face Milling, Milling Machine, Mold Steel AISI P20, Surface Roughness (SR), Tool Wear

References

[1] Oktem, H., Erzurumlu, T. and Kurtaran, H. (2005) Application of response surface methodology in the optimization of cutting conditions for surface roughness, Journal of Materials Processing Technology, 170 (1-2) 11-16.

DOI: 10.1016/j.jmatprotec.2005.04.096

[2] Reddy, N. S. K. and Rao, P. V. (2005) Selection of optimum tool geometry and cutting conditions using surface roughness prediction model for end milling, Int. J. Adv. Manuf. Technol, 26 (11-12) 1202-1210.

DOI: 10.1007/s00170-004-2110-y

[3] Ozcelik, B. and Bayramoglu, M. (2006) The statistical modeling of surface roughness in high speed flat end milling, International Journal of Machine Tools and Manufacture, 46 (12-13) 1395-1402.

DOI: 10.1016/j.ijmachtools.2005.10.005

[4] Bagci, E. and Aykut, S. (2006) A study of Taguchi optimization method for identifying optimum surface roughness in CNC face milling of cobalt-based alloy (satellite 6), Int. J. Adv. Manuf. Technol, 29 (9-10) 940-947.

DOI: 10.1007/s00170-005-2616-y

[5] Chang, C. K. and Lu, H. S. (2007) Design optimization of cutting parameters for side milling operations with multiple performance characteristics, Int. J. Adv. Manuf. Technol, 32 (1-2) 18-26.

DOI: 10.1007/s00170-005-0313-5

[6] Ploypanichjaroen, K. (2003) Engineering statistics Volume 2. Minitab processed. 4th ed. Technology Promotion Association (Thai-Japanese). Bangkok.

[7] Montgomery, D.C. (2009) Design and analysis of experiments. 7th ed. john Wiley & Son, inc., New York.

[8] Sutus Na Ayuthaya, P., and Luengpaiboon, P. (2008) Design and analysis of experiment. Top publishing Co., Ltd., Bangkok.
