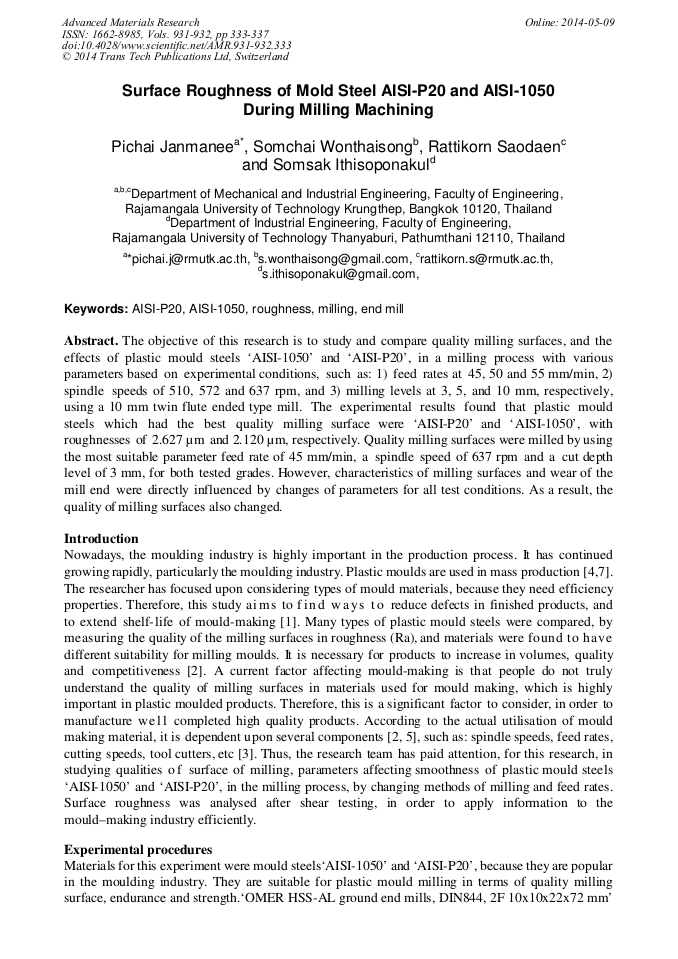

Surface Roughness of Mold Steel AISI-P20 and AISI-1050 during Milling Machining

Abstract:

The objective of this research is to study and compare quality milling surfaces, and the effects of plastic mould steels AISI-1050 and AISI-P20, in a milling process with various parameters based on experimental conditions, such as: 1) feed rates at 45, 50 and 55 mm/min, 2) spindle speeds of 510, 572 and 637 rpm, and 3) milling levels at 3, 5, and 10 mm, respectively, using a 10 mm twin flute ended type mill. The experimental results found that plastic mould steels which had the best quality milling surface were AISI-P20 and AISI-1050, with roughnesses of 2.627 μm and 2.120 μm, respectively. Quality milling surfaces were milled by using the most suitable parameter feed rate of 45 mm/min, a spindle speed of 637 rpm and a cut depth level of 3 mm, for both tested grades. However, characteristics of milling surfaces and wear of the mill end were directly influenced by changes of parameters for all test conditions. As a result, the quality of milling surfaces also changed.

• Periodical: Advanced Materials Research (Volumes 931-932)
• Pages: 333-337
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.931-932.333
• Online since: May 2014
• Authors: Janmanee Pichai*, Somchai Wonthaisong, Rattikorn Saodaen, Somsak Ithisoponakul
• Keywords: AISI-1050, AISI-P20, End Mill, Milling, Roughness

References

[1] J. Vivancos, C.J. Luis, J.A. Ortiz, H.A. Gonz´alez, Analysis of factors affecting the high-speed side milling of hardened diesteels, Journal of Materials Processing Technology. Vol. 162–163, 200, p.696–701.

DOI: 10.1016/j.jmatprotec.2005.02.155

[2] ‏ A.F. Ibraheem, S. K. Shather K.A. Khalaf, Prediction of cutting forces by using machine parameters in end milling process,. Engineering and Technology. Vol. 26, No. 11 2008, pp.256-261.

[3] K.A. Abou-El-Hossein, K. Kadirgama, M. Hamdi, and K.Y. Benyounis, Prediction of cutting force in end-milling operation of modified AISI P20 tool steel,. Journal of Materials Processing Technology. Vol. 182, 2007, p.241–247.

DOI: 10.1016/j.jmatprotec.2006.07.037

[4] ‏ P. Franco, M. Estrems, F. Faura., Influence of radial and axial runouts on surface roughness in face milling with round insert cutting tools,. International Journal of Machine Tools & Manufacture. Vol. 44, 2004, p.1555–1565.

DOI: 10.1016/j.ijmachtools.2004.06.007

[5] E. S. Topal, The role of step overratioin prediction of surface roughness in flat end milling, International Journal of Mechanical Sciences. Vol. 51, 2009, 782–789.

DOI: 10.1016/j.ijmecsci.2009.09.003

[6] P. Franco, M. Estrems, F. Faura, Influence of radial and axial runouts on surface roughnessin face milling with round insert cutting tools, International Journal of Machine Tools & Manufacture. Vol. 44, 2004, p.1555–1565.

DOI: 10.1016/j.ijmachtools.2004.06.007

[7] W.Y.H. Liew, X. Ding, Wear progression of carbide tool in low-speed endmilling of stainless steel, Wear. Vol. 265, 2008, p.155–166.

DOI: 10.1016/j.wear.2007.09.003

[8] S. Dolinek, B. Sustarsi, J. Kopa, Wear mechanisms of cutting tools in high-speed cuttingprocesses, Wear. Vol. 250 , 2001, p.349–356.

DOI: 10.1016/s0043-1648(01)00620-2

[9] J. Sun, Y.B. Guo., A new multi-view approach to characterize 3D chip morphology and properties in end milling titanium Ti– 6Al– 4V,. International Journal of Machine Tools & Manufacture 48 (2008) 1486– 1494.

DOI: 10.1016/j.ijmachtools.2008.04.002
