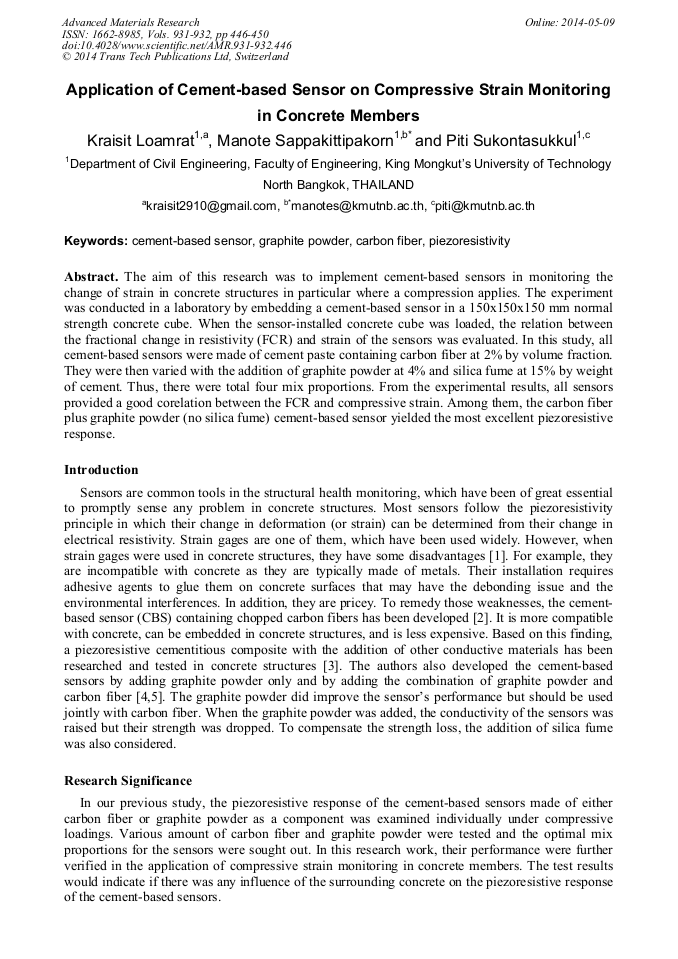

Application of Cement-Based Sensor on Compressive Strain Monitoring in Concrete Members

Abstract:

The aim of this research was to implement cement-based sensors in monitoring the change of strain in concrete structures in particular where a compression applies. The experiment was conducted in a laboratory by embedding a cement-based sensor in a 150x150x150 mm normal strength concrete cube. When the sensor-installed concrete cube was loaded, the relation between the fractional change in resistivity (FCR) and strain of the sensors was evaluated. In this study, all cement-based sensors were made of cement paste containing carbon fiber at 2% by volume fraction. They were then varied with the addition of graphite powder at 4% and silica fume at 15% by weight of cement. Thus, there were total four mix proportions. From the experimental results, all sensors provided a good corelation between the FCR and compressive strain. Among them, the carbon fiber plus graphite powder (no silica fume) cement-based sensor yielded the most excellent piezoresistive response.

• Periodical: Advanced Materials Research (Volumes 931-932)
• Pages: 446-450
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.931-932.446
• Online since: May 2014
• Authors: Kraisit Loamrat, Manote Sappakittipakorn*, Piti Sukontasukkul
• Keywords: Carbon Fiber (CF), Cement-Based Sensor, Graphite Powder, Piezoresistivity

References

[1] Huston, D., Structural Sensing, Health Monitoring and Performance Evaluation., CRC Press (Taylor & Francis Group), United States of America, (2011).

[2] Chung, D.D.L., Cement Reinforced with Short Carbon Fibers: A Multifunctional Material., Compos. Part B-Eng, 31, (2000), pp.511-26.

[3] Azhari, F. and Banthia, N., 2010., Structural Health Monitoring using Piezoresistive Cementitious Composites., 2nd International Conference on Sustainable Construction Materials and Technologies, June 28-30, 2010, Università Politecnica delle Marche, Ancona, Italy.

DOI: 10.18552/2016/scmt4s138

[4] Loamrat, K., Sappakittipakorn, M., and Sukontasukkul, P., Effect of Carbon Fiber and Graphite Powder on Resistivity of Cement-Based Sensor under Compression, Proc. of the 5th International Conference of Asian Concrete Federation, Chonburi, Thailand, October 24-26, 2012, pp.1-5.

DOI: 10.14416/j.ijast.2014.01.005

[5] Loamrat, K., Sappakittipakorn, M., Sukontasukkul, P., and Banthia, N. (2014).

[6] Andrade, M. C., Bolzoni, F., and Fullea, J., Analysis of the Relation between Water and Resistivity Isotherms in Concrete., Materials and Corrosion, 62(2), (2011), p.130–8.

DOI: 10.1002/maco.201005777
