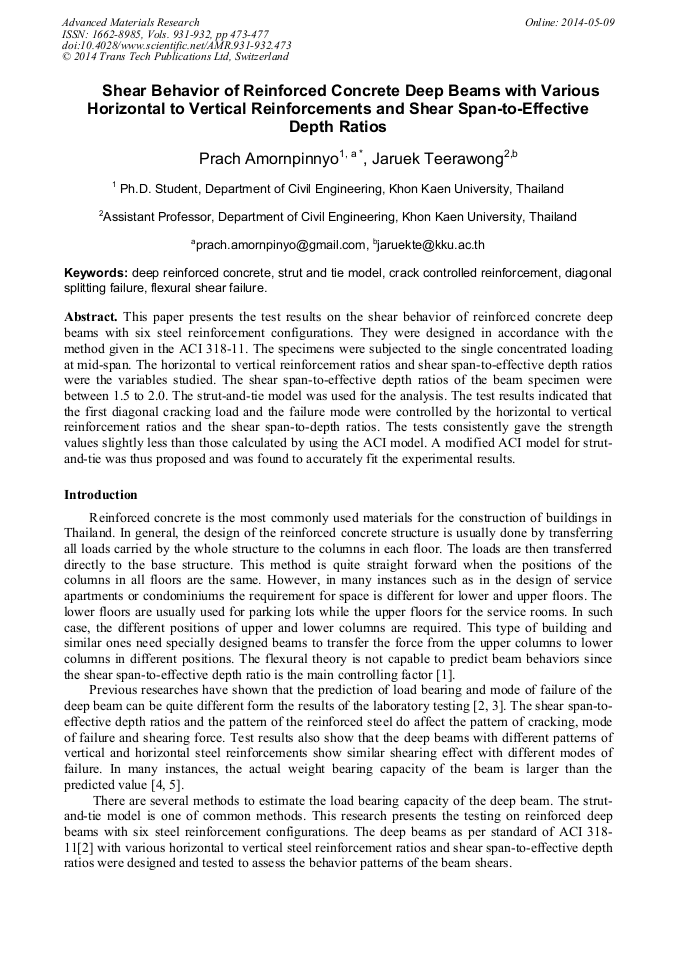

Shear Behavior of Reinforced Concrete Deep Beams with Various Horizontal to Vertical Reinforcements and Shear Span-to-Effective Depth Ratios

Abstract:

This paper presents the test results on the shear behavior of reinforced concrete deep beams with six steel reinforcement configurations. They were designed in accordance with the method given in the ACI 318-11. The specimens were subjected to the single concentrated loading at mid-span. The horizontal to vertical reinforcement ratios and shear span-to-effective depth ratios were the variables studied. The shear span-to-effective depth ratios of the beam specimen were between 1.5 to 2.0. The strut-and-tie model was used for the analysis. The test results indicated that the first diagonal cracking load and the failure mode were controlled by the horizontal to vertical reinforcement ratios and the shear span-to-depth ratios. The tests consistently gave the strength values slightly less than those calculated by using the ACI model. A modified ACI model for strut-and-tie was thus proposed and was found to accurately fit the experimental results.

• Periodical: Advanced Materials Research (Volumes 931-932)
• Pages: 473-477
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.931-932.473
• Online since: May 2014
• Authors: Prach Amornpinnyo, Jaruek Teerawong*
• Keywords: Crack Controlled Reinforcement, Deep Reinforced Concrete, Diagonal Splitting Failure, Flexural Shear Failure, Strut Model, Tie Model

References

[1] J.G. MacGregor, K.J. Wight, Reinforced concrete mechanics and design, fourth ed., Prentice-Hall International Inc, London, (2005).

[2] ACI Committee 318, Building Code Requirements for Structural Concrete (ACI 318M-11) and Commentary, Farmington Hills, (2011).

[3] F. Kong, P.J. Robins, D.F. Cole, Web reinforcement effects on deep beams, ACI Journal. 67 (1970) 1010-1018.

[4] K.N. Smith, A.S. Vantsiotis, Shear strength of deep beams, ACI Journal. 79 (1982) 201-213.

[5] G. Aguilar, A.B. Matamoros, G.J. Parra-Montesinos, J.A. Ramirez, J.K. Wigth, Experimental evaluation of design procedures for shear strength of deep reinforced concrete beams, ACI Structural Journal. 99 (2002) 539-548.

DOI: 10.14359/12123

[6] C.G. Quintero-Febres, G.J. Parra-Montesinos, K.J. Wight, Strength of struts in deep concrete members designed using strut-and-tie method, ACI Structural Journal. 103 (2006) 577-586.

DOI: 10.14359/16434

[7] M.D. Brown, O. Bayrak, Investigation of deep beams with various load configurations, ACI Structural Journal. 104 (2007) 611-620.

[8] G. Russo, R. Venir, M. Pauletta, Reinforced concrete deep beams-Shear strength model and design formula, ACI Structural Journal. 102 (2005) 429-437.

DOI: 10.14359/14414
