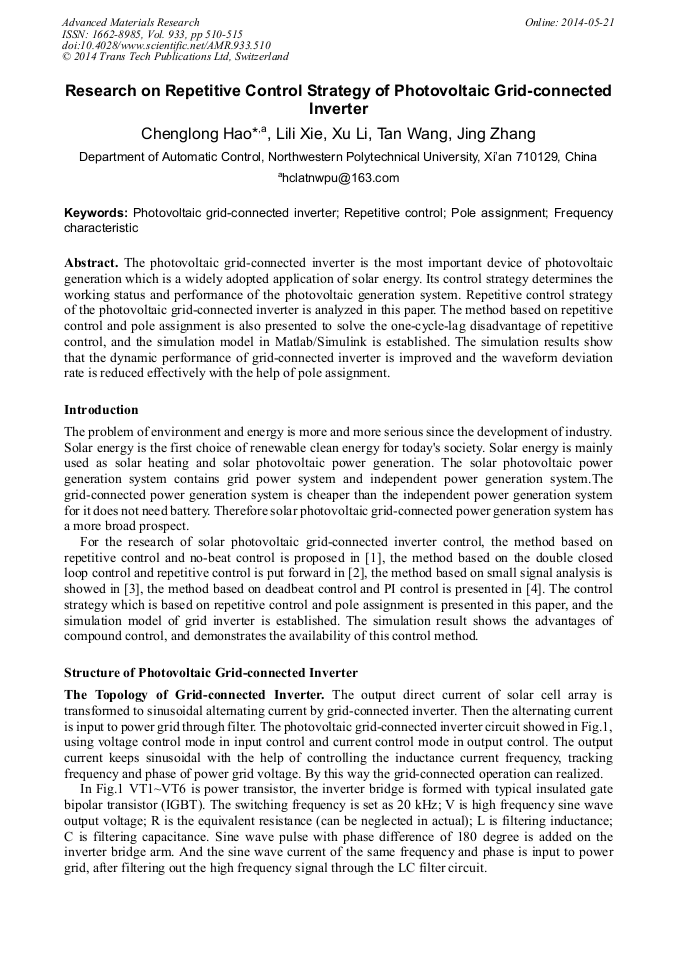

Research on Repetitive Control Strategy of Photovoltaic Grid-Connected Inverter

Abstract:

The photovoltaic grid-connected inverter is the most important device of photovoltaic generation which is a widely adopted application of solar energy. Its control strategy determines the working status and performance of the photovoltaic generation system. Repetitive control strategy of the photovoltaic grid-connected inverter is analyzed in this paper. The method based on repetitive control and pole assignment is also presented to solve the one-cycle-lag disadvantage of repetitive control, and the simulation model in Matlab/Simulink is established. The simulation results show that the dynamic performance of grid-connected inverter is improved and the waveform deviation rate is reduced effectively with the help of pole assignment.

• Periodical: Advanced Materials Research (Volume 933)
• Pages: 510-515
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.933.510
• Online since: May 2014
• Authors: Cheng Long Hao*, Li Li Xie, Xu Li, Tan Wang, Jing Zhang
• Keywords: Frequency Characteristic, Photovoltaic Grid-Connected Inverter, Pole Assignment, Repetitive Control

References

[1] Bouchafaa, F., Beriber, D., Boucherit, M.S. et al. Modeling and simulation of a gird connected PV generation system with MPPT fuzzy logic control[C]. /2010 7th International Muti-Conference on Systems, Signals and Devices. 2010: 1-7.

DOI: 10.1109/ssd.2010.5585530

[2] Liu, Bo, Yang, Xu, Zhang, Yan et al. A new control strategy combing PI and quasi-PR control under rotate frame for three phase grid-connected photovoltaic inverter[C]. /2011 IEEE 8th International Conference on Power Electronics and ECCE Asia. p[v. 1]. 2011: 882-888.

DOI: 10.1109/icpe.2011.5944634

[3] Chi Zhang, Zhe Zhang, Min Chen et al. An improved variable step-size maximum power point tracking (MPPT) based on extremum seeking control (ESC) in gird-connected photovoltaic micro-converter system[C]. /2012 IEEE International Symposium on Industrial Electronics. 2012: 1765-1770.

DOI: 10.1109/isie.2012.6237358

[4] Wang Huan, Xu Honghua, China Solar Energy Society et al. Design and Operation of Multi-string Grid-connected PV Inverter[C]. /15th International Photovoltaic Science and Engineering Conference (PVSEC-15): Technical Digest vol. 2. 2005: 1236-1237.

[5] N. A. Rahim, Saad Mekhilef. Implementation of three-phase gird connected inverter for photovoltaic solar power generation system[C]. /2002 International Conference on Power System Technology (PowerCon 2002), vol. 1. 2002: 570-573.

DOI: 10.1109/icpst.2002.1053607

[6] W. Du,H.F. Wang X.F. Zhang et al. Effect of grid-connected solid oxide fuel cell power generation on power systems small-signal stability[J]. IET renewable power generation, 2012, 6(1): 24-37.

DOI: 10.1049/iet-rpg.2010.0024
