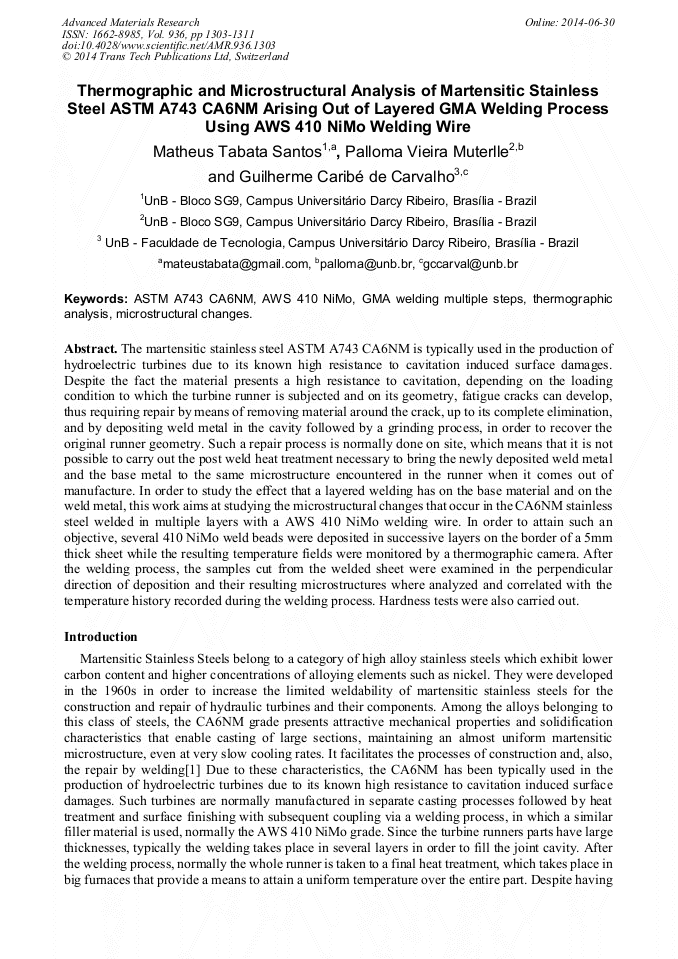

Thermographic and Microstructural Analysis of Martensitic Stainless Steel ASTM A743 CA6NM Arising out of Layered GMA Welding Process Using AWS 410 NiMo Welding Wire

Abstract:

The martensitic stainless steel ASTM A743 CA6NM is typically used in the production of hydroelectric turbines due to its known high resistance to cavitation induced surface damages. Despite the fact the material presents a high resistance to cavitation, depending on the loading condition to which the turbine runner is subjected and on its geometry, fatigue cracks can develop, thus requiring repair by means of removing material around the crack, up to its complete elimination, and by depositing weld metal in the cavity followed by a grinding process, in order to recover the original runner geometry. Such a repair process is normally done on site, which means that it is not possible to carry out the post weld heat treatment necessary to bring the newly deposited weld metal and the base metal to the same microstructure encountered in the runner when it comes out of manufacture. In order to study the effect that a layered welding has on the base material and on the weld metal, this work aims at studying the microstructural changes that occur in the CA6NM stainless steel welded in multiple layers with a AWS 410 NiMo welding wire. In order to attain such an objective, several 410 NiMo weld beads were deposited in successive layers on the border of a 5mm thick sheet while the resulting temperature fields were monitored by a thermographic camera. After the welding process, the samples cut from the welded sheet were examined in the perpendicular direction of deposition and their resulting microstructures where analyzed and correlated with the temperature history recorded during the welding process. Hardness tests were also carried out.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1303-1311
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1303
• Online since: June 2014
• Authors: Matheus Tabata Santos*, Palloma Vieira Muterlle, Guilherme Caribé de Carvalho
• Keywords: ASTM A743 CA6NM, AWS 410 NiMo, GMA Welding Multiple Steps, Microstructural Changes, Thermographic Analysis

References

[1] Allenstein, Â. N. Estudo da resistência à cavitação do aço inoxidável martensítico CA6NM nitretado por plasma - Universidade Federal do Paraná. Dissertação de Mestrado. Curitiba-BR, (2007).

DOI: 10.11606/d.88.2016.tde-16092016-142453

[2] ASTM - Standard Specification for Castings, Iron-Chromium, Iron-Chromium-Nickel, Corrosion Resistant, for General Application, Designation A743, A743M-06, (2006).

DOI: 10.1520/a0743_a0743m-19

[3] Information on http: /www. gazetadopovo. com. br/economia/conteudo. phtml?id=1092579&tit=Reparo-de-turbina-custara-US-8-mi.

[4] Fraga, F. F. Estudo numérico e experimental dos processos de transferência de calor em prototipagem rápida por soldagem a arco. 2013. 130 p. Dissertation (Master Degree in Mechatronic Systems), Universidade de Brasília, Brasília, (2013).

DOI: 10.1590/s0104-92242013000400002

[5] Gouveia, R. R de. A influência da temperatura de interpasse na tenacidade do metal de solda na soldagem multipasse do aço inoxidável martensítico CA6NM pelo processo TIG - Universidade Federal do Paraná. Dissertação de Mestrado, (2008).

DOI: 10.11606/d.97.2016.tde-06072016-150549

[6] ASM International. ASM Handbook: Metallography and Microstructure, (2004).

[7] Acesita, S.A. - Soldagem dos Aços Inoxidáveis - Acesita S.A. Associada a USINOR, (2011).

[8] VAZ, C. T. - Avaliação da resistência à erosão por cavitação do metal de soldas produzidas com consumíveis tipo 13% Cr - 4% Ni - 0, 4% Mo - Universidade Federal de Minas Gerais, Belo Horizonte. Dissertação de Mestrado, (2004).

DOI: 10.14393/19834071.v26.n2.2017.38910

[9] FERREIRA et al. - Identificação das Condições de Falha por Fadiga em Materiais Usados na Fabricação de Pás de Turbinas Hidráulicas: Metodologia, Caracterização dos Ensaios e Resultados - Programa Eletronorte de Pesquisa e Desenvolvimento Tecnológico Ciclo 2004/2005, (2013).
