Study on Wear Behaviors of Ni₃Al/Cr-Carbides Cladding Layer on High Strength Steel Substrate

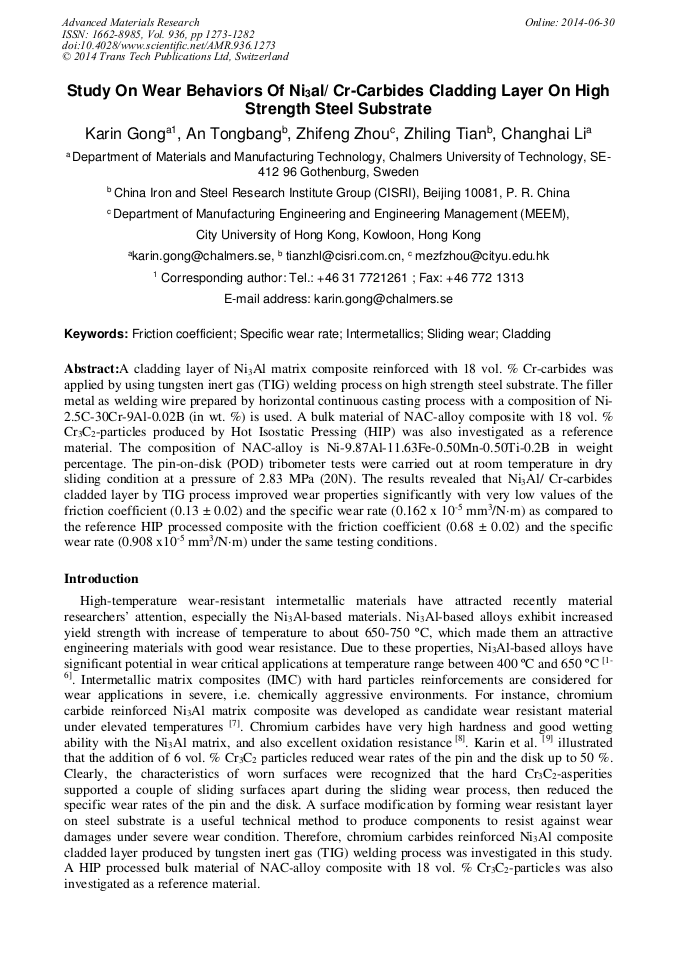

Abstract:

A cladding layer of Ni₃Al matrix composite reinforced with 18 vol. % Cr-carbides was applied by using tungsten inert gas (TIG) welding process on high strength steel substrate. The filler metal as welding wire prepared by horizontal continuous casting process with a composition of Ni-2.5C-30Cr-9Al-0.02B (in wt. %) is used. A bulk material of NAC-alloy composite with 18 vol. % Cr₃C₂-particles produced by Hot Isostatic Pressing (HIP) was also investigated as a reference material. The composition of NAC-alloy is Ni-9.87Al-11.63Fe-0.50Mn-0.50Ti-0.2B in weight percentage. The pin-on-disk (POD) tribometer tests were carried out at room temperature in dry sliding condition at a pressure of 2.83 MPa (20N). The results revealed that Ni₃Al/ Cr-carbides cladded layer by TIG process improved wear properties significantly with very low values of the friction coefficient (0.13 ± 0.02) and the specific wear rate (0.162 x 10^-5 mm³/N·m) as compared to the reference HIP processed composite with the friction coefficient (0.68 ± 0.02) and the specific wear rate (0.908 x10^-5 mm³/N·m) under the same testing conditions.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1273-1282
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1273
• Online since: June 2014
• Authors: Ka Rin Gong*, Tong Bang An, Zhi Feng Zhou, Zhi Ling Tian, Chang Hai Li
• Keywords: Cladding, Friction Coefficient (FC), Intermetallic, Sliding Wear, Specific Wear Rate

References

[1] Marquardt B. J., Wert J. J., Wear Induced Deformation of Ni3Al, (Fe, Co)3Al and (FeNi)3V [J]. Proc. Mater. Res. Soc. 1985, 39: 247.

[2] Blau P. J., DeVore C. E. Sliding Behaviour of Alumina/Nickel and Alumina/Nickel Aluminide Coule at Room and Elevated Temperature [J]. J Tribology, 1988, 110: 646.

DOI: 10.1115/1.3261707

[3] Bonda N. R., Rigney D. A., Unlubricated Sliding Wear of Nickel Aluminides at Room Temperature and 400 °C [J]. Proc. Mater. Res. 1989, 133: 585.

DOI: 10.1557/proc-133-585

[4] Blau P. J., DeVore C. E., Temperature Effects on the Break-in of Nickel Aluminide Alloys [C] Proc. 1989 Wear of Materials Conference, American Society of Mechanical Engineers, 1989: 305.

[5] Blau P. J., DeVore C. E., Sliding Friction and Wear Behaviour of Several Nickel Aluminide Alloys under Dry and Lubricated Condition [J]. Tribol. Ins., Oct. 1990: 226.

DOI: 10.1016/0301-679x(90)90027-m

[6] Johnson M., Mikkola D. E., March P. A. et al, The Resistance of Nickel and Iron Aluminides to Cavitation Erosion and Abrasive Wear [J]. Wear (1990) 140: 279.

DOI: 10.1016/0043-1648(90)90090-w

[7] Shangping Li, Di Feng, Heli Luo, Microstructure and Abrasive Wear Performance of Chromium carbide Reinforced Ni3Al Mareix Composite Coating, Surf. Coat. Tech. 201 (2007), 4542: 4546.

DOI: 10.1016/j.surfcoat.2006.09.106

[8] Compilatory group of machine-producing technology and material (Ed. ), Handbook of machine producing technology and material (second part), Machine Industry Press, 1993, 674: xxx.

[9] Karin Gong, Zhifeng Zhou, P.W. Shum, et al, Tribological Evaluation on Ni3Al-based Alloy and Its Composites Under Unlubricated Wear Condition [J] Wear, (2011) 270, 195: 203.

DOI: 10.1016/j.wear.2010.10.060

[10] Karin Gong, Heli Luo, D. Feng, et. al, Wear of Ni3Al-based Materials and Its Chromium-Carbide Reinforced Composites [J] Wear, (2008) 265, 1751: 1755.

DOI: 10.1016/j.wear.2008.04.038
