Influence of the Mo and V Contents on Microstructure and Secondary Hardening of 6Cr6W2MoV Steel

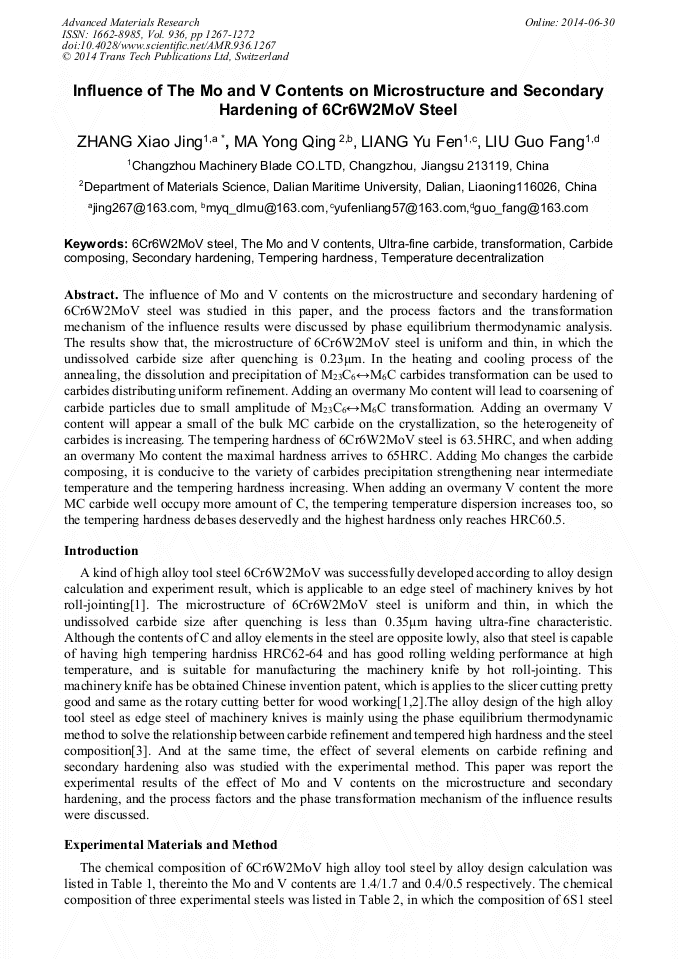

Abstract:

The influence of Mo and V contents on the microstructure and secondary hardening of 6Cr6W2MoV steel was studied in this paper, and the process factors and the transformation mechanism of the influence results were discussed by phase equilibrium thermodynamic analysis. The results show that, the microstructure of 6Cr6W2MoV steel is uniform and thin, in which the undissolved carbide size after quenching is 0.23μm. In the heating and cooling process of the annealing, the dissolution and precipitation of M₂₃C₆↔M₆C carbides transformation can be used to carbides distributing uniform refinement. Adding an overmany Mo content will lead to coarsening of carbide particles due to small amplitude of M₂₃C₆↔M₆C transformation. Adding an overmany V content will appear a small of the bulk MC carbide on the crystallization, so the heterogeneity of carbides is increasing. The tempering hardness of 6Cr6W2MoV steel is 63.5HRC, and when adding an overmany Mo content the maximal hardness arrives to 65HRC. Adding Mo changes the carbide composing, it is conducive to the variety of carbides precipitation strengthening near intermediate temperature and the tempering hardness increasing. When adding an overmany V content the more MC carbide well occupy more amount of C, the tempering temperature dispersion increases too, so the tempering hardness debases deservedly and the highest hardness only reaches HRC60.5.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1267-1272
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1267
• Online since: June 2014
• Authors: Xiao Jing Zhang*, Yong Qing Ma, Yu Fen Liang, Guo Fang Liu
• Keywords: 6Cr6W2MoV Steel, Carbide Composing, Mo Content, Secondary Hardening, Temperature Decentralization, Tempering Hardness, Transformation, Ultra-Fine Carbide, V Contents

References

[1] Ma Yongqing, Liu Guofang, Zhang Xiaojing, The machinery knife of the high alloy tool steel with ultra-fine carbide by hot roll-jointing[P], Changzhou Machinery Blade CO. LTD, November 2010, CN201010538547(in Chinese).

[2] Zhang Xiaojing, LiuGuofang, Ma Yongqing, Material and heat treatment of knives of rotary and plane cutting for wood working[J], Heat Treatment of Metals, 2012, 37(7): 114-117(in Chinese).

[3] Yongqing Ma, Yang Zhang, Yumei Dai, Alloy design and practice of high carbon alloy steels with ultra-fine carbide[J], Advanced Materials Research, 2011, Vols. 295-297, 1479-1484.

DOI: 10.4028/www.scientific.net/amr.295-297.1479

[4] Yongqing Ma, Hongtao Gao, Yufen Liang, Xiaojing Zhang，Secondary hardening during tempering of Cr-W-Mo-V high alloy medium-upper carbon steel and its hardness forecast[J], Advanced Materials Research, 2012, Vols, 415-417, 813-818.

DOI: 10.4028/www.scientific.net/amr.415-417.813

[5] D. V. Shtansky and G. Inden, Phase transformation in Fe-Mo-C and Fe-W-C Steels-I. The structuctural evolution during temerring at 700℃[J], Acta Materialia Vol. 45 n. 7(1997), pp.2861-2878.

DOI: 10.1016/s1359-6454(96)00375-8

[6] D. V. Shtansky and G. Inden, Phase transformation in Fe-Mo-C and Fe-W-C steels-II. Eutectoid reaction of M23C6 carbide decomposition during austenitization [J], Acta Materialia Vol. 45 n. 7(1997), pp.2879-2895.

DOI: 10.1016/s1359-6454(96)00374-6

[7] F. A. Khalid, D. V. Edmonds, Effet of vanadium on the grain boundary carbide nucleeation of pearlite in high-carbon steels[J], Scripta Metallurgica et Materialia, 1994, 30(10), pp.1251-1255.

DOI: 10.1016/0956-716x(94)90254-2

[8] Yang Zhang, Application of phase equilibrium thermodynamic method in alloy design for high carbon alloy steel with ultra fine Carbides[D], Dalian Maritime University, 2007, 6(in Chinese).

[9] Lee K B, Yang H R, Kwon H, Effects of alloying additions and austenitizing treatments on secondary hardening and fracture behavior for martensitic steels containing both Mo and W[J], Metallurgical and Materials Transactions A: 2001, 32(7): 1659-1670.

DOI: 10.1007/s11661-001-0144-4
