Phase Structure and Piezoelectric Properties of (K_0.5Nb_0.5)NbO₃- CaZrO₃ Ceramics

Abstract:

Lead-free piezoelectric ceramics of (1-x)(K_0.5Na_0.5)NbO₃- xCaZrO₃ (abbreviated as KNN-CZ, x = 0 ~ 0.04) were synthesized by the conventional solid state method. Their phase structures and piezoelectric properties were investigated with x-ray diffraction (XRD), Scanning Electron Microscope (SEM), d₃₃ meter and Impedance Analyzer. KNN-CZ samples exhibit only pure perovskite phases with a small monoclinic distortion. It was observed that the lattice parameter b has a maximum at x = 0.02 but the monoclinic distortion angle β shows a minimum at the same composition. From the dependence of the lattice parameters (a, b, c, β) and cell volume on the content of CZ, it is considered that the intermediate phase transition exists near at x = 0.02. Piezoelectric properties show the maximum value of d33 = 121 pC/N and kp = 0.35 for the sample with x = 0.02, which seems to be due to the co-existence of the two different phases.

You might also be interested in these eBooks

Materials Science and Engineering Technology

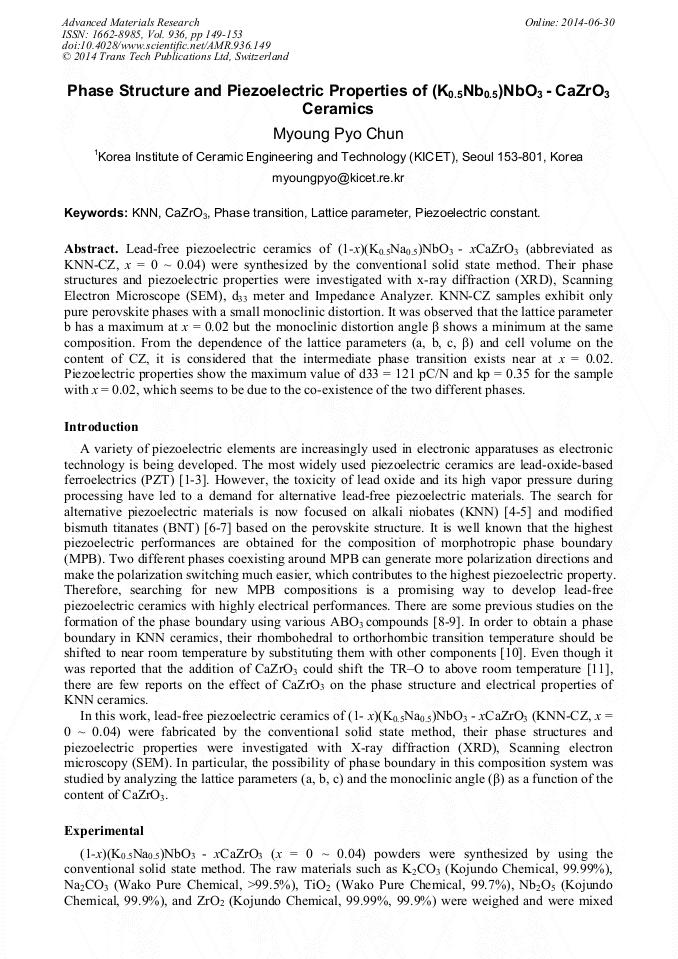

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 936)

Pages:

149-153

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.936.149

Citation:

Cite this paper

Online since:

June 2014

Authors:

Pyo Chun Myoung*

Keywords:

CaZrO₃, KNN, Lattice Parameter, Phase Transition, Piezoelectric Constant

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Tsur, T. D. Dunbar, and C. A. Randall: J. Electroceram. Vol. 7 (2001), p.25.

Google Scholar

[2] G. V. Lewis, and C. R. A: J. Phys. Chem. Sol. Vol. 47 (1986), p.89.

Google Scholar

[3] R. D. Shannon: Acta Crystallogr. A32 (1976), p.751.

Google Scholar

[4] D. Makovec, Z. Smardzija, and M. Drofenik: J. Am. Ceram. Soc. Vol. 87 (2004), p.1324.

Google Scholar

[5] K. J. Park, C. H. Kim, Y. J. Yoon, S. M. Song, Y. T. Kim, and K. H. Hur: J. Eur. Ceram. Soc. Vol. 29 (2009), p.1735.

Google Scholar

[6] Lee J. K., Hong K. S. and Jang J. W. J. Am. Ceram. Soc. 84, (2006), p. (2001).

Google Scholar

[7] Lu H. Y. and Lin M. H: Ceram. Int. Vol. 31 (2005), p.989.

Google Scholar

[8] J.G. Wu, Y.Y. Wang, D.Q. Xiao, J.G. Zhu, P. Yu, L. Wu, and W.J. Wu: Japanese Journal of Applied Physics 46 (2007), p.7375.

Google Scholar

[9] Y. Guo,K. Kakimoto,H. Ohsato: Applied PhysicsLetters 85 (2004), p.4121.

Google Scholar

[10] R.P. Wang, H. Bando, T. Katsumata, Y. Inaguma, H. Taniguchi, M. Itoh: Physica Status Solidi RRL3 (2009), p.142.

Google Scholar

[11] W. Liang, W. Wu, D. Xiao, J. Zhu: Journal of the American Ceramic Society 94 (2011), p.4317.

Google Scholar

[12] Buessem, W. R. and Kahn, M: J. Am. Ceram. Soc. 54 (1971), p.458.

Google Scholar

[13] Park, Y. and Kim, H. G: Ceram. Int. 23 (1997), p.329.

Google Scholar

[14] Barbara Malic, Janez Bernard, Andreja Bencan, Marija Kosec, Journal of the European Ceramic Society 28 (2008), p.1191.

Google Scholar

[15] Chong Zhanga, Zhong Chena, Wei-jing Ji a, Lei Wanga, Y.B. Chenb, Shu-Hua Yaoa, Shan-Tao Zhanga, Yan-Feng Chena, Journal of Alloys and Compounds 509 (2011), p.2425.

Google Scholar

[16] Tao Huang, Dingquan Xiao, Chao Liu, Fangxu Li, BoWu, Jiagang Wu, JianguoZhu, Ceramics International 40 (2014), p.2731.

Google Scholar
