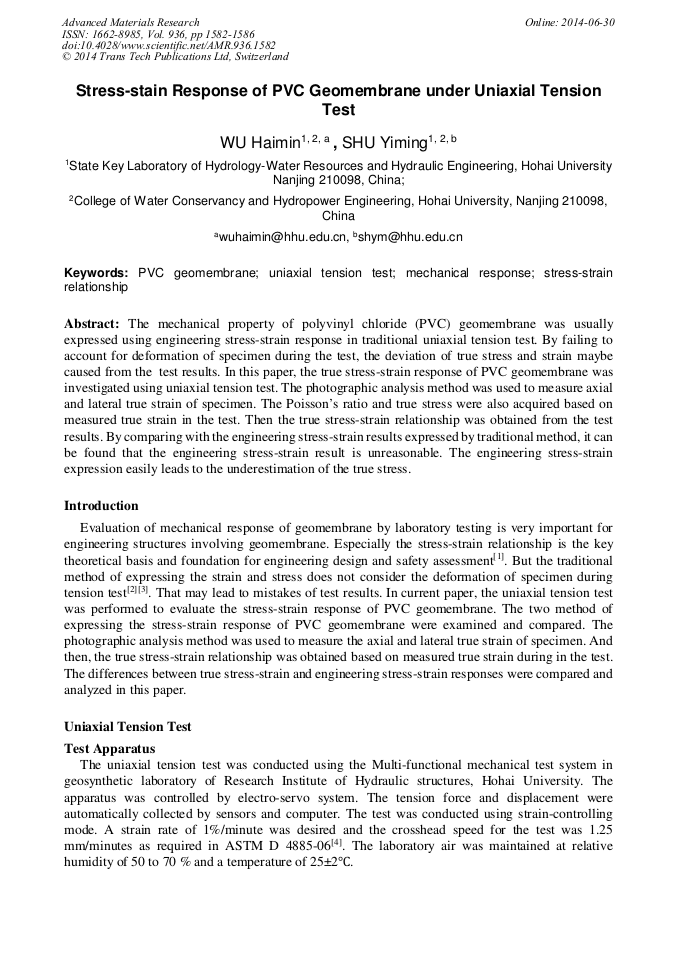

Stress-Stain Response of PVC Geomembrane under Uniaxial Tension Test

Abstract:

The mechanical property of polyvinyl chloride (PVC) geomembrane was usually expressed using engineering stress-strain response in traditional uniaxial tension test. By failing to account for deformation of specimen during the test, the deviation of true stress and strain maybe caused from the test results. In this paper, the true stress-strain response of PVC geomembrane was investigated using uniaxial tension test. The photographic analysis method was used to measure axial and lateral true strain of specimen. The Poissons ratio and true stress were also acquired based on measured true strain in the test. Then the true stress-strain relationship was obtained from the test results. By comparing with the engineering stress-strain results expressed by traditional method, it can be found that the engineering stress-strain result is unreasonable. The engineering stress-strain expression easily leads to the underestimation of the true stress.

• Periodical: Advanced Materials Research (Volume 936)
• Pages: 1582-1586
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.936.1582
• Online since: June 2014
• Authors: Hai Min Wu*, Yi Ming Shu
• Keywords: Mechanical Response, PVC Geomembrane, Stress-Strain Relationship, Uniaxial Tension Test

References

[1] Ministry of Water Resources of the People's Republic of China, 1998. Standard for applications of geosynthetics in hydraulic and hydro-power engineering(SL/T225-98). Beijing: China WaterPower Press. (in Chinese).

[2] Ministry of Water Resources of the People's Republic of China, 2012. Specification for test and measurement of geosynthetics (SL 235-2012). Beijing: China WaterPower Press. (in Chinese).

[3] ASTM, 2001. Standard Test Method for Tensile Properties of Plastics, D638-01.

[4] ASTM, 2006. Standard Test Method for Determining Performance Strength of Geomembranes by the Wide Strip Tensile Method, D4885-06.

DOI: 10.1520/d4885-01r18

[5] Merry, S.M. and Bray, J.D. Geomembrane Response in the Wide Strip Tension Test, Geosynthetics International, 1996, 3(4): 517-536.

DOI: 10.1680/gein.3.0073

[6] J. Wesseloo, A.T. Visser, E. Rust. A mathematical model for the strain-rate dependent stress-strain response of HDPE geomembranes. Geotextiles and Geomembranes, 2004, 22(4): 273-295.

DOI: 10.1016/j.geotexmem.2004.02.002

[7] J.P. Giroud. Poisson's ratio of unreinforced geomembranes and nonwoven geotextiles subjected to large strains. Geotextiles and Geomembranes, 2004, 22(4): 297-305.

DOI: 10.1016/j.geotexmem.2004.02.001
